| Application | The YAD uninsulated OEM lug terminal is constructed of electrolytic copper |
| Barrel Length | 0.31 in |
| Barrel Outside Diameter | 0.26 in |
| Barrel Size | Long |
| Barrel Style | Brazed |
| Brand | Burndy |
| Cable Size | 8 AWG |
| Color | Silver |
| Color Code | None |
| Combo for Heat Shrink | None / Non-Insulated |
| Compatible Grainger Part Number | 22P158, 22P219, 22P221 |
| Compatible Manufacturer Model Number | Y1MRTC, Y8MRB-1 |
| Compatible with Product Type | Code, Flex Cable |
| Compatible with Series | PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT |
| Conductor - Copper Str Size | 8 AWG |
| Conductor Size | 8 AWG |
| Connection Material | Tin Plater Copper |
| Connector Type | YAD |
| Contact Finish | Tin |
| Contact Material | Copper |
| Current Stock | 97 |
| Die Code | 1013 |
| Dimension - B Length inch | 0.31 in |
| Dimension - Bolt Size fraction | #8 |
| Dimension - Hole Size inch | 0.17 in |
| Dimension - L Length Overall mm | 21 mm |
| Dimension - Length Overall inch | 0.83 in |
| Dimension - Outside Diameter inch | 0.26 in |
| Dimension - Pad Width inch | 0.40 in |
| Dimension - Strip Length inch | 44993 |
| Dimension - Stud Size inch | #8 |
| Family Series | Burndy Terminals |
| Feature - Barrel Type | Long |
| For Wire Size | 8 AWG |
| For Wire Sizes | 8 AWG to 8 AWG |
| Gross Weight | 0.0003 lbs |
| Hole Center to End | 0.630" |
| Hole Diameter | 0.17 in |
| Hole Spacing | 0.32 in |
| Industry Standard(s) | UL467 |
| Insulation | None |
| Insulation Color | Bare |
| Insulation Coverage | None |
| Insulation Material | None |
| Insulation Type | Non-Insulated |
| International Shipping | No |

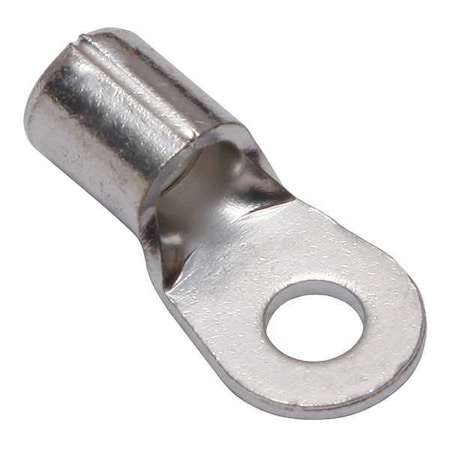

| Item | Uninsulated Compression Terminal |
| Item Number | YAD8CM4E8 |
| Item Type | 3B |
| Lead Time | Expected to ship in 1-2 business days |
| Length | 0.83" |
| Manufacturer | Burndy |
| Manufacturer Part Number | YAD8CM4E8 |
| Material | Electrolytic Copper |
| Material/Composition | Copper |
| Max Conductor Range | 8 AWG |
| Max. Temp. | 302 Degrees F |
| Max. Voltage | 600 V |
| Maximum Operating Temperature | 302 Degrees F |
| Maximum Voltage | 600 V |
| Maximum Wire Size | 8 AWG |
| Min Conductor Range | 8 AWG |
| Minimum Operating Temperature | 302 Degrees F |
| Minimum Wire Size | 8 AWG |
| Mpn | YAD8CM4E8 |
| Net Weight | 0 lbs |
| Number of Holes | 1 |
| Overall Length | 0.83 in |
| Peep Hole | No |
| Plate Material | Tin |
| Plated | Y |
| Plating Type | Tin |
| Ring Width Ranges | 0.26 - 0.50 inches |
| RoHS Compliant | No |
| Seam | Brazed |
| Seam Style | Brazed |
| SKU | ZO-G6094487 |
| Special Features | Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections |
| Standards | UL 467 |
| Standards - Industry Standards Met | UL467 |
| Strip Length | 3/8 in |
| Stud Size | #8 |
| SubCategory | Electrical |
| Terminal Shape | Ring Tongue |
| Termination | Crimp Termination Only |
| Termination Style | Crimp |
| Tongue Length | 0.52 in |
| Tongue Style | Ring |
| Tongue Thickness | 0.04 in |
| Tongue Width | 0.4 in |
| Tongue Width - Wire Connector | 0.4 in |
| UPC | 781810668740 |
| Voltage - Maximum | 600 V |
| Width | 0.4" |
| Wire Range | 8 AWG |
