Burndy YAV28LNT38FX

B00CBNW7KK

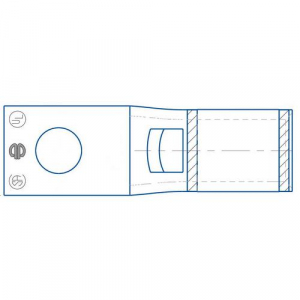

Burndy YAV28LNT38FX One Hole Hylug Flex Conductor Standard Barrel Copper Compression Narrow Tongue Terminal, 4/0 AWG, 4/0 Weld, 550/24 Conductor, 3/8" Stud Hole Size, 0.94" Tongue Width, 2.42" Length, Purple (Pack of 50)

Burndy YAV28LNT38FX One Hole Hylug Flex Conductor Standard Barrel Copper Compression Narrow Tongue Terminal, 4/0 AWG, 4/0 Weld, 550/24 Conductor, 3/8" Stud Hole Size, 0.94" Tongue Width, 2.42" Length, Purple (Pack of 50)zoom

Attributes

Key Value
ApplicationWire Termination
ApprovalsCSA, UL
BrandBurndy-US, a Hubbell af.
Catalog NumberYAV28LNT38FX
Certification - CSA App.Yes
Certification - cULusNo
Certification - UL Reco.No
ColorPurple
Color CodePink
Conductor - Copper DLO .4/0 (275/#24) DLO
Conductor - Copper DLO .4/0 (275/#24) DLO
Conductor - Copper Flex.4/0 AWG
Conductor - Copper Flex.4/0 AWG
Conductor - Copper Flex.4/0 AWG
Conductor - Copper Flex.4/0 AWG
Conductor - Copper Flex.4/0 AWG
Conductor - Copper Flex.4/0 AWG
Conductor - Copper Flex.4/0 AWG
Conductor - Copper Flex.4/0 AWG
Conductor - Copper Flex.4/0 AWG
Conductor - Copper Flex.4/0 AWG
Connector TypeTerminal
Country of OriginUnited States
Country of Origin (subj.United States
Die Index19
Dimension - B Length fr.11/16 in
Dimension - B Length in.0.69 in
Dimension - Bolt Hole S.0.39 in
Dimension - D inch0.83 in
Dimension - L Length Ov.49 mm
Dimension - Length Over.1.94 in
Dimension - N inch0.41 in
Dimension - Outside Dia.0.56 in
Dimension - Pad Width i.0.76 in
Dimension - Strip Lengt.11/16
Dimension - Stud Size i.3/8
Dimension - Z inch0.42 in
Family SeriesBurndy Terminals, YAV-L.
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
Gross Weight0.105 lbs
InsulatedNon-Insulated
Item NumberYAV28LNT38FX
Item TypeYAV-L-NTFX, Standard Ba.
Made in USAYes
ManufacturerBurndy, Burndy, a Hubbe.
Manufacturer Part NumberYAV28LNT38FX
MaterialCopper
Max Temp194 ?F
Net Weight0.105 lbs
Physical Attribute - Nu.1
Physical Attribute - To.Straight
PlatedY
Plating MaterialTin
Plating TypeTin - Electro Plated
Product SeriesYAV-L-NTFX
Rating - KVA35 kV
Rating - Minimum Voltage600
Special FeaturesFeatures: Compression N.
StandardUL 486A-486B
Standards - RoHS Compli.CM
Sub BrandHYLUG,TERMINALS
Terminal MaterialCopper
Terminal TypeBarrel - Standard
Tongue Width0.94 "
UL ListedYes
UPC781810343678
UPC Code781810343678
Voltage - Maximum35000
Voltage Rating35
Volts35,000 V
Wire Strip Length1.06 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Heilind ElectronicsBURYAV28LNT38FX24.422112276Burndy24.4221 @ 1
thumbzoomusmegastore.comYAV28LNT38FX34.541In StockBurndy34.54 @ 1
thumbzoomgordonelectricsupply.comYAV28LNT38FX34.591In StockBURNDY34.59 @ 1
thumbzoomGalcoYAV28LNT38FX-BURN45.23123Burndy0.10545.23 @ 1
us.rs-online.com7149579250.43149BURNDY50.43 @ 1
thumbzoomcrescentelectric.com57311368.161In StockBurndy-US, a Hubbell affiliate68.16 @ 1
thumbzoomZoroG1024381421518.550In Stock59Burndy1518.5 @ 50
