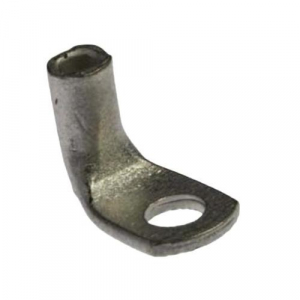

<p><strong>Burndy, YAV4CRS3, 610900 Copper Compression Right Angled Lug, 1 Hole, #4 AWG, #8 - #10 Stud </strong> </p>
Attributes
| Key ^ | Value |
|---|---|
| Certification - CSA Approved, Certification - cULus, Certification - UL Recognized | No |
| Conductor - Copper Str Aircraft Size | AN 4 |
| Conductor - Copper Str Size, Conductor - Copper Str Size Range | 4 |
| Connector Type | Terminal |
| Die Index | 40 |
| Dimension - B Length fraction | 1/2 in |
| Dimension - B Length inch | 0.50 in |
| Dimension - Bolt Hole Size inch | 0.2 in |
| Dimension - G inch | 0.89 in |
| Dimension - Hole Size mm | 5 mm |
| Dimension - L Length Overall mm | 25 mm |
| Dimension - Length Overall inch | 1.00 in |
| Dimension - N inch | 0.25 in |
| Dimension - Outside Diameter inch | 0.39 in |
| Dimension - Pad Width inch | 0.53 in |
| Dimension - Strip Length inch | 1/2 |
| Dimension - Stud Size inch | #8;#9;#10 |
| Dimension - Z inch | 0.28 in |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Material | Copper |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Angle | 90 Degree |
| Physical Attribute - Tongue Type | Ring |
| Plated | Y |
| Plating Type | Tin |
| Standards - RoHS Compliance Status | CM |
| Trade Name | HYLUG? |
| Type | Ring Tongue |
| UL Listed | Yes |
