Burndy YAZV282TC38FX

B00CBNCQMO

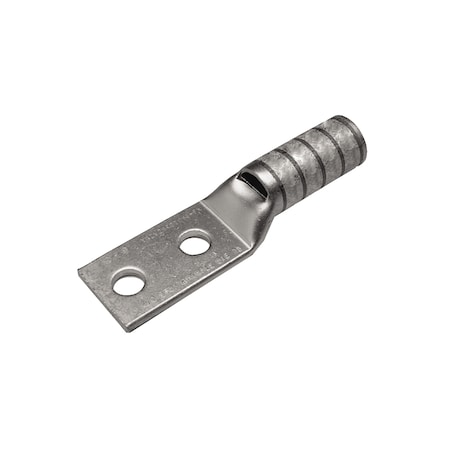

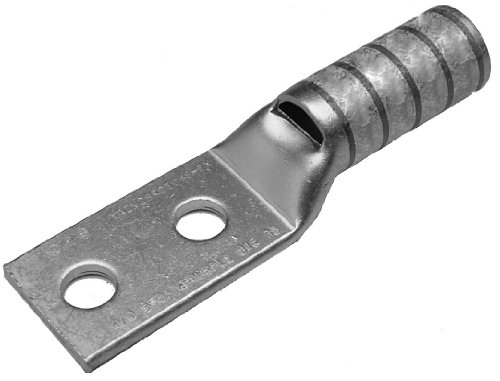

Burndy YAZV282TC38FX Two Hole Hylug Flex Conductor Long Barrel with Inspection Window, 550/24, 4/0 Weld, 4/0 AWG Conductor, 3.96" Length, 3/8" Stud Hole Size, 1.14" Tongue Width,Purple

Burndy YAZV282TC38FX Two Hole Hylug Flex Conductor Long Barrel with Inspection Window, 550/24, 4/0 Weld, 4/0 AWG Conductor, 3.96" Length, 3/8" Stud Hole Size, 1.14" Tongue Width,Purplezoom

Attributes

Key Value
ApplicationWire Termination, For F.
ApprovalsCSA, UL
Bolt Size3/8 in
BrandBurndy-US, a Hubbell af.
Catalog NumberYAZV282TC38FX
ColorPurple
Color CodePurple
Color FamilyPurple
Conductor - Copper DLO .4/0 (550/#24) DLO
Conductor - Copper DLO .4/0 (550/#24) DLO
Conductor - Copper Flex.4/0 AWG
Conductor - Copper Flex.4/0 AWG
Conductor - Copper Flex.4/0 AWG
Conductor - Copper Flex.4/0 AWG
Conductor - Copper Flex.4/0 AWG
Conductor - Copper Flex.4/0 AWG
Conductor - Copper Flex.4/0 AWG
Conductor - Copper Flex.4/0 AWG
Conductor - Copper Flex.4/0 AWG
Conductor - Copper Flex.4/0 AWG
Conductor - Copper Str .4/0 AWG
Conductor - CopperWeld .4/0 E AWG;4/0 EK AWG;4/.
Conductor - CopperWeld .4/0 E AWG-4/0 V AWG
Connector TypeTerminal
Country of OriginUnited States, US - Uni.
Die ColorPurple
Die Index15
Dimension - B Length fr.1-5/8 in
Dimension - B Length in.1.62 in
Dimension - Bolt Hole S.0.39 in
Dimension - Bolt Size f.44993
Dimension - Hole Size i.0.40 in
Dimension - Hole Size mm10 mm
Dimension - L Length Ov.101 mm
Dimension - Length Over.3.96 in
Dimension - Length Side.3.96 in
Dimension - N inch0.41 in
Dimension - Outside Dia.0.77 in
Dimension - Pad Width i.1.14 in
Dimension - Strip Lengt.42380
Dimension - Z inch0.43 in
ECCNEAR99
Family SeriesBurndy Terminals, YAZ-F.
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
FinishTin-Plated
Gross Weight0.201 lbs
InsulatedNon-Insulated
Item NumberYAZV282TC38FX
Item TypeLong Barrel, Skive
Length3.96 in
Lug Wire Size4/0 AWG
Made in USAYes
ManufacturerBurndy, Burndy, a Hubbe.
Manufacturer Part NumberYAZV282TC38FX
MaterialCopper
Max Temp194 ?F
Net Weight0 lbs
Outside Diameter0.77 in
Physical Attribute - Nu.2
Physical Attribute - To.Straight
PlatedY
Plating MaterialElectro-Tin
Plating TypeTin
Product SeriesYAZ-FX
Rating - Minimum Voltage600
Special FeaturesFeatures: UL Listed 90 .
StandardUL 486A-486B
Stud Hole Spacing1 in.
Stud Size3/8 in.
Stud Spacing1
Sub BrandHYLUG
Terminal MaterialCopper
Terminal TypeBarrel - Long, Two Hole
Tongue Width1.14 "
Trade NameHYLUG?
TypeLong Barrel, Skive
UNSPSC39121405
UPC781810135341
Voltage Rating35
Volts600 V
Wire Size4/0 AWG
Wire Size (AWG)4/0 AWG
Wire Strip Length1.6875 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.comYAZV282TC38FX25.41In StockBurndy25.4 @ 1
Graybar9950521026.1072128Burndy26.1072 @ 1
thumbzoomGalcoYAZV282TC38FX-BURN35.981In StockBurndy0.20135.98 @ 1
thumbzoomKelly HayesYAZV282TC38FX36.321In StockBurndy36.32 @ 1
thumbzoomcrescentelectric.com7717054.211818Burndy-US, a Hubbell affiliate54.2 @ 1
thumbzoomZoroG0662454129.955In StockBurndy129.95 @ 5
