Burndy YE31P50X100

B00CBKX8T2

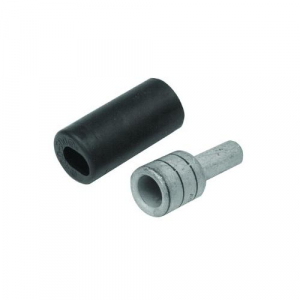

Burndy YE31P50X100 Copper Compression Adaptor, 3.80" Length, 0.88" OD, for AWG Conductor

Burndy YE31P50X100 Copper Compression Adaptor, 3.80" Length, 0.88" OD, for AWG Conductorzoom

Attributes

Key Value
Color CodeRed
Conductor - Copper Flex.350 kcmil
Conductor - Copper Flex.350 kcmil
Conductor - Copper Flex.350 kcmil
Conductor - Copper Flex.350 kcmil
Conductor - Copper Flex.350 kcmil
Conductor - Copper Str .350 kcmil
Conductor - Copper Str .350 kcmil
Connector TypePin Terminal
Die Index18
Dimension - A Outside D.0.51 in
Dimension - B Length fr.2-3/8 in
Dimension - B Length in.2.39 in
Dimension - B Outside D.0.88 in
Dimension - Inside Diam.0.7 in
Dimension - L Length Ov.97 mm
Dimension - Length Over.3.80 in
Dimension - Outside Dia.0.88 in
Dimension - P inch1.00 in
Dimension - Strip Lengt.2-3/4 in
Equivalent Cross Pin Si.0.5 in. - 250 kcmil
Equivalent Pin Size250 kcmil
Feature - Barrel StyleChamfered
InsulationY
Item Type3B
MaterialCopper
Pin TypeStraight
PlatedYes
Plating TypeTin plated
Rating - KVA35 kV
Rating - Minimum Voltage600
TypeCopper Pin Adapters
Voltage - Maximum35000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMegadepotYE31P50X100113.41In StockBurndy113.4 @ 1
thumbzoomgordonelectricsupply.comYE31P50X100133.641In StockBURNDY133.64 @ 1
