mpn:
brand:
manufacturer:
MPN:
Weight:
0.000146666666667
Weight:
0.000146666666667 LB
Preferred Price:
1720.44
Price:
1720.44
Min Simple Price:
0.324
Absolute Min Price:
1380.23
Min Price:
1380.23
Dimensions:
[4.0, 4.0, 2.0]
qty:
1
simpleSku:
jk3ODM:::TR/3216FF500-R
sku:
jk3ODM::3V:TR/3216FF500-R@x3000
condition:
11
seller:
Onlinecomponents.com
amzMan:
bussmann
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Alternate Part No. | 504-TR/3216FF500-R |
| Approval Agency | CSA, UL |
| Brand | Bussmann / Eaton |
| Breaking Capacity @ Rated Voltage | 50A |
| Case Height | 0.89 mm |
| Case Length | 3.2 mm |
| Case Width | 1.6 mm |
| Category | Circuit Protection |
| Color | - |
| Current Rating | 0.5 A |
| Current Rating, Current Rating (Amps) | 500 mA |
| DC Cold Resistance, DC Resistance | 0.98 Ohms |

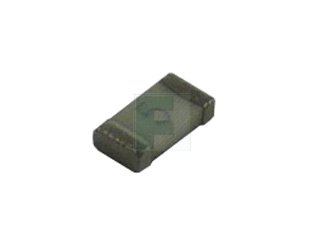

| Description | FUSE BRD MT 500MA 32VAC 63VDC |
| Detailed Description | 500 mA 32 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric) |
| Digi-Key Part Number | 283-2539-2-ND - Tape & Reel (TR) |
| Dimensions | 0.126 x 0.035 x 0.063 in, 3.2 mm L x 1.6 mm W |
| Fuse Size/Group, Package / Case | 1206 (3216 Metric) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Fuse Type, Response Time | Fast Blow |
| Interrupt Rating | 50 Amps |
| Manufacturer | Eaton |
| Manufacturer Part No., Manufacturer Product Number | TR/3216FF500-R |
| Manufacturer Standard Lead Time | 9 Weeks |
| Manufacturer, Mfr | Eaton - Electronics Division |
| Melting I?t | 0.0019 |
| Mounting Type | PCB Mount, Surface Mount |
| Operating Temperature | -55?C ~ 125?C |
| Operating Temperature Range | - 65 C to + 125 C |
| Package | Tape & Reel (TR) |
| Packaging | Reel |
| Part # Aliases | TR-3216FF500-R |
| Primary Type | Single Use Fuses |
| Product Status | Active |
| Product Type | Surface Mount Fuse |
| Product, Product Category | Surface Mount Fuses |
| Resistance | 980 mOhms |
| Series | 3216FF Series, Chip 3216FF, 3216FF |
| Size / Dimension | 0.126" L x 0.063" W x 0.035" H (3.20mm x 1.60mm x 0.90mm) |
| Speed | Fast Acting |
| Termination | PCB ; Surface Mount |
| Type | PCB Mounted Fuses, Chip Fuse Fast Acting |
| Unit Weight | 453.592 mg |
| Voltage Rating - AC, Voltage Rating AC | 32 V |
| Voltage Rating - DC, Voltage Rating DC | 63 V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Hotenda | H571150 | 0.33138 | 0.33138 | 1 | 301 | Eaton (formerly Cooper Bussmann) | 0.33138 @ Qty: 1+ | |||
 | AI Consolidated | TR-3216FF500-R-BUSSMANN | 0.37 | 0.37 | 1 | 270 | Bussmann Eaton Cooper Fuses | 0.01 | 0.37 @ Qty: 1+ | |
| Future Electronics | 4725925 | 0.384 | 461.0304 | 3000 | 6000 | Eaton | 0.384 @ Qty: 3000+ | |||
| Onlinecomponents.com | TR/3216FF500-R | 0.419 | 0.419 | 1 | 994 | BUSSMANN / EATON | 0.419 @ Qty: 1+ | |||
| Waldom | Eaton Electronics TR/3216FF500-R | 0.56 | 21.616 | 95 | 6000 | Eaton Electronics | 0.56 @ Qty: 95+ | |||
| RS Delivers | 852-7247 | 0.768 | 0.768 | 1 | 301 | Eaton Bussmann Series | 0.768 @ Qty: 1+ | |||
 | Digi-Key | 724105 | 0.8 | 0.8 | 1 | 5978 | Eaton - Electronics Division | 0.8 @ Qty: 1+ | ||
 | Newark | 93K3691 | 0.92 | 2.392 | 5 | 108 | EATON BUSSMANN | 0.92 @ Qty: 1+ | ||
 | Radwell | TR3216FF500R | 1.2 | 1440.72 | 3000 | 301 | BUSSMANN FUSETRON | 1.2 @ Qty: 3000+ | ||
| swatee.com | TR/3216FF500-R | 1.24 | 1.24 | 1 | 258 | Eaton | 1.24 @ Qty: 1+ | |||
| us.rs-online.com | 70149644 | 1.54 | 1.54 | 1 | 473 | Eaton Electronics | 1.54 @ Qty: 1+ |
