mpn:
brand:
manufacturer:
MPN:
Description:

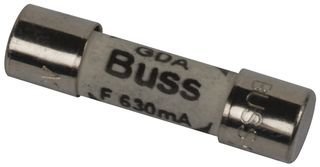

BUSSMANN BY EATON BK/GDA-630MA FUSE, CARTRIDGE, 630mA, 5X20MM, FAST ACT (1 piece)
Attributes
| Key ^ | Value |
|---|---|
| AC Voltage Rating | 250V AC |
| Alternate Part No. | 504-GDA-630MA |
| Amperage Rating:, Current Rating, Current Rating (Amps) | 630 mA |
| Amps | 0.630, 630mA |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems, Electronic circuits |
| Approval Agency | CSA, UR |
| ASIN | B00FV20HZU |
| Body Material, Material | Ceramic |
| Body Style | Cylindrical |
| Brand | Bussmann / Eaton, Eaton Bussmann series |
| Brand, Manufacturer | Eaton Bussmann |
| Breaking Capacity @ Rated Voltage, Interrupt Rating AC | 1.5kA |
| Case Diameter | 5.2 mm |
| Case Length, Length, Length (Straight Wireway) | 20 mm |
| Catalog Number, Item Number, Manufacturer Part Number, Manufacturer Product Number, Mpn | GDA-630MA |
| Category | Circuit Protection, Ceramic Fuses |
| Color, Operating Temperature | - |
| Compatible Fuse Block Series | HTB |
| Connection, Connection:, End Type | Ferrule End X Ferrule End |
| Country of Origin | CN - China, China, CN |
| Current Rating | 0.63 A |
| Current Stock | 97 |
| DC Cold Resistance | 0.34 Ohms |
| DC Voltage Rating | Not Rated |
| Description | FUSE CERAMIC 630MA 250VAC 5X20MM |
| Detailed Description | 630 mA 250 V AC DC Fuse Cartridge, Ceramic Requires Holder 5mm x 20mm |
| Diameter | 5 mm |
| Digi-Key Part Number | GDA-630MA-ND |
| Dimensions | 0.5625 x 2 in, 20 mm L x 5.2 mm D |
| ECCN | EAR99 |
| Element | Single |
| Equivalent Brand and Series | Bussmann GDA, Bussmann S501, Littelfuse 216, Mersen GSD |
| Equivalent Series | 216, GDA, GSD, S501 |
| Family Series | Bussmann Miscellaneous |
| Fits Fuse Block Style | Nonrejection |
| Frequency Rating, Frequency Rating: | 50 Hz |
| Functionally Equal To | Littelfuse 216, Mersen/Ferraz Shawmut GSD |
| Fuse Amps | 0.630A |
| Fuse Dimension | 20 L x 5 mm Dia. |
| Fuse Interrupt Rating | 1.5kA at 250VAC, 15kA at 250 V ac |
| Fuse Size | 20mm L x 5mm dia |
| Fuse Size/Group | 5 mm x 20 mm |
| Fuse Speed, Speed | Fast Acting |
| Fuse Type | Cartridge, Ceramic |
| Fuse Type, Response Time | Fast Blow |
| Gross Weight | 0.0706 lbs |
| Height, Width | 0.1969 in. |
| Indicating / Nonindicating, Visual Indication | Nonindicating |
| Indicator Style | Without Indicator |
| International Shipping, Made in USA | No |
| Interrupt Rating | 1.5kA at 250V AC, 1.5 kA, 1.5 kAIC at 250 Vac |
| Item | Fuse |
| Item Package Quantity | 1 |
| Item Type | Fast-acting fuse |
| Lead Time | Expected to ship in 1-2 business days |
| Length | 0.7874 in. |
| Manufacturer | Eaton, Cooper Bussmann, Bussmann |
| Manufacturer Part No., Part Number | BK/GDA-630MA |
| Manufacturer Standard Lead Time | 9 Weeks |
| Manufacturer, Mfr | Eaton - Electronics Division |
| Material | Ceramic tube|Nickel-plated brass end cap construction, Ceramic Tube, Nickel-Plated Brass Endcap |
| Melting I?t | 0.064 |
| Mounting | Cartridge |
| Mounting Style | Holder / Clip |
| Mounting Type | Requires Holder |
| Net Weight | 0.005 lbs |
| Opening | Fast-Acting |
| Package / Case | 5mm x 20mm |
| Package, Packaging | Bulk |
| Part # Aliases | BK-GDA-630MA |
| Product | Specialty Fuses |
| Product Category | Cartridge Fuses |
| Product Status | Active |
| Product Type | Ceramic Fuse |
| Rated Voltage | 250V ac/32V dc |
| Resistance | 340 mOhms |
| Series | GDA |
| Shape | Rectangular |
| Size / Dimension | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
| Size, Size: | 5.20 mm Diameter X 20.00 mm Height |
| SKU | ZO-G0579801 |
| Special Features | High Breaking Capacity, Interrupt Rating 1500 Amp at 250 Vac, Material Ceramic Tube, Nickel Plated Brass Endcap |
| Standard | VDE,CCC Marked,CE Marked |
| Standard: | UL, CSA |
| Standards | CE, CSA Certification File 53787, UL Guide JDYX2, UR |
| Sub Brand | Bussmann Series |
| SubCategory | Electrical |
| Termination Style | Clip |
| Type | Fast Acting High Breaking Capacity Fuse |
| Type: | Electronic, Fast Acting |
| Unit Weight | 1.361 g |
| UNSPSC | 39121611 |
| UPC | 051712431279 |
| Voltage Rating | 250 Vac, 32 Vdc (self certified) |
| Voltage Rating - AC, Voltage Rating AC | 250 V |
| Voltage Rating: | 250 VAC |
| Volts AC | 250 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Verical | BK/GDA-630MA | 0.146 | 44.5008 | 12 | 500 | Cooper Bussmann | 0.146 @ Qty: 500+ | |||
 | Kelly Hayes | GDA-630MA | 1.54 | 462.616 | 1 | 500 | EATON BUSSMANN | 1.54 @ Qty: 500+ | ||
| Radwell | GDA-630MA | 1.73 | 519.692 | 1 | 500 | BUSSMANN | 1.73 @ Qty: 500+ | |||
 | turtle.com | BUS GDA-630MA | 3.16 | 949.264 | 1 | 500 | Eaton | 3.16 @ Qty: 500+ | ||
 | AI Consolidated | GDA-630MA-BUSSMANN | 3.27 | 982.308 | 1 | 500 | Bussmann Eaton Cooper Fuses | 0.01 | 3.27 @ Qty: 500+ | |
| Dale-Electric | GDA-630MA | 3.44 | 1033.376 | 1 | 500 | Cooper Bussmann | 3.44 @ Qty: 500+ | |||
 | swatee.com | BK/GDA-630MA | 3.5 | 1051.4 | 1 | 500 | Eaton | 3.5 @ Qty: 500+ | ||
| RS Delivers | 849-6033 | 3.5388 | 1063.05552 | 1 | 500 | Eaton | 3.5388 @ Qty: 500+ | |||
| Mouser | 504-GDA-630MA | 4.4 | 1321.76 | 1 | 500 | Cooper Bussmann | 4.4 @ Qty: 500+ | |||
 | Galco | GDA-630MA-BUSS | 4.44 | 1340.88 | 5 | 500 | Bussmann | 0.0706 | 4.44 @ Qty: 500+ | |
| Waldom | Eaton Electronics GDA-630MA | 5.08 | 1546.352 | 11 | 500 | Eaton Electronics | 5.08 @ Qty: 500+ | |||
| Onlinecomponents.com | GDA-630MA | 5.27 | 1589.432 | 4 | 624 | Cooper Bussmann | 5.27 @ Qty: 500+ | |||
| steinerelectric.com | 5052 | 5.73 | 1721.292 | 1 | 500 | Edison | 5.73 @ Qty: 500+ | |||
| us.rs-online.com | 70150885 | 6.63 | 1991.652 | 1 | 500 | Eaton Electronics | 6.63 @ Qty: 500+ | |||
 | Digi-Key | 7718249 | 6.794 | 2051.788 | 5 | 500 | Eaton - Electronics Division | 6.794 @ Qty: 500+ | ||
| AmazonSC | B00FV20HZU | 6.84 | 2054.736 | 1 | 500 | Cooper Bussmann | 6.84 @ Qty: 500+ | |||
 | crescentelectric.com | 33145 | 7.24 | 2174.896 | 1 | 500 | Eaton Bussmann series | 7.24 @ Qty: 500+ | ||
 | Platt.com | 0731493 | 7.51 | 2256.004 | 1 | 500 | Eaton/Bussmann Series | 7.51 @ Qty: 500+ | ||
| Graybar | 88050969 | 8.0752 | 2438.7104 | 5 | 500 | Bussmann (Eaton) | 8.0752 @ Qty: 500+ | |||
 | National Supply Network | 74973736 | 9.48998 | 2865.97396 | 5 | 500 | Cooper Bussmann | 9.48998 @ Qty: 500+ | ||
| Newark | 27P4063 | 11.95 | 3642.36 | 12 | 500 | EATON BUSSMANN | 11.95 @ Qty: 500+ | |||
 | Zoro | G0579801 | 12.69 | 3812.076 | 1 | 500 | Eaton Bussmann | 0.01 | 12.69 @ Qty: 500+ | |
 | simsupply.com | ZO-G0579801 | 20.99 | 6305.396 | 1 | 500 | Eaton Bussmann | 20.99 @ Qty: 500+ | ||
| standardelectricsupply.com | 7806 | 25.65 | 7705.26 | 1 | 500 | Bussmann | 25.65 @ Qty: 500+ | |||
 | Carlton Bates Company | 05171243127 | 26.45 | 7945.58 | 1 | 500 | EATON BUSSMANN SERIES | 26.45 @ Qty: 500+ | ||
 | sustainablesupply.com | C1164491 | 31.55 | 9477.62 | 1 | 500 | Eaton | 0.01 | 31.55 @ Qty: 500+ | |
 | kempstoncontrols.co.uk | GDA-630MA | 32.380803 | 9727.1932212 | 1 | 500 | Bussmann | 32.380803 @ Qty: 500+ | ||
 | Raptor Supplies | AA9BWC | 52.783614 | 15856.1976456 | 1 | 500 | BUSSMANN | 52.783614 @ Qty: 500+ | ||
| AmazonTP | B07S2BY2D5 | 53.55 | 16086.42 | 1 | 500 | 3 | Bussmann / Eaton | 53.55 @ Qty: 500+ |
