Description:

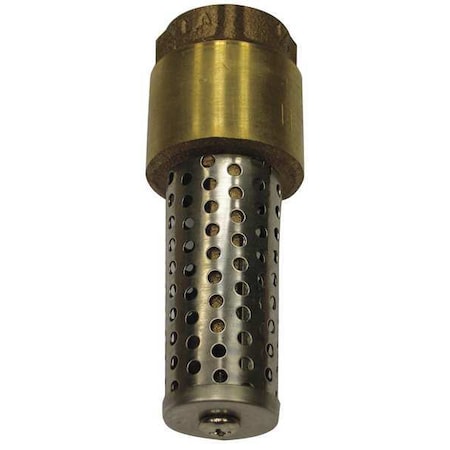

Item - Foot Valves Foot Valve, Flow Design Single, Design Spring, Application - Valves Pumps, Valve Body Design Inline, Body Material - Valves Brass, Strainer Material Stainless Steel, Pipe or Tube Size - Valves 3/4 in, Connection Type - Valves FNPT x FNPT, Max. Steam Pressure - Valves Not Rated, Max. Water Pressure - Valves 200 psi, Cracking Pressure - Valves 0.5 psi, Min. Temp. - Valves 35 Degrees F, Max. Temp. - Valves 158 Degrees F, Mounting Orientation - Valves Horizontal, Vertical
Attributes
| Key ^ | Value |
|---|---|
| Body Material | Lead-Free Red Brass |
| Body Material - Valves, Sub-Category | Brass |
| Connection Type | FNPT |
| Design - Foot Valves | Spring |
| Flow - Valves | 13.0 gpm |
| Flow Design | Single |
| Item | Spring Foot Valve |
| Length | 3 3/4 in |
| Material of Construction | Low Lead Brass |
| Max. Pressure | 200 psi WOG |
| Max. Water Pressure | 200PSI |
| Min. Temp. - Valves | 35 Degrees F |
| Mounting Position | Vertical or Horizontal |
| Overall Height, Width | 1 1/2 in |
| Pipe or Tube Size - Valves | 3/4 in |
| Pipe Size, Size | 3/4" |
| Seat Material | Unleaded Bronze |
| Spring Material, Strainer Material - Foot Valves | Stainless Steel |
| Standards | ASTM B62 |
| Valve Body Design | Inline |
