Description:

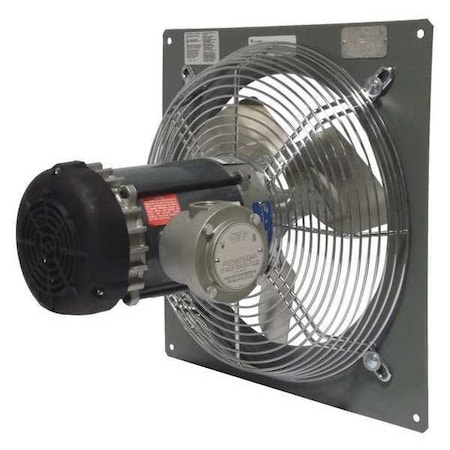

Panel Mounted Hazardous Location Exhaust Fan, Assembled Assembled, Blade Diameter 14 in, Blade Material Aluminum, Control Type Toggle Switch, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 2,190 cfm, For Cut-Out Height 18 in, For Cut-Out Width 18 in, Frame Finish Powder Coated, Frame Material Steel, Guard Finish Chrome, Guard Material Steel, Guard Type Intake, Hazardous Location Class Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
Attributes
| Key ^ | Value |
|---|---|
| Agency Compliance | cETLus |
| Assembled | Assembled |
| Bearing Type | Ball |
| Blade Dia., Blade Diameter | 14 in |
| Blade Material, Propeller Material | Aluminum |
| CFM @ 0.000-In. SP, Exhaust Airflow @ 0.000 in SP, Maximum Airflow, Supply Airflow @ 0.000 in SP | 2,190 cfm |
| CFM @ 0.125-In. SP, Exhaust Airflow @ 0.125 in SP | 2,000 cfm |
| CFM @ 0.250-In. SP, Exhaust Airflow @ 0.250 in SP | 1,950 cfm |
| Control Type | Toggle Switch |
| Dimension A (In.), Height (In.), Outside Dia. (In.), Overall Diameter, Overall Height, Overall Width, Width (In.) | 19 1/4 in |
| Dimension B (In.), Max. Depth (In.), Overall Depth | 13 3/4 in |
| Dimension C (In.), Dimension D (In.), For Cut-Out Diameter, For Cut-Out Height, For Cut-Out Width, Inside Dia. (In.), Mounting Holes O.C. (In.) | 18 in |
| Discharge Direction, Mounting Orientation, Mounting Position | Horizontal |
| Drive Package Included, Drive Package With Motor Included, Includes Dehumidistat, Includes Grill, Includes Motor, Speed Controllable | No |
| Drive Type | Direct Drive |
| Duct Diameter, Duct Height, Duct Shape, Duct Width | Not Applicable |
| Electrical Connection | Hardwired |
| Exhaust Airflow @ 0.100 in SP | 2,080 cfm |
| Exhaust/Supply Fan Item | Exhaust Fan |
| Exhaust/Supply Fan Motor HP, Motor Horsepower | 1/3 hp |
| Fan Style | Panel |
| Fan Voltage, Nameplate Voltage, Nominal Voltage | 115/208-230V AC |
| Flange Width (In.) | 1 1/2 in |
| For Use With | General Ventilation Applications, Hazardous Locations, Explosion Proof, Panel Mounted Exhaust Fan |
| Frame Finish | Powder Coated |
| Frame Material, Guard Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 6.6/3.1-3.3 |
| Guard Finish | Chrome |
| Guard Type | Intake |
| Hazardous Location Class | Class I, Div 1, Group C and D; Class II, Div 1, Group F and G |
| Housing Finish | Powder-Coated |
| Hz | 60 |
| Includes | Aluminum Blades, EPFC Motor Enclosure, Explosion Proof Motor, Powder Coated Steel Housing, Wire Chrome Plated Guard |
| Item | Panel Mounted Hazardous Location Exhaust Fan |
| Manufacturer Warranty Length | 1 yr |
| Max. Ambient Temp. (F) | 104 Degrees F |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Maximum Exhaust Airflow @ 0.000 in SP | 0 to 10,000 cfm |
| Maximum Noise Level, Noise Level @ 0.100 in SP @ 5 ft | 15 sones |
| Method of Construction | Stamped |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Enclosure Design | Totally Enclosed Air Over (TEAO) |
| Motor Insulation | Class B |
| Motor RPM, Motor Speed | 1,725 RPM |
| Motor Speed Range | 1601 to 1800 RPM |
| Motor Type, Type | Explosion Proof |
| Number of Blades | 3 |
| Number of Fans, Number of Speeds, Phase | 1 |
| Shaft Dia. (In.), Shaft Diameter | 1/2 in |
| Sones @ 0.000-In. SP @ 5 Ft. | 15 |
| Vent Design | Ductless |
| Ventilation Type | Exhaust |
| Venturi Clearance Dia. (In.), Venturi Diameter | 1/8 in |
| Venturi Depth (In.) | 5/8 in |
| Wattage, Watts | 250 W |
