| Agency Compliance | 3A |
| Basic Gauge Case Material | Plastic |
| Basic Gauge Wetted Parts | Stainless Steel |
| Calibration Certificate | yes |
| Case Color | Gray |
| Case Material | ABS Polycarbonate |
| Country of Origin (subject to change) | United States |
| Digital Gauge Accuracy | +/-0.25% |
| Digital Gauge Display Units, Display Units | psi |

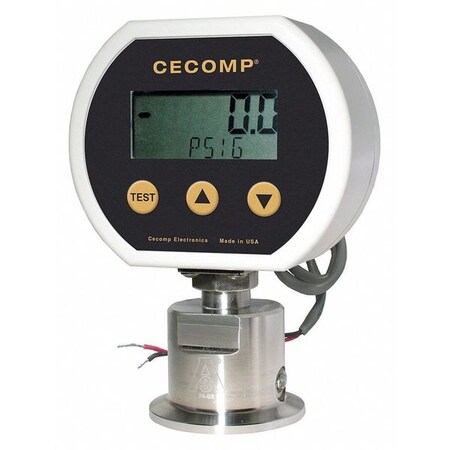

| Digital Gauge with Transmitter Type, Item | Digital Sanitary Compound Gauge with Transmitter |
| Display | LCD |
| Features | Seal NEOBEE M20 Fill, Password Protection for Calibration, 4 to 20mA Output, Loop Powered |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1-1/2" |
| Gauge Connection Type | Triclamp |
| Gauge Nominal Dial Size | 3" |
| Gauge Operating Temp. Range | -4 Degrees to 185 Degrees F |
| Gauge Primary Range Units | psig |
| Gauge Primary Range Values | -15 to 0 to 15 |
| Gauge Transmitter Required Power, Powered By | 8 to 32VDC |
| Includes | Instructions and Connection Diagram |
| Manufacturers Warranty Length | 1 yr. |
| Number of Display Digits | 4 |
| Output | 4 to 20ma |
| Range | +/-15 psig |
| Resolution | 0.010 psi |
| Series | DSGL3 |
| Socket Material | 316L Stainless Steel |
