Description:

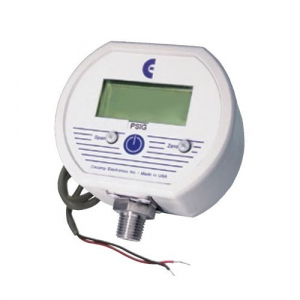

<p><strong>Cecomp Electronics, F4AD-1V14BARG-CC, F4AD Low Voltage Powered Digital Pressure Gauge with Moisture Resistant Circuit Board Coating, -1.01-14 Bar, Reference Pressure </strong> </p> <p><strong>Features: </strong> </p> <ul><li>316L Stainless Steel Wetted Parts </li> <li>Ruggedized Design, Simple Operation </li> <li>Ideal for permanent installation where gauge is on at all times </li> </ul>
Attributes
| Key ^ | Value |
|---|---|
| Bar | ?1.01-14 bar |
| Compensated range | 32 to 158?F (0 to 70?C) |
| Connection and Material | 1/4" NPT male fitting, 316L stainless steel All wetted parts are 316L stainless steel |
| Display | 3.5 digit (1999) LCD, 0.5" H digits |
| Housing Material | UV stabilized ABS/polycarbonate NEMA 4X case, clear polycarbonate display window, polycarbonate front label, rear gasket, six captive stainless steel cover screws |
| Operating temperature | -40 to 185?F (-40 to 85?C) |
| PSI | -14.7-203 |
| Shipping weight | 1 pound |
| Standard accuracy | ?0.25% of full scale ?1 least significant digit |
| Storage temperature | -40 to 203?F (-40 to 95?C) |
| Weight Approximately | 9.5 ounces |
