A. O. Smith 925AL

B007ATNELQ

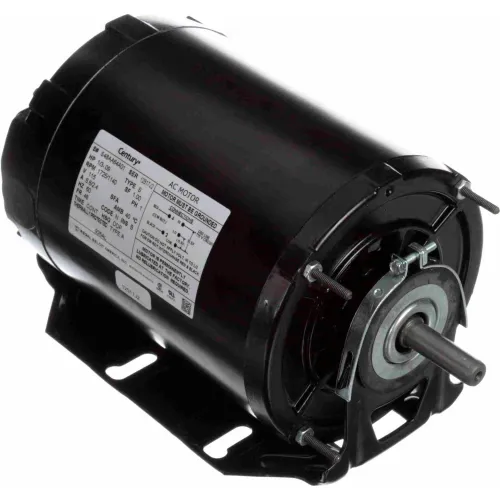

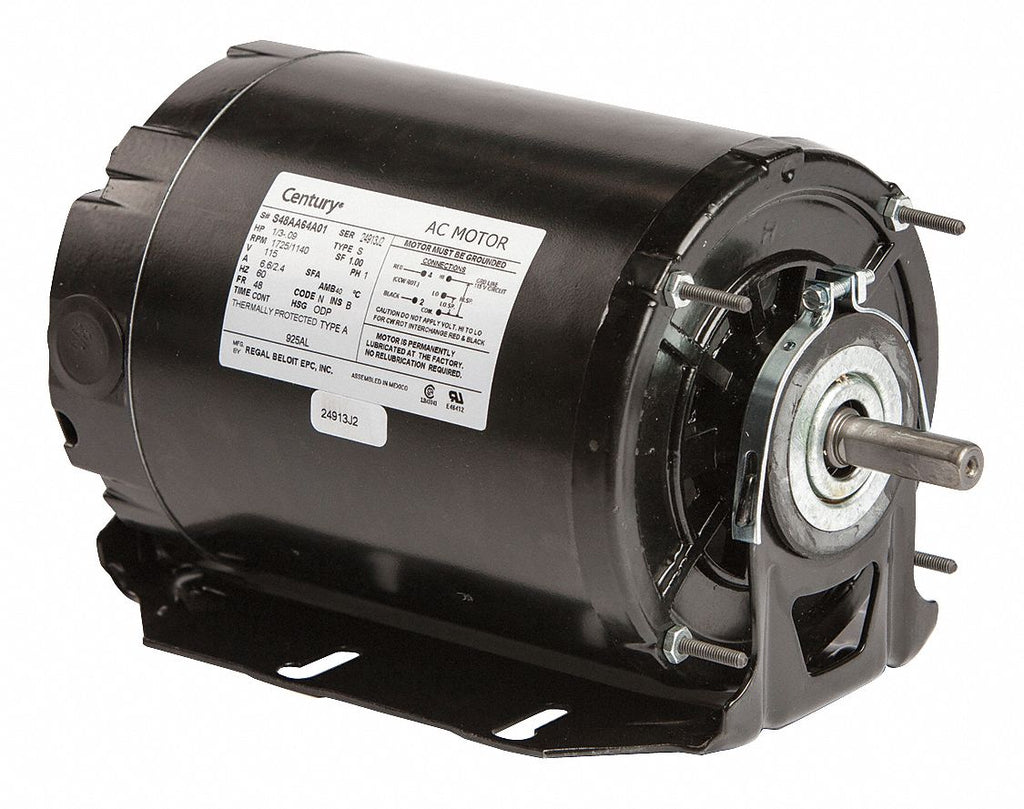

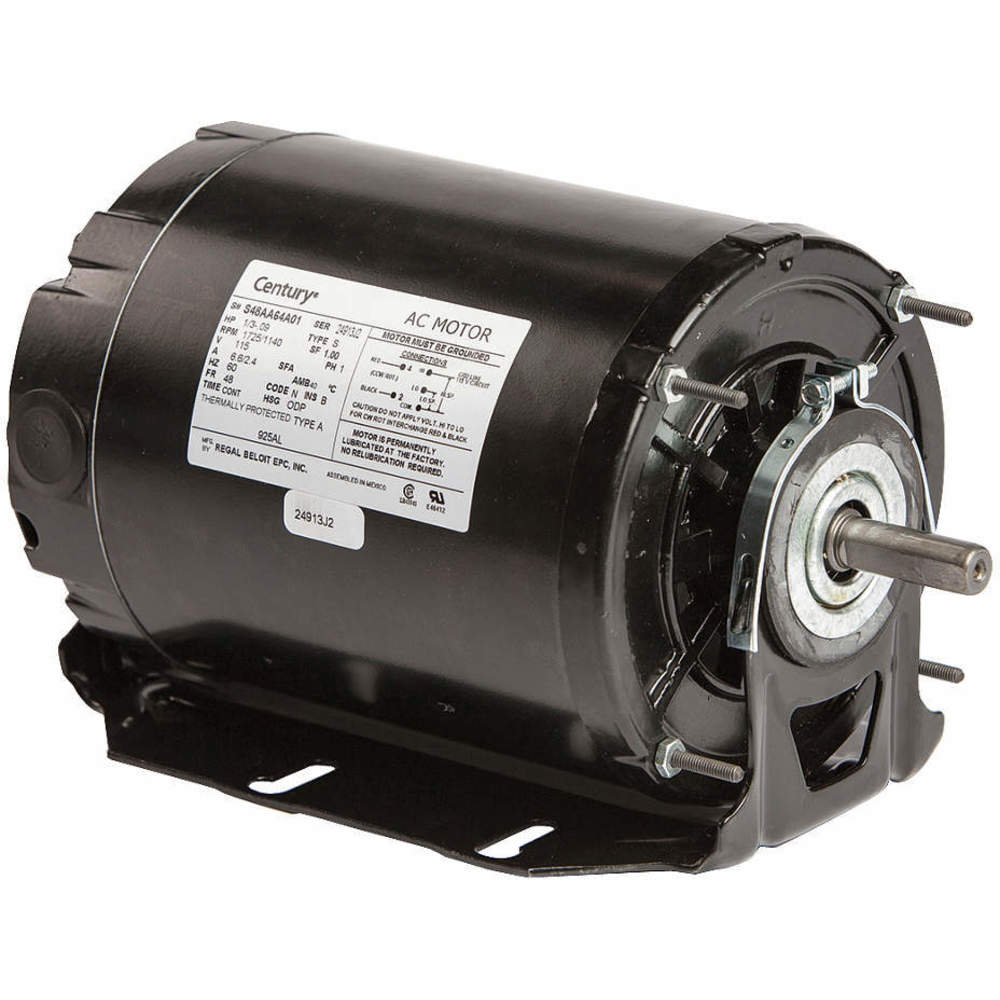

A.O. Smith 925AL 1/3-1/11 hp, 1725/1140 RPM, 115 volts, 48 Frame, ODP, Ball Bearing Belt Drive Blower Motor

A.O. Smith 925AL 1/3-1/11 hp, 1725/1140 RPM, 115 volts, 48 Frame, ODP, Ball Bearing Belt Drive Blower Motorzoom

Attributes

Key Value
925AL is listed in Cent.A.O. Smith 193953, A.O..
Amps6.6/2.4
BearingsBall
Body Dia.5 5/8 in
BrandCentury
CategoryElectric Motor
Current Stock9
DutyContinuous
Duty CycleContinuous
EnclosureODP
Enclosure TypeODP (Open Dripproof)
Frame48
Frame RemarksDOUBLE SPEED, Resilient.
Full Load Amps6.6/2.4
HP0.33/0.09, 1/11, 1/3, 1.
Hz60
Ins. ClassB
Insulation ClassB
International ShippingNo
ItemBelt Drive Motor
Item ConditionFACTORY NEW
Lead TimeExpected to ship in 1-2.
Length Less Shaft8 3/4 in
ManufacturerCentury
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationHVAC/R
Motor BearingsBall
Motor DesignSplit-Phase
Motor Diameter5-5/8"
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionAll Angle
Motor Mounting TypeCradle Base
Motor Service Factor1
Motor Shaft RotationCW/CCW
Motor Sub ApplicationBelt Drive Fan/Blower
Motor Thermal ProtectionAuto
MountingCradle/Stud
mountingResilient Base
Mpn925AL
Nameplate RPM1,725/1,140
No. of Speeds2
Number of Speeds2
Overall Length10 5/16 in
Phase1, Single
Product TypeSplit Phase
Resilient Ring Dia.2 1/2 in
Ring to Ring Center8 3/16 in
RotationReversible
RPM1800/1200, 1140/1725, 1.
RPM Range1,701-1,800
Service Factor (SF)1.00
Shaft Dia.1/2 in
Shaft Diameter1/2"
Shaft Length1-9/16", 1 9/16 in
Ship Weight18 lbs.
SKUZO-G1060701
StandardsUL Recognized (E46412),.
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
Usable @ 200VNo
Usable @ 208VNo
Voltage115, 115V AC
Voltage Compatibility115/208-230V AC, 115/23.
Volts115
Weight18 lb
