A. O. Smith 9422V1A

mpn9422V1A
brandname: Century
manufacturername: Century

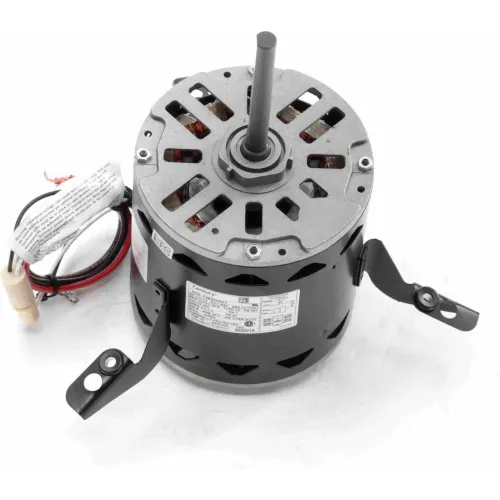

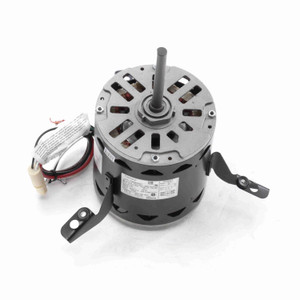

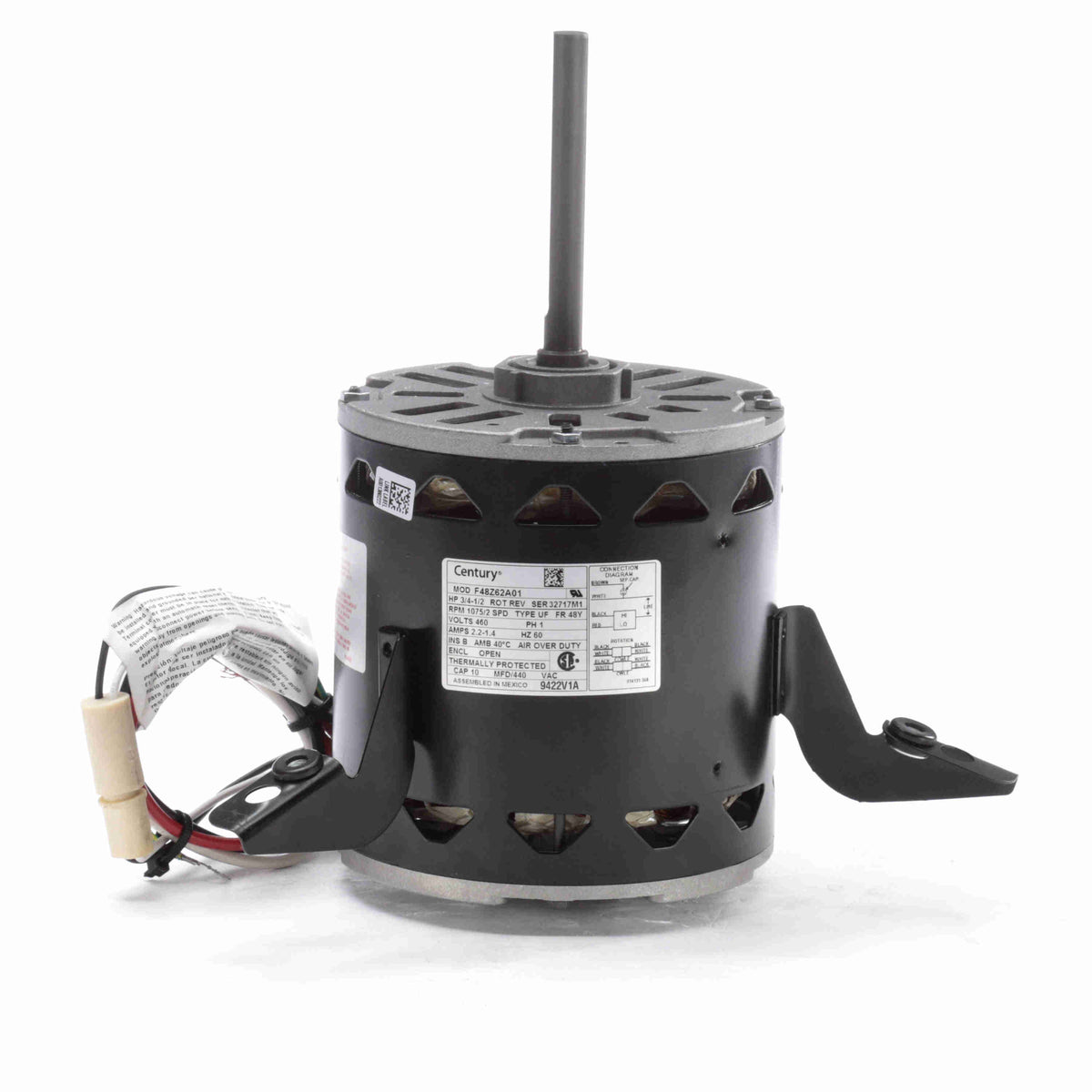

A.O. Smith 9422V1A - 34HP 460V 1075RPM 2Sp 48Y Mtr

A.O. Smith 9422V1A - 34HP 460V 1075RPM 2Sp 48Y Mtr

zoom

Brand: A. O. Smith
PartNumber: 9422V1A
Manufacturer: A.O. Smith
Label: A.O. Smith

Attributes

Key	Value
9422V1A is listed in Ce.	A.O. Smith 9422, A.O. S.
Amps	2.2 - 1.4, 2.2/1.4
Bearings	Ball
Body Dia.	5.7"
Brand	Century
C-Dimension	10.86 (in.)
Capacitor	10MFD @ 440VAC Required
Catalog Number	9422V1A
CE	N
CSA	Y
DE Bearing Type	Ball
DEM Reference	NOHP
Duty	Air Over
Duty Cycle	Continuous
Electrical Type	Permanent Split Capacit.
Enclosure Type	Open Enclosed, OAO (Ope.
Frame	F48Y, 48Y
Frame Material	Rolled Steel
Frame Type	48Y
Frequency	60
Full Load Amps	2.2-1.4A
HP	3/4-1/2 HP, 1/2, 3/4, 3.
Hz	60
Ins. Class	B
Insulation Class	B
IP Code	-
Item	Motor
KVA Code	-
Manufacturers Warranty .	1 yr.
Max Ambient	40?C
Max. Ambient Temp.	40 Degrees C
Maximum Ambient Tempera.	40? C
Motor Application	OEM Replacement
Motor Bearings	Ball
Motor Design	Permanent Split Capacit.
Motor Diameter	5-5/8"
Motor Enclosure Design	Open Enclosed
Motor Mounting Type	Lug
Motor Orientation	Horizontal
Motor Shaft Rotation	Reversible
Motor Thermal Protection	Automatic
Mounting	Flex Bracket
Mounting Type	Lug
Nameplate RPM	1075 rpm
No. of Speeds	2
Number of Shafts	1
Number of Speeds	2
ODE Bearing Type	Ball
Overall Length	10.86"
Phase	1
Product Category	HVAC/R Motors > Fan Co.
Product Type	PSC (Permanent Split Ca.
Rotation	Reversible
RPM	1075
RPM (Nameplate)	1075
RPM (Number of Poles)	6 (901 RPM to 1200 RPM)
Service Factor	1
Service Factor (SF)	1.00
Shaft Dia.	1/2"
Shaft Diameter	1/2 (in.), 1/2"
Shaft Extension	4.5 (in.)
Shaft Length	4-1/2"
Shaft Type	Flat
Ship Weight	21 lbs.
Speeds	2
Thermal Protection	Automatic
Type of Overload Protec.	Automatic
UL	Recognized
Voltage	460V
Volts	460

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	emotorpro.com	9422V1A	467.01	1	In Stock		Century	21.0	467.01 @ 1
	midwestapplianceparts.com	9422V1A-AO-P	488.15	1	In Stock		AO Smith		488.15 @ 1
	Dreisilker	CE-RBC-9422V1A	491.07	1	In Stock		Century		491.07 @ 1
	sustainablesupply.com	C2090649	493.3	1	In Stock		Century	15.0	493.3 @ 1
	Zoro	G3262421	493.99	1	In Stock		Century	20.9	493.99 @ 1
	National Supply Network	B2776713	494.52	1	In Stock		AO SMITH		494.52 @ 1
	Voomi Supply	9422V1A	530.6	1	In Stock		CENTURY MOTORS		530.6 @ 1
	Global Industrial	WBB2776713	535.0	1	In Stock		Century		535.0 @ 1
	ptacsolutions.com	9422V1A	602.76	1	3		A.O. Smith		602.76 @ 1
	uri.com	9422V1A	1072.62	1	In Stock		Century	21.0	1072.62 @ 1
