| Body Dia. | 5.7" |
| Duty | Air Over |
| Frame | 48Y |
| HP | 1/4 HP |
| Ins. Class | B |

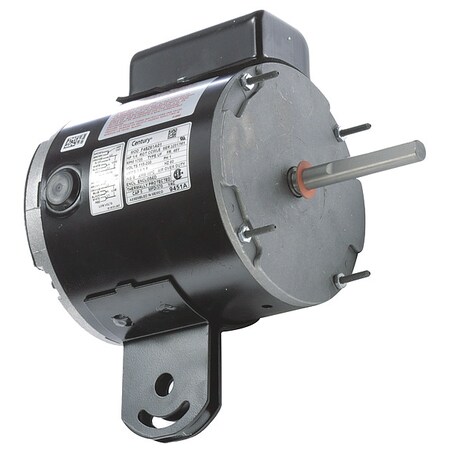

| Item | Motor |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | OEM Replacement |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed |
| Motor Mounting Type | Yoke |
| Motor Shaft Rotation | Counterclockwise Lead End |
| Motor Sub Application | Pedestal Fan Motor |
| Motor Thermal Protection | Automatic |
| Nameplate RPM | 1725 rpm |
| Number of Shafts, Phase | 1 |
| Overall Length | 9.42" |
| Shaft Dia. | 1/2" |
| Shaft Length | 3.3" |
| Stud Size | #8-32 |
| Voltage | 115/230V |
