Century 9476A

mpn9476A
brandname: Century
manufacturername: Century

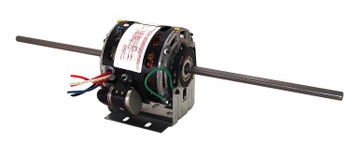

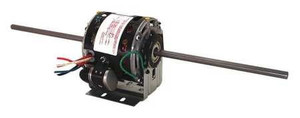

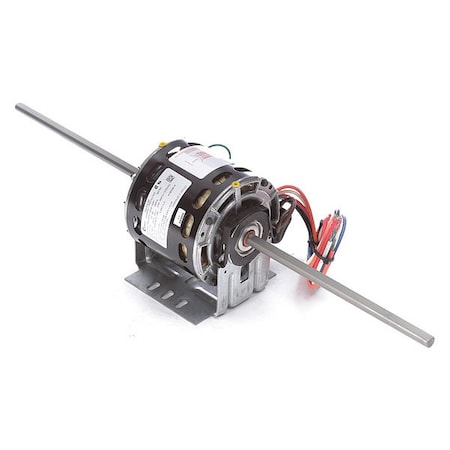

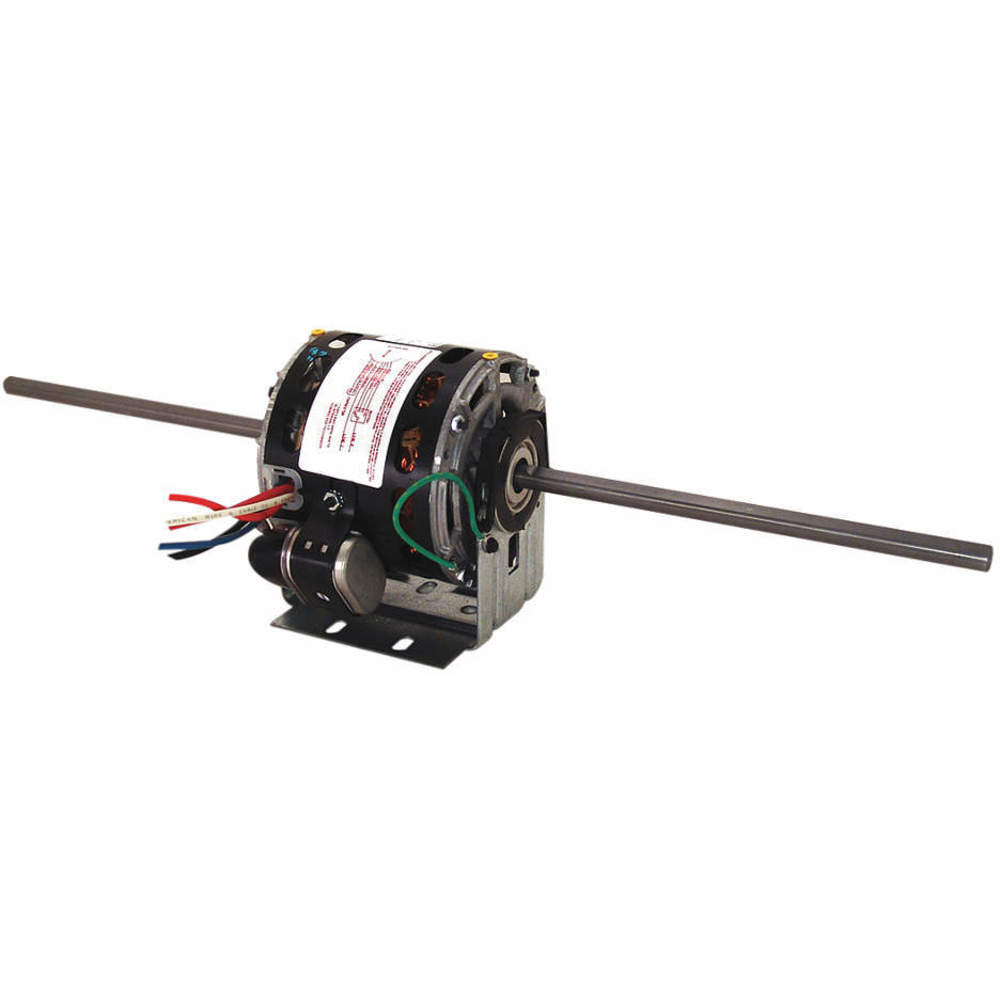

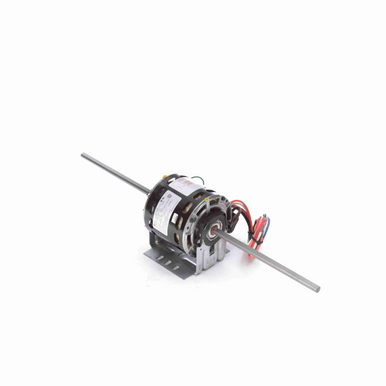

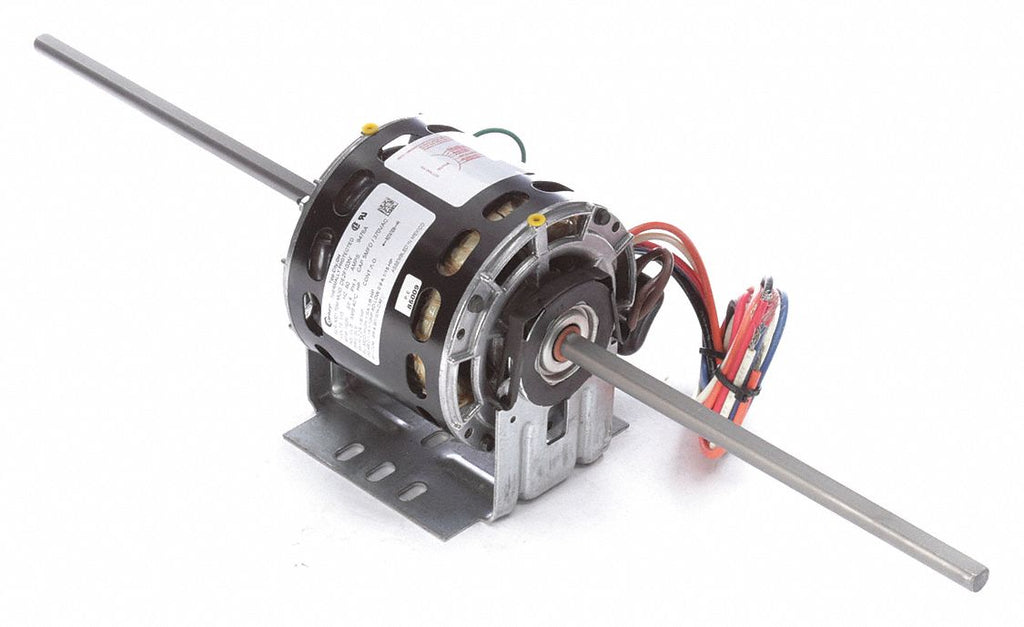

Room Air Cond Mtr, PSC, OAO, 1625 RPM

Brand: Century
PartNumber: 9476A
PackageQuantity: 1
Manufacturer: CENTURY
Label: CENTURY

Attributes

Key	Value
9476A is listed in Cent.	A.O. Smith 9476, A.O. S.
Amps	2.2/1.6/1.1/0.9
Bearings	Sleeve
Best Sellers Rank	See Top 100 in Tools & .
Body Dia.	5 in
Brand	Century
Capacitor	5MFD @ 370VAC (Included)
Capacitor Required	Included
Current Stock	47
Date First Available	April 4, 2012
Duty Cycle	Continuous
Enclosure Type	OAO (Open Air Over)
Frame	42Y
Full Load Amps	2.2, 1.6, 1.1, 0.9
HP	1/6, 1/8, 1/10, 1/15, 1.
Hz	60
Includes	Resilient Base
Ins. Class	B
Insulation Class	B
International Shipping	No
Item	Room Air Conditioner Mo.
Lead Length	26 in, 26"
Lead Time	Expected to ship in 1-2.
Length Less Shaft	5 7/16 in
Manufacturer	Century
Max. Ambient Temp.	40 Degrees C
Maximum Ambient Tempera.	40? C
Motor Application	HVAC/R
Motor Bearings	Sleeve
Motor Design	Permanent Split Capacit.
Motor Diameter	5"
Motor Enclosure Design	Open Air-Over
Motor Frame Material	Steel
Motor Mounting Position	All Angle
Motor Mounting Type	Cradle Base
Motor Service Factor	1, 1.00
Motor Shaft Design	Flat
Motor Shaft Rotation	CCWLE
Motor Sub Application	Room Air Conditioner
Motor Thermal Protection	Auto
Mounting	Cradle
Mounting Holes	4
Mpn	9476A
Nameplate RPM	1,625
No. of Speeds	4
Number of Shafts	2
Number of Speeds	4
Overall Length	24 in, 24"
Phase	1
Product Dimensions	26.8 x 7 x 7.1 inches; .
Product Type	PSC (Permanent Split Ca.
Product with faster shi.	true
Resilient Ring Dia.	2 1/2 in
Ring to Ring Center	5 in
Rotation	Double Shafted
RPM	1625
RPM Range	1,601-1,700
Service Factor (SF)	1.00
Shaft Dia.	1/2 in
Shaft Diameter	1/2"
Shaft Length	9-3/4" x 9-3/4", 9 1/4 .
Ship Weight	13 lbs.
Shipping	undefined (Fixed Shippi.
SKU	ZO-G2138245
Standards	CSA Certified, UL Recog.
Stud Quantity	4
SubCategory	Motors/Ac Motors
Thermal Protection	Automatic
Usable @ 200V	No
Usable @ 208V	No
Voltage	115, 115V AC
Volts	115
Weight	13 lb

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
ktool.net	9476A	192.89	1	In Stock		Century		192.89 @ 1
Zoro	G2138245	201.99	1	79		Century	12.0	201.99 @ 1
cshincorporated.com	U9476	202.19	1	In Stock		AO Smith / Century	14.0	202.19 @ 1
emotorpro.com	9476A	235.41	1	In Stock		Century	13.0	235.41 @ 1
sustainablesupply.com	C1561779	240.96	1	In Stock		Century	12.0	240.96 @ 1
AmazonTP	B000LEYIZ8	244.1	1	In Stock	3	A.O. Smith		244.1 @ 1
simsupply.com	ZO-G2138245	252.15	1	47		Century		252.15 @ 1
homeessentialsdirect.com	9476A	255.75	1	In Stock		CENTURY		255.75 @ 1
grainger.ca	AOS9476A	255.90467948	1	In Stock		CENTURY	12.0	255.90467948 @ 1
AmazonUNK	B079QFNR1B	256.61	1	In Stock		A.O. Smith		256.61 @ 1
National Supply Network	B2776563	257.87	1	In Stock		AO SMITH		257.87 @ 1
midwestapplianceparts.com	9476A-AO-P	264.49	1	In Stock		AO Smith		264.49 @ 1
Voomi Supply	9476A	265.57	1	In Stock		CENTURY MOTORS		265.57 @ 1
hvacdiscountstore.com	CEN--9476A	272.78	1	In Stock		CENTURY MOTORS		272.78 @ 1
Raptor Supplies	AD9TVK	327.919878	1	In Stock		CENTURY		327.919878 @ 1
uri.com	UE9476A	661.68	1	In Stock		Century	13.0	661.68 @ 1
