A.O. Smith Corporation 9618A

mpn9618A
brandname: Century
manufacturername: Century

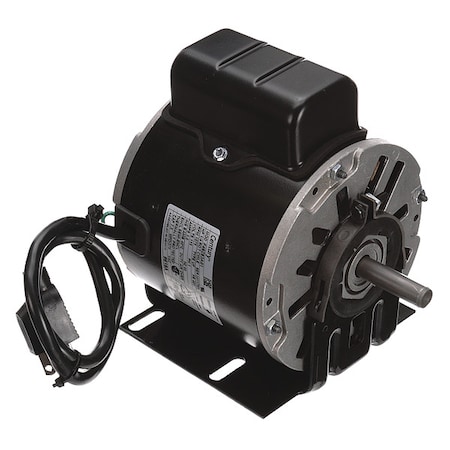

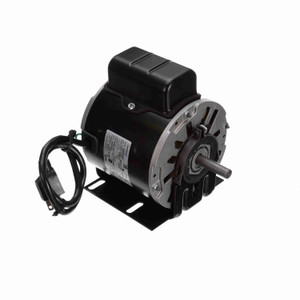

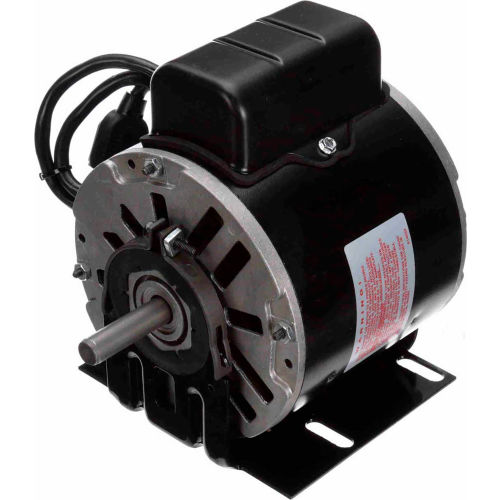

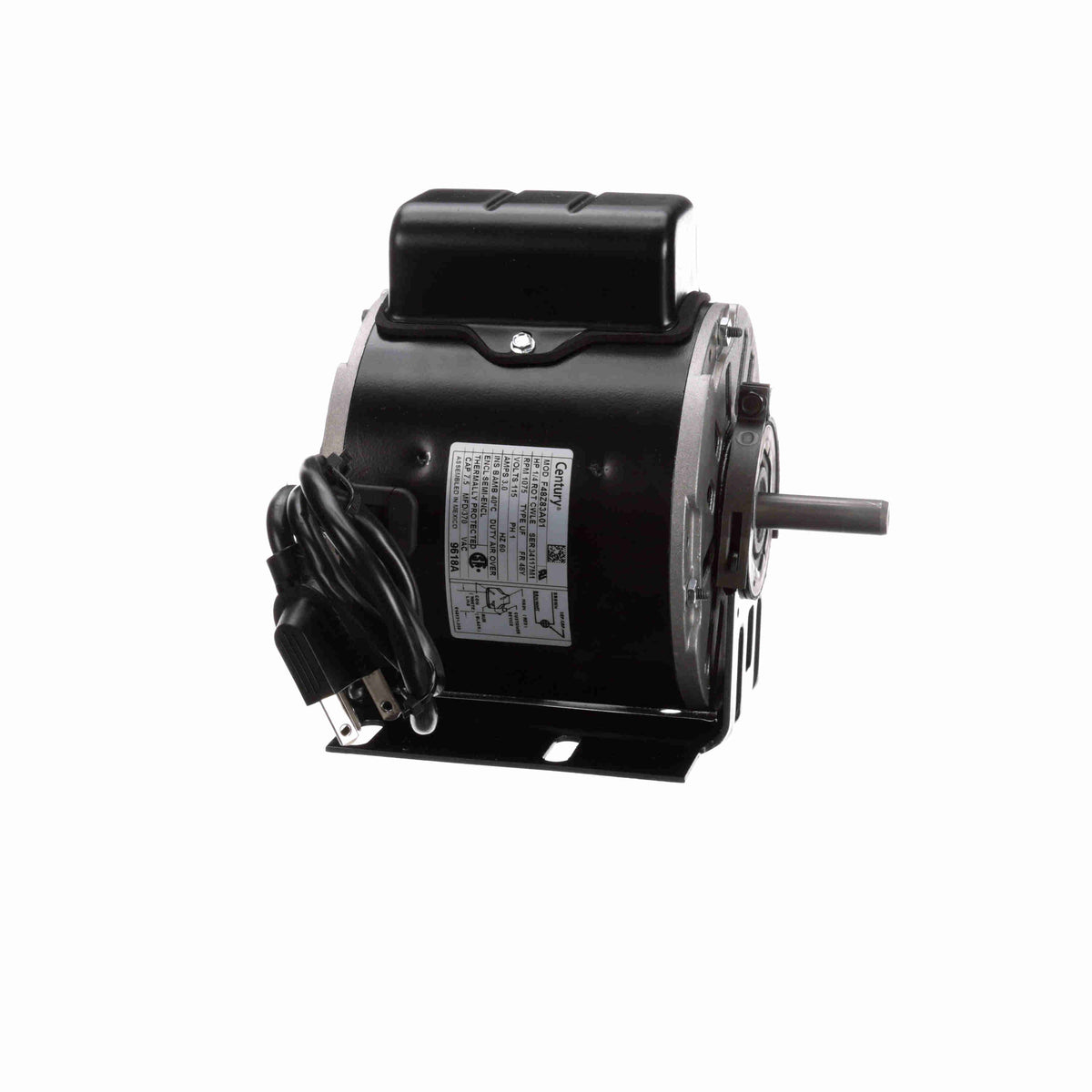

A.O. Smith Corporation 9618A 1/4HP 115V 1075RPM 1Spd Motor

Brand: A.O. Smith Corporation
PartNumber: 9618A
Manufacturer: A.O. Smith Corporation
Label: A.O. Smith Corporation

Attributes

Key	Value
9618A is listed in Cent.	A.O. Smith 9618, A.O. S.
Amps	3, 3.0
Batteries Required?	No
Bearings	Ball
Best Sellers Rank	#2,117,710 in Tools & H.
Body Dia.	5.7"
Brand	Century
C-Dimemsion	7.60 (in.)
Capacitor	7.5MFD @ 370VAC (Includ.
Catalog Number	9618A
CE	N
CSA	Y
Date First Available	March 3, 2012
DE Bearing Type	Ball
DEM Reference	AOS#9618
Duty	Air Over
Duty Cycle	Continuous
Electrical Type	Permanent Split Capacit.
Enclosure Type	OAO (Open Air Over), Se.
Frame	48Y
Frame Material	Rolled Steel
Frame Type	48Y
Frequency	60
Full Load Amps	3A
HP	1/4, 1/4 HP
Hz	60
Ins. Class	B
Insulation Class	B
IP Code	-
Item	Motor
Item model number	9618A
Item Package Quantity	1
Item Weight	17.6 pounds
KVA Code	-
Manufacturer	Century Electric/AO Smi.
Manufacturers Warranty .	1 yr.
Max Ambient	40?C
Max. Ambient Temp.	40 Degrees C
Maximum Ambient Tempera.	40? C
Motor Application	OEM Replacement
Motor Bearings	Ball
Motor Design	Permanent Split Capacit.
Motor Diameter	5-5/8"
Motor Enclosure Design	Semi Enclosed
Motor Mounting Type	Resilient Base
Motor Orientation	Any
Motor Shaft Rotation	Clockwise Lead End
Motor Thermal Protection	Automatic
Mounting	Cradle
Mounting Type	Resilient Base
Nameplate RPM	1075 rpm
Number of Shafts	1
Number of Speeds	1
ODE Bearing Type	Ball
Overall Length	7.60"
Part Number	9618A
Phase	1
Product Category	HVAC/R Motors > HVAC/R.
Product Dimensions	10.5 x 7.5 x 8.5 inches
Product Type	PSC (Permanent Split Ca.
Product with faster shi.	true
Replacement For	168654
Rotation	Clockwise Lead End, CCW.
RPM	1075
RPM (Nameplate)	1075
RPM (Number of Poles)	6 (901 RPM to 1200 RPM)
Service Factor	1
Service Factor (SF)	1.00
Shaft Dia.	1/2"
Shaft Diameter	1/2 (in.), 1/2"
Shaft Extension	2.14 (in.)
Shaft Length	2.14", 2-1/8"
Shaft Type	Flat
Ship Weight	20 lbs.
Shipping	undefined (Fixed Shippi.
Speeds	1
Thermal Protection	Automatic
Type of Overload Protec.	Automatic
UL	Recognized
Voltage	115V
Volts	115

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
ktool.net	9618A	250.39	1	In Stock		Century		250.39 @ 1
Zoro	G3262351	254.99	1	In Stock		Century	19.72	254.99 @ 1
cshincorporated.com	U9618A	259.04	1	In Stock		AO Smith / Century	19.0	259.04 @ 1
patrickssupply.com	9618A	275.0	1	In Stock		CENTURY		275.0 @ 1
emotorpro.com	9618A	309.02	1	In Stock		Century	20.0	309.02 @ 1
Dreisilker	CE-RBC-9618A	319.53	1	In Stock		Century		319.53 @ 1
midwestapplianceparts.com	9618A-AO-P	320.38	1	4		AO Smith		320.38 @ 1
National Supply Network	B2310211	321.77	1	In Stock		AO SMITH		321.77 @ 1
homeessentialsdirect.com	9618A	330.91	1	In Stock		Century Electric/AO Smith Motors Co	17.6	330.91 @ 1
Global Industrial	WBB2310211	337.95	1	In Stock		CENTURY		337.95 @ 1
Voomi Supply	9618A	345.24	1	In Stock		Century Motors		345.24 @ 1
sustainablesupply.com	C3017016	347.06	1	In Stock		Century	19.72	347.06 @ 1
hvacdiscountstore.com	CEN--9618A	348.84	1	In Stock		CENTURY MOTORS		348.84 @ 1
ptacsolutions.com	9618A	394.95	1	4		A.O. Smith		394.95 @ 1
turtle.com	AO2 9618A	552.73	1	In Stock		A. O. Smith		552.73 @ 1
uri.com	9618A	697.84	1	In Stock		Century	20.0	697.84 @ 1
AmazonTP	B082Z6LXGC	702.93	1	In Stock	5	Century		702.93 @ 1
