Century B178

B0091BBOOK

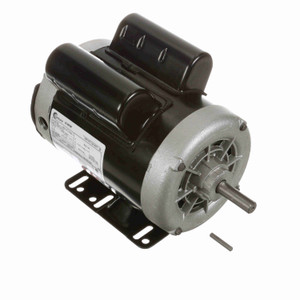

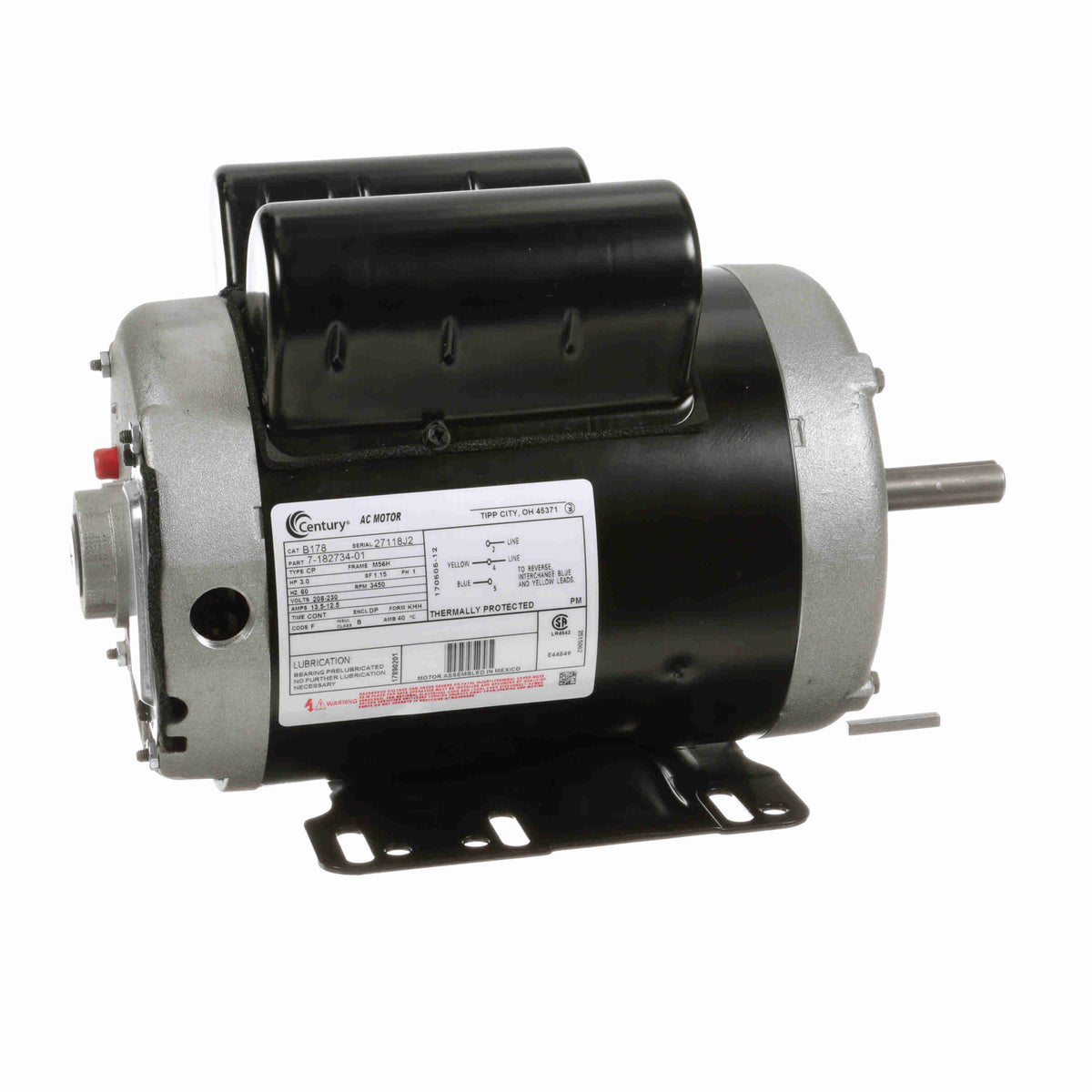

Century B178 Cap Start Rigid, 56H Frame, 3-HP, 3450-RPM, 208-230-Volt, 13.5-Amp, Ball Bearing Motor

Century B178 Cap Start Rigid, 56H Frame, 3-HP, 3450-RPM, 208-230-Volt, 13.5-Amp, Ball Bearing Motorzoom

Attributes

Key Value
Amps13.5-12.5, 13.5/12.5
B178 is listed in Centu.A.O. Smith 182734, Bald.
BearingsBall
BrandCentury
C-Dimemsion12.69 (in.)
CapacitorIncluded
Catalog NumberB178
CategoryElectric Motor
CEN
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Electrical TypeCapacitor Start, Capaci.
EnclosureODP, DP
Enclosure TypeODP (Open Dripproof), D.
Frame56H
Frame MaterialRolled Steel
Frame Type56H
Frequency60
HP3, 3.0
Hz60
Insulation ClassB
IP Code-
Item ConditionFACTORY NEW
KVA Code-
ManufacturerCentury
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter6-1/2"
Motor Orientation-
MountingRigid
mountingRigid Base
Mounting TypeRigid Base
Number of Speeds1
ODE Bearing TypeBall
Phase1
Product CategoryGeneral Purpose NEMA Ge.
Product TypeCapacitor Start, Capaci.
RotationReversible Counterclock.
RPM3450, 3600
RPM (Nameplate)3450
RPM (Number of Poles)2 (1801 RPM to 3600 RPM)
Service Factor1.15
Service Factor (SF)1.15
Shaft Diameter5/8" Keyed, 5/8 (in.)
Shaft Extension1.94 (in.)
Shaft TypeKeyed
Ship Weight35 lbs.
Speeds1
Thermal ProtectionManual
Type of Overload Protec.Thermally Protected
ULRecognized
Voltage208-230
Volts208-230, 208/230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcshincorporated.comUB178381.141In StockAO Smith / Century35.0381.14 @ 1
thumbzoomemotorpro.comB178424.181In StockCentury35.0424.18 @ 1
thumbzoomsustainablesupply.comC2091110448.341In StockCentury15.0448.34 @ 1
thumbzoommidwestapplianceparts.comB178-AO-P475.971In StockAO Smith475.97 @ 1
thumbzoomMRO Supply5918124728.471In StockCentury728.47 @ 1
thumbzoomDealers ElectricB178777.041In StockCentury35.0777.04 @ 1
thumbzoomDreisilkerCE-RBC-B178872.751In StockCentury872.75 @ 1
