AO Smith B382

B003YD3P98

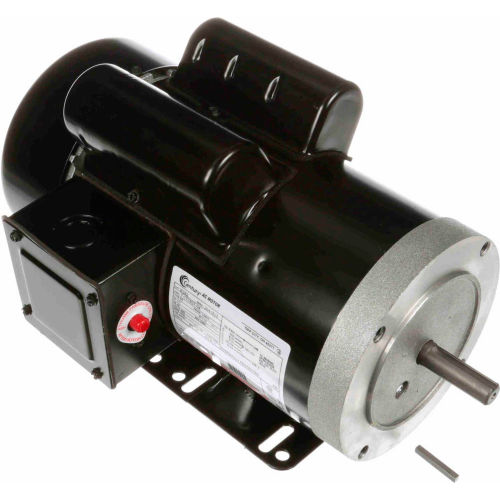

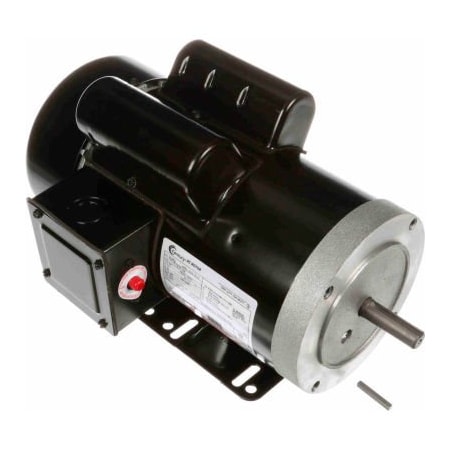

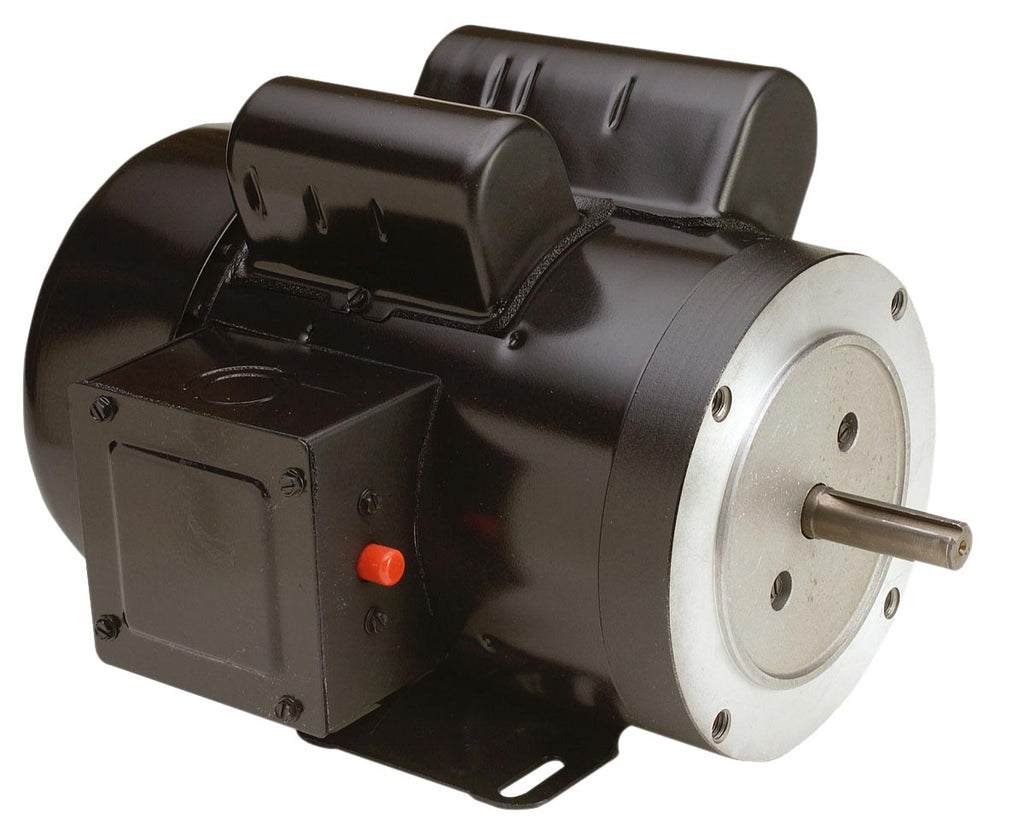

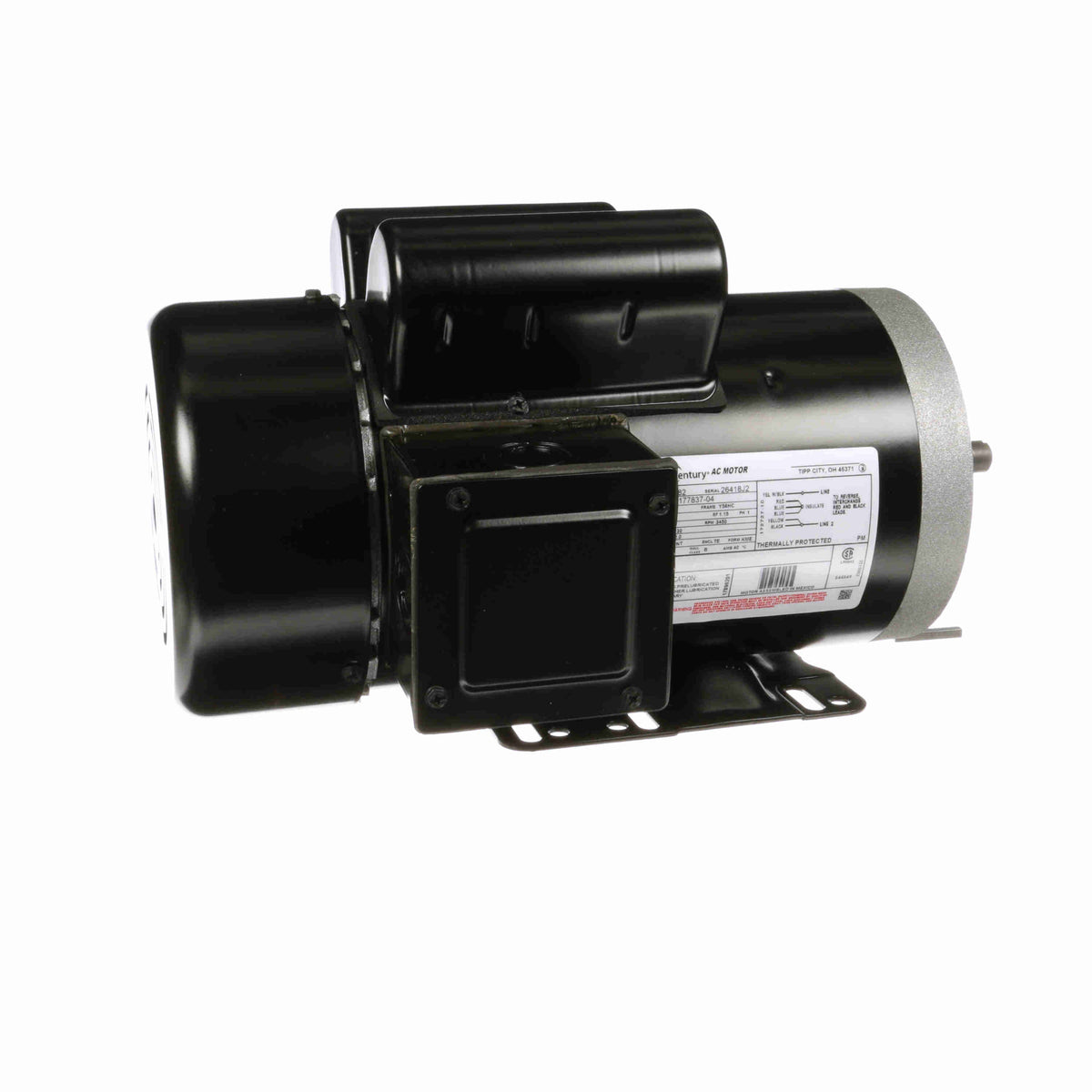

AO Smith B382 Capacitor Start TEFC C-Face Motor 3 HP

AO Smith B382 Capacitor Start TEFC C-Face Motor 3 HPzoom

Attributes

Key Value
Amps12.0, 12
B382 is listed in Centu.A.O. Smith 177837, Cent.
BearingsBall
BrandCentury
C-Dimemsion15.21 (in.)
CapacitorIncluded
Catalog NumberB382
CategoryElectric Motor
CEN
Country of Origin (subj.Mexico
CSAY
DE Bearing TypeBall
DEM ReferenceC#B382
DutyContinuous
Duty CycleContinuous
Electrical TypeCapacitor Start, Capaci.
EnclosureTEFC, TENV
Enclosure TypeTEFC (Totally Enclosed .
Frame56HC
Frame MaterialRolled Steel
Frame RemarksFOOTED
Frame Type56HC
Frequency60
HP3, 3.0
Hz60
Insulation ClassB
IP Code-
ItemCS C-Face Motor
Item ConditionFACTORY NEW
KVA Code-
ManufacturerCentury
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter6-1/2"
Motor Orientation-
MountingC-Face/Rigid
mountingC-face w/ rigid base
Mounting TypeRigid Base
Number of Speeds1
ODE Bearing TypeBall
Phase1
Product CategoryLow Voltage NEMA Farm /.
Product TypeCapacitor Start, Capaci.
RotationReversible Counterclock.
RPM3450, 3600
RPM (Nameplate)3450
RPM (Number of Poles)2 (1801 RPM to 3600 RPM)
Service Factor1.15
Service Factor (SF)1.15
Shaft Diameter5/8" Keyed, 5/8 (in.)
Shaft Extension2.07 (in.)
Shaft Length1-7/8"
Shaft TypeKeyed
Ship Weight48 lbs.
Speeds1
Thermal ProtectionManual
Type of Overload Protec.Thermally Protected
ULRecognized
Voltage230
Volts230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcshincorporated.comUB382631.071In StockAO Smith / Century48.0631.07 @ 1
thumbzoomMRO Supply5918128686.51In StockCentury686.5 @ 1
thumbzoomemotorpro.comB382726.541In StockCentury48.0726.54 @ 1
thumbzoomDealers ElectricB382755.151In StockCentury48.0755.15 @ 1
thumbzoomsustainablesupply.comC2090315767.911In StockCentury15.0767.91 @ 1
thumbzoommidwestapplianceparts.comB382-AO-P782.91In StockAO Smith782.9 @ 1
thumbzoomDreisilkerCE-RBC-B382844.931In StockCentury844.93 @ 1
thumbzoompatrickssupply.comB382855.01In StockCENTURY855.0 @ 1
thumbzoomNational Supply NetworkB2776756863.351In StockAO SMITH863.35 @ 1
thumbzoomGlobal IndustrialWBB2776756908.01In StockCentury908.0 @ 1
thumbzoomZoroG5049342281195.481In StockA.O. Smith1195.48 @ 1
