Century B383

B0009W8QVO

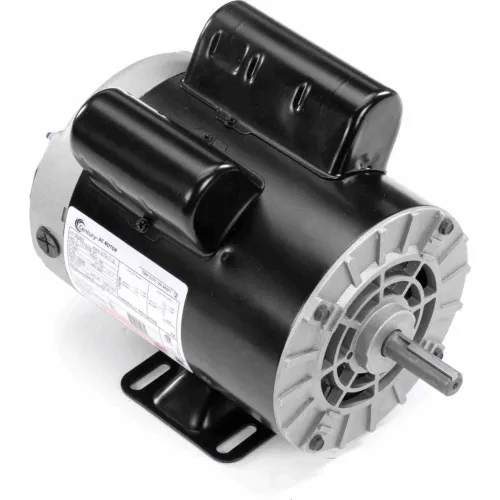

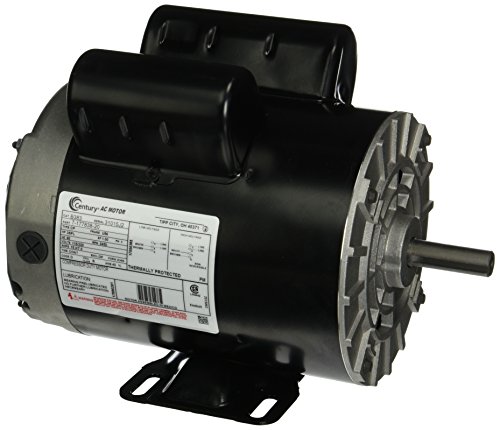

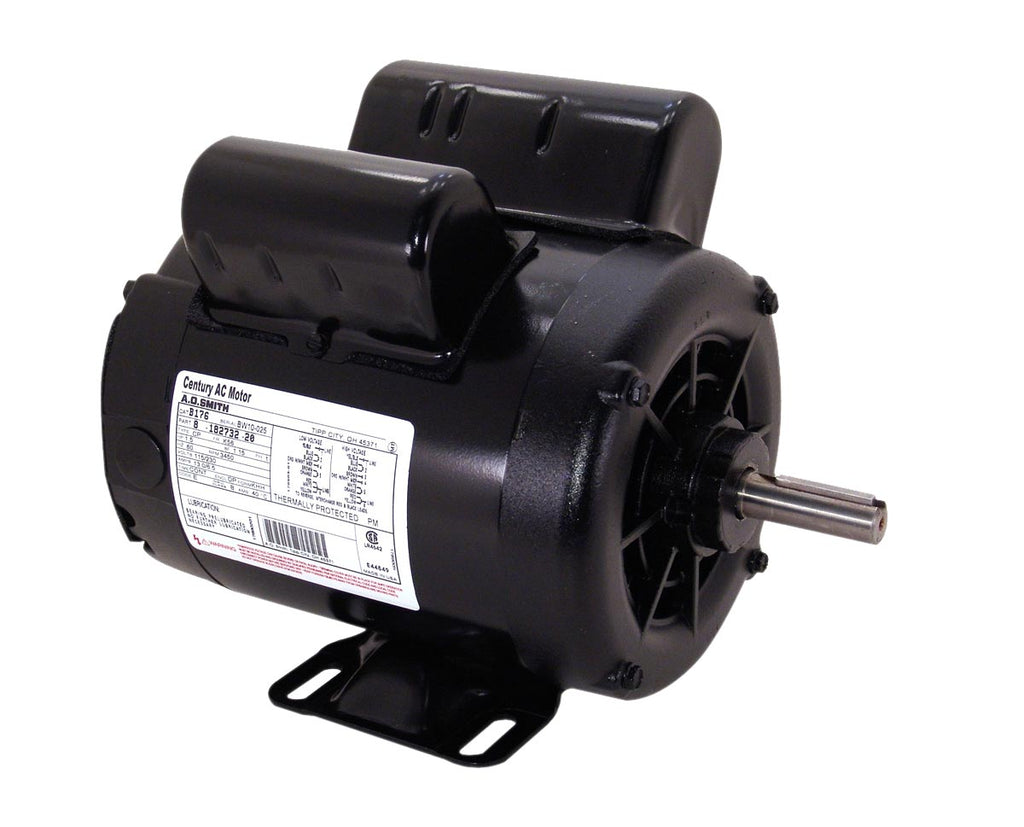

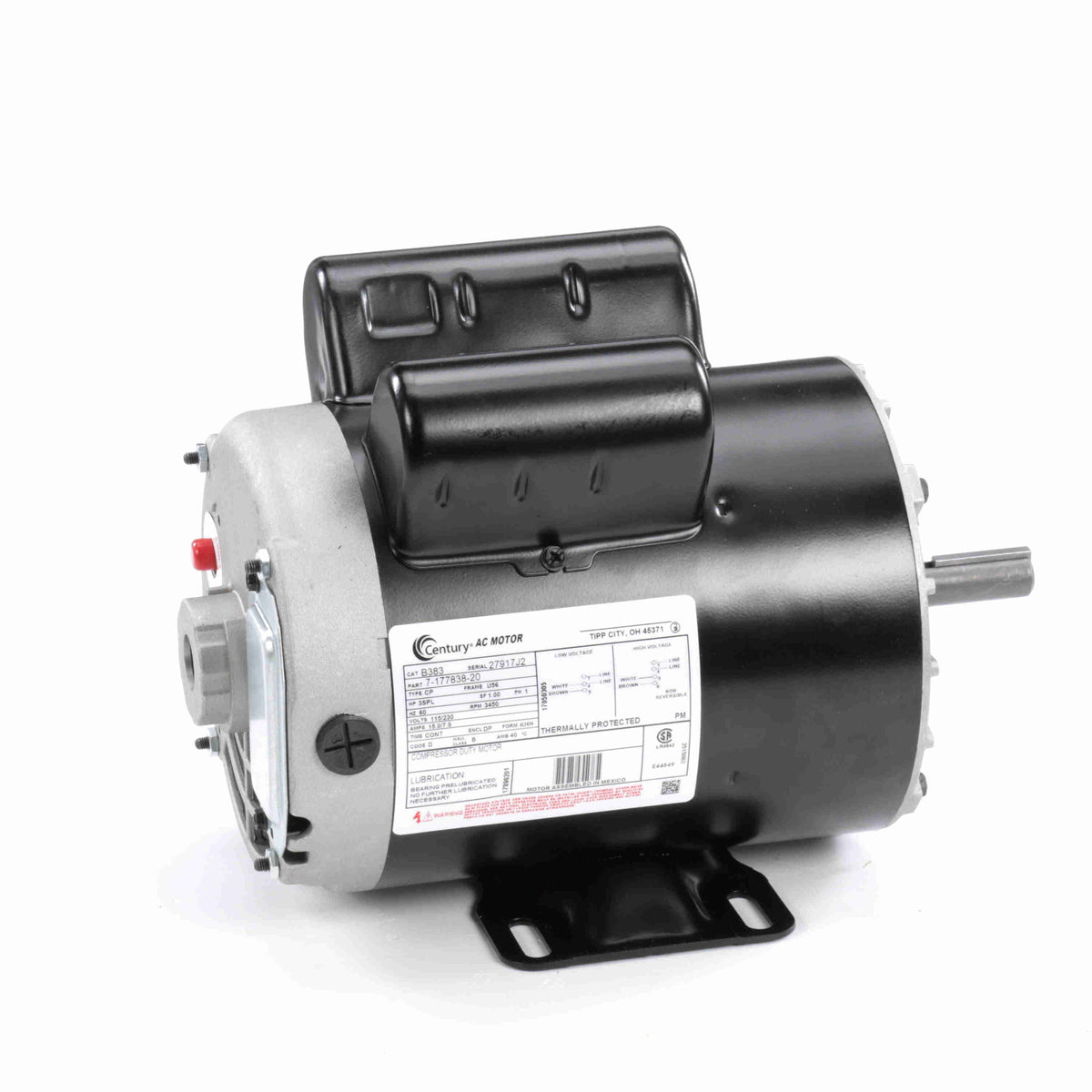

3 HP SPL 3450 RPM U56 Frame 115/230V Air Compressor Motor - Century # B383

3 HP SPL 3450 RPM U56 Frame 115/230V Air Compressor Motor - Century # B383zoom

Attributes

Key Value
Amperage15.0/7.5 Amps
Amps15/7.5
B383 is listed in Centu.A.O. Smith 177838, Cent.
BearingsBall
BrandCentury
CapacitorIncluded
Capacitor RequiredIncluded
DutyContinuous
Duty CycleContinuous
EnclosureODP
Enclosure TypeODP (Open Dripproof)
Frame56, U56
Full Load Amps15.0/7.5 A
HP3, 3SPL HP
Hz60
Ins. ClassB
Insulation ClassB
ItemMotor
Manufacturers Warranty .1 yr.
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
ModelB383
Motor ApplicationOEM Replacement
Motor BearingsBall
Motor DesignCapacitor Start, Capaci.
Motor Diameter6-1/2"
Motor Enclosure DesignDrip Proof
Motor Mounting TypeKeyed
Motor Shaft RotationClockwise
Motor Thermal ProtectionManual
Mount4 bolt base 4-7/8" x 3".
MountingRigid
Nameplate RPM3450 rpm
Number of Shafts1
Number of Speeds1
Overall Length11.59"
Package Quantity1
Phase1
Power3 HP Definite Purpose S.
Product TypeCapacitor Start, Capaci.
RotationCCW, CCW Shaft End
RPM3450
Service Factor1.00
Service Factor (SF)1.00
Shaft5/8" dia. x 1-3/4" w/ 3.
Shaft Dia.5/8"
Shaft Diameter5/8" Keyed
Shaft Length1.88", 1-7/8"
Ship Weight30 lbs.
Shpg.32 lbs.
Size9-1/2" x 6-1/2" x 8"
Speed3450 rpm
StandardsUL Recognized, CSA Cert.
Thermal ProtectionManual
Voltage115/230 AC, 115/230V
Volts115/230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsurpluscenter.com10-3325240.45136Century240.45 @ 1
thumbzoomcompressor-source.comB383279.9511Century279.95 @ 1
thumbzoomktool.netB383335.81In StockCentury335.8 @ 1
thumbzoomcshincorporated.comUB383346.51In StockAO Smith / Century31.0346.5 @ 1
thumbzoomemotorpro.comB383391.991In StockCentury30.0391.99 @ 1
thumbzoompatrickssupply.comB383399.21In StockCENTURY399.2 @ 1
thumbzoomsustainablesupply.comC2091270414.311In StockCentury15.0414.31 @ 1
thumbzoommidwestapplianceparts.comB383-AO-P439.841In StockAO Smith439.84 @ 1
thumbzoomNational Supply NetworkB2776601447.171In StockAO SMITH447.17 @ 1
thumbzoomGlobal IndustrialWBB2776601459.951In StockCentury459.95 @ 1
hvacdiscountstore.comCEN--B383491.041In StockCENTURY MOTORS491.04 @ 1
ptacsolutions.comB383543.111In StockA.O. Smith543.11 @ 1
thumbzoomZoroG304968454675.991In StockA.O. Smith675.99 @ 1
