A. O. Smith B387

B007ATNHSG

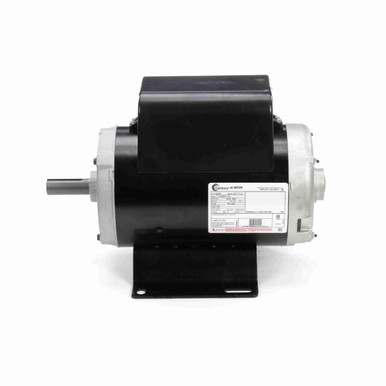

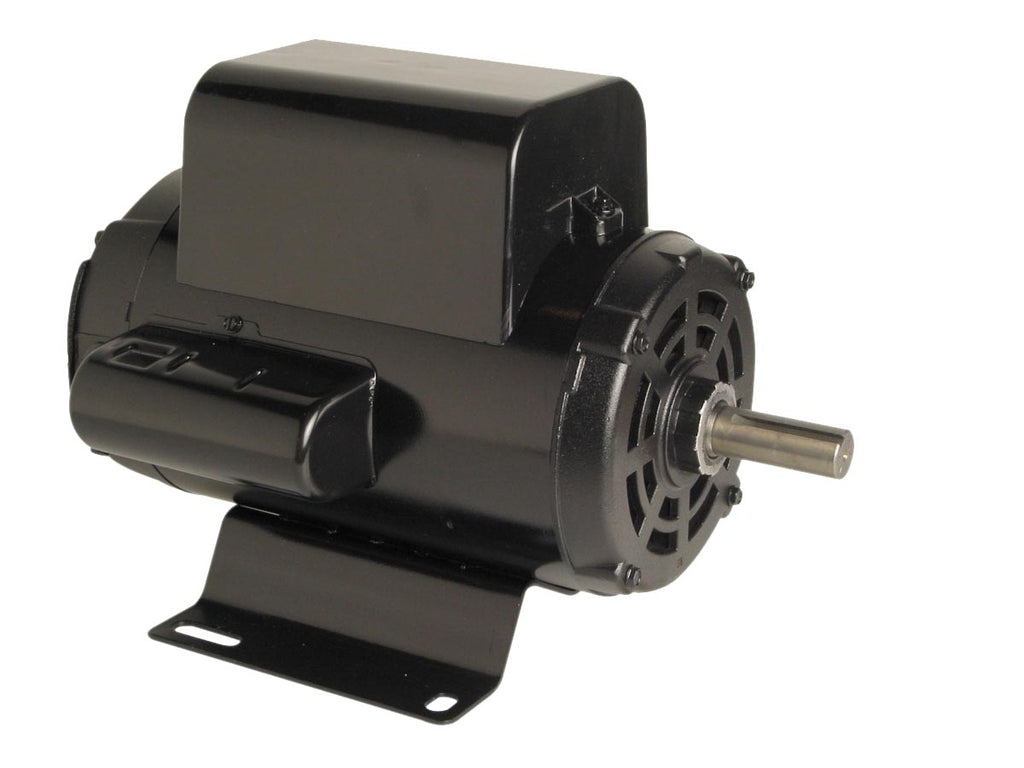

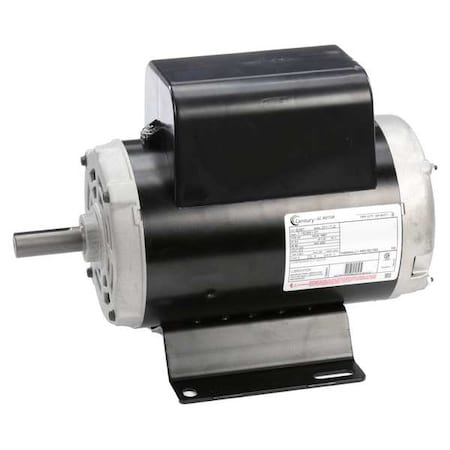

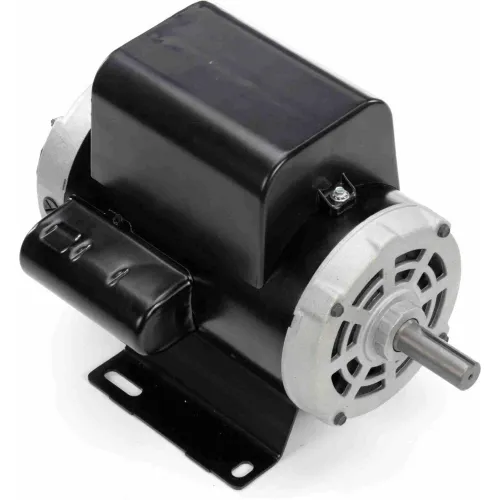

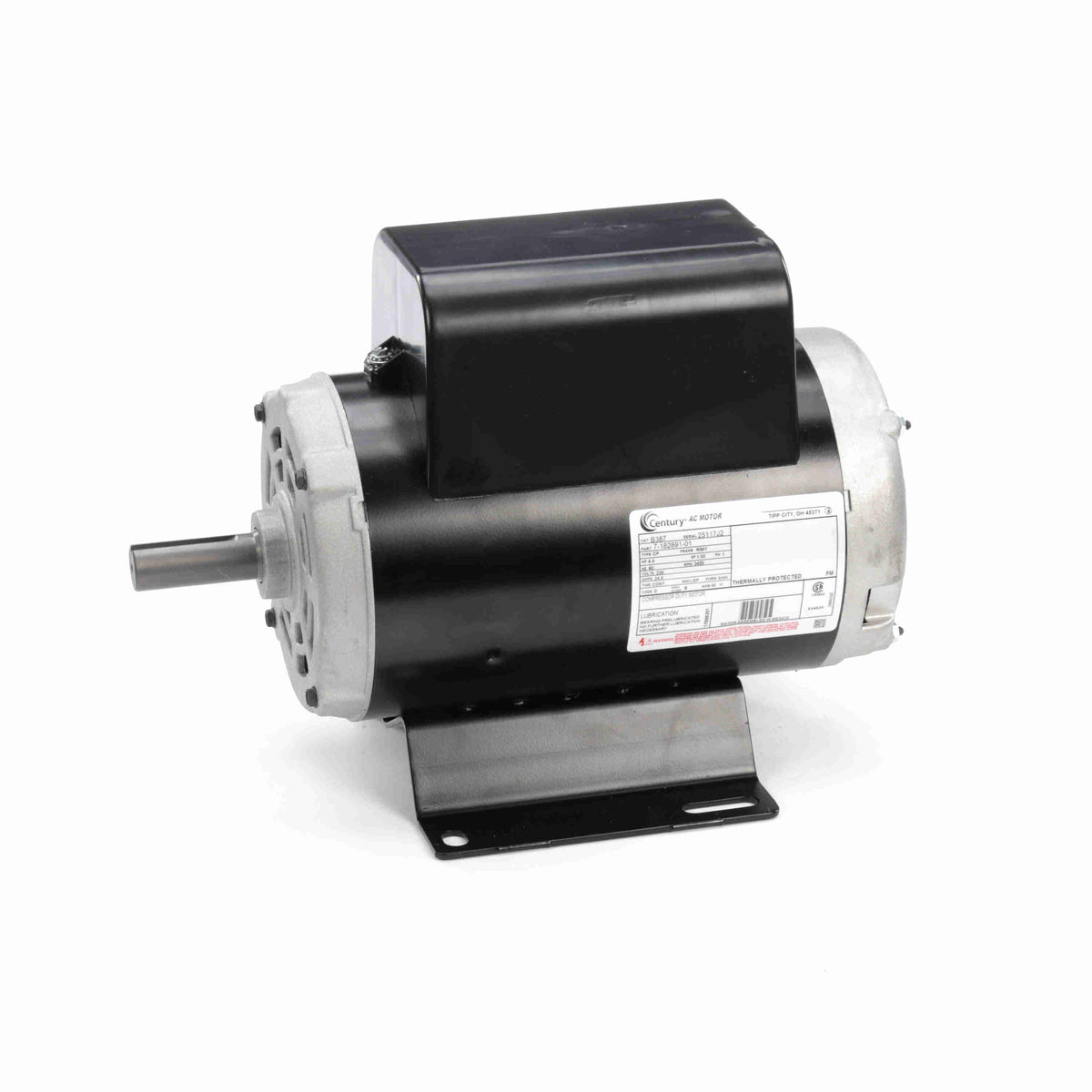

Century formerly A.O. Smith B387 6 HP, 3450 RPM, 230 Volts, 24 Amps, 56Y Frame, 1 Service Factor, CWLE Rotation, 7/8-Inch by 2-1/4-Inch Keyed Shaft Compressor Motor

Century formerly A.O. Smith B387 6 HP, 3450 RPM, 230 Volts, 24 Amps, 56Y Frame, 1 Service Factor, CWLE Rotation, 7/8-Inch by 2-1/4-Inch Keyed Shaft Compressor Motorzoom

Attributes

Key Value
Amps24, 24.0
B387 is listed in Centu.A.O. Smith 182891
BearingsBall
BrandCentury
C-Dimemsion14.56 (in.)
CapacitorIncluded
Catalog NumberB387
CEN
Country of Origin (subj.Mexico
CSAN
Current Stock3
DE Bearing TypeBall
DEM ReferenceAOS#B387
DutyContinuous
Duty CycleContinuous
Electrical TypeCapacitor Start, Capaci.
Enclosure TypeODP (Open Dripproof), D.
FrameR56Y, 56Y
Frame MaterialRolled Steel
Frame Type56Y
Frequency60
HP6
Hz60
IncludesKey
Ins. ClassF
Insulation ClassB, F
International ShippingNo
IP Code-
ItemAir Compressor Motor, A.
KVA Code-
Lead TimeExpected to ship in 1-2.
Length Less Shaft12 1/4 in
Manufacturers Warranty .18 mo
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor BearingsBall
Motor DesignCapacitor-Start
Motor Diameter6-1/2"
Motor Enclosure DesignOpen Dripproof
Motor Mounting TypeRigid Base
Motor Orientation-
Motor Service Factor1
Motor Shaft RotationCCWSE
Motor Thermal ProtectionManual
MountingRigid
Mounting TypeRigid Base
MpnB387
Nameplate RPM3,600 RPM
No. of Speeds1
Number of Speeds1
ODE Bearing TypeBall
Overall Length14 14/25 in
Phase1
Product CategoryNEMA Definite Purpose A.
Product TypeCapacitor Start, Capaci.
RotationClockwise, CCW Shaft End
RPM3450
RPM (Nameplate)3450
RPM (Number of Poles)2 (1801 RPM to 3600 RPM)
RPM Range3,001-3,600
Service Factor1
Service Factor (SF)1.00
Shaft Dia.7/8 in
Shaft Diameter7/8" Keyed, 7/8 (in.)
Shaft Extension2.31 (in.)
Shaft Length2 1/4 in, 2-1/4"
Shaft TypeKeyed
Ship Weight53 lbs.
SKUZO-G702014944
Speeds1
SubCategoryMotors/Ac Motors
Thermal ProtectionManual
Type of Overload Protec.Thermally Protected
ULRecognized
UPC786674012432
Usable @ 208VNo
Voltage230V AC
Volts230
Weight53 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomktool.netB387583.941In StockCentury583.94 @ 1
thumbzoomDreisilkerCE-RBC-B387600.191In StockCentury600.19 @ 1
thumbzoomZoroG702014944645.9919Century48.9645.99 @ 1
thumbzoomemotorpro.comB387657.01In StockCentury53.0657.0 @ 1
thumbzoomsustainablesupply.comC2091458694.431In StockCentury15.0694.43 @ 1
thumbzoommidwestapplianceparts.comB387-AO-P707.961In StockAO Smith707.96 @ 1
thumbzoomNational Supply NetworkB2776721781.241In StockAO SMITH781.24 @ 1
thumbzoomsimsupply.comZO-G702014944783.4713Century783.47 @ 1
thumbzoomGlobal IndustrialWBB2776721865.01In StockCentury865.0 @ 1
