AO Smith B584

mpnB584
brandname: Century
manufacturername: Century

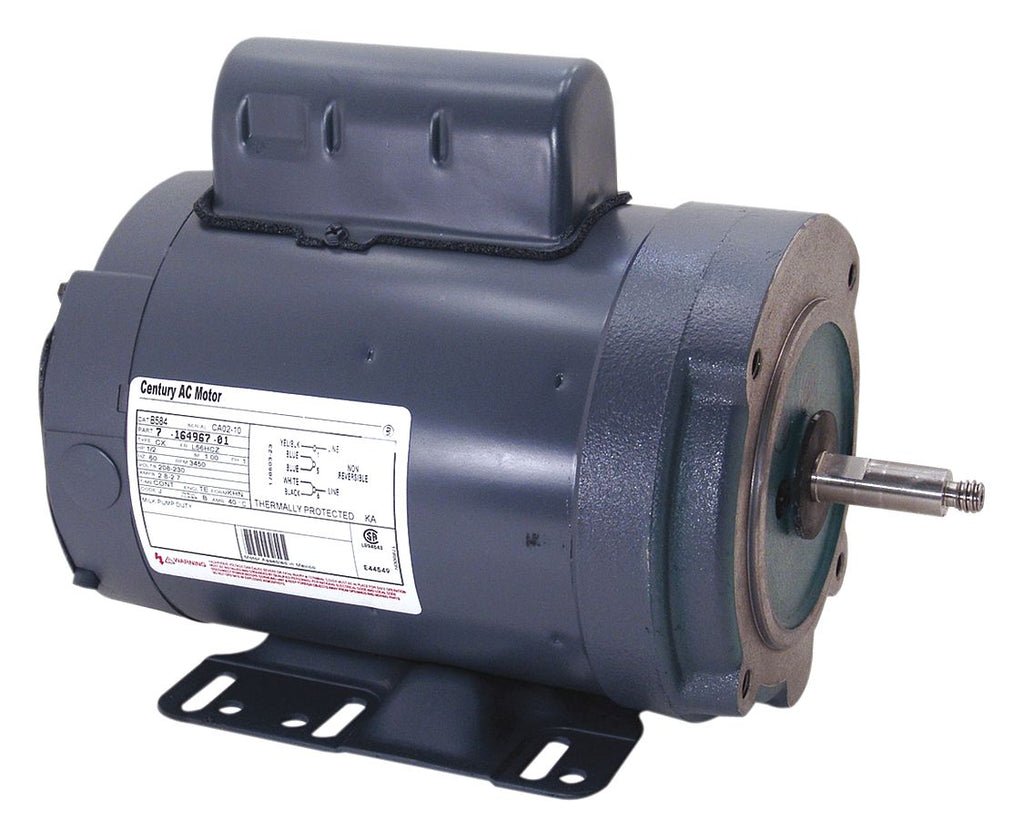

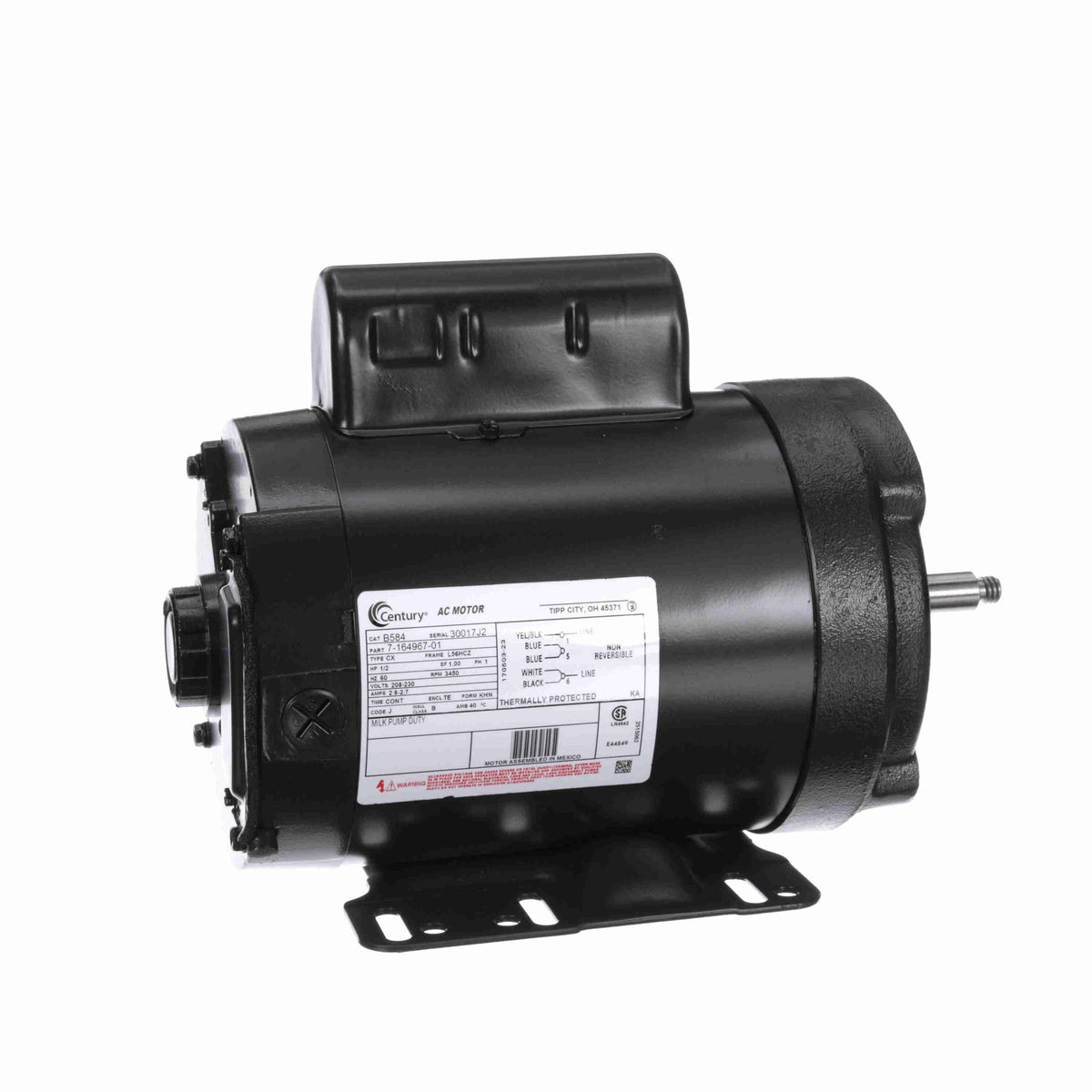

3/4hp 3600RPM 56HCZ Frame 208-230volts Century Milk Pump Motor AO Smith # B584

Brand: AO Smith
PartNumber: B584
PackageQuantity: 1
Manufacturer: AO Smith
Label: AO Smith

Attributes

Key	Value
Amps	2.8/2.7
B584 is listed in Centu.	A.O. Smith 164967, Cent.
Bearings	Ball
Capacitor	Included
Capacitor Required	Yes
Category	Electric Motor
Country of Origin (subj.	Mexico
Duty	Continuous
Duty Cycle	Continuous
Enclosure	TENV
Enclosure Type	TEAO (Totally Enclosed .
Finish	Black
Frame	56HCZ
Frame Material	Stainless Steel
Frame Remarks	FOOTED
Full Load Amps	2.8-2.7
HP	0.5, 1/2
Hz	60
Includes	Capacitor, Stainless St.
Ins. Class	B
Insulation Class	B
Item	Milk Pump Motor
Item - Farm Duty Motors	Milk Pump Motor
Item Condition	FACTORY NEW
Length Less Shaft	10-3/16"
Manufacturer	Century
Max. Ambient Temp.	40 Degrees C
Max. Ambient Temperature	40 Degrees C
Maximum Ambient Tempera.	40? C
Motor Application	Farm Duty
Motor Bearings	Ball
Motor Design	Permanent Split Capacit.
Motor Diameter	6-1/2"
Motor Efficiency Group	Standard Efficient
Motor Enclosure Design	Totally Enclosed Nonven.
Motor Frame Material	Stainless Steel
Motor Mounting Position	Horizontal or Vertical .
Motor Mounting Type	Rigid Base
Motor Service Factor	1.00
Motor Shaft Design	Threaded
Motor Shaft Rotation	CWLE
Motor Sub Application	Milk Pump
Motor Thermal Protection	Auto
Mounting	C-Face/Rigid
mounting	C-face w/ rigid base
Nameplate RPM	3450
Nominal Efficiency	74.7%
Number of Speeds	1
Overall Length	12-7/16"
Phase	1
Product Type	PSC (Permanent Split Ca.
Rotation	CCW Shaft End
RPM	3450, 3600
RPM Range	3001-3600
Service Factor (SF)	1.00
Shaft Dia.	5/8"
Shaft Diameter	Threaded
Shaft Length	2-1/4"
Ship Weight	31 lbs.
Standards	UL, CSA
Thermal Protection	Automatic
Voltage	208-230
Voltage Compatibility	115/208-230, 208-230, 2.
Volts	208-230, 208/230

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
MRO Supply	5812203	140.07	1	In Stock		Century		140.07 @ 1
Zoro	G5708071	247.8	1	In Stock		Century		247.8 @ 1
Grainger	33L122	316.5	1	In Stock	10	CENTURY		316.5 @ 1
Dealers Electric	B584	360.25	1	In Stock		Century	31.0	360.25 @ 1
emotorpro.com	B584	379.69	1	In Stock		Century	31.0	379.69 @ 1
patrickssupply.com	B584	389.18	1	In Stock		CENTURY		389.18 @ 1
sustainablesupply.com	C1527559	403.64	1	In Stock		Century	32.0	403.64 @ 1
midwestapplianceparts.com	B584-AO-P	412.84	1	In Stock		AO Smith		412.84 @ 1
industrialstores.com	B584	445.98	1	In Stock	19	Century Motors by Regal Beloit		445.98 @ 1
