Leeson B597

mpnB597
brandname: Century
manufacturername: Century

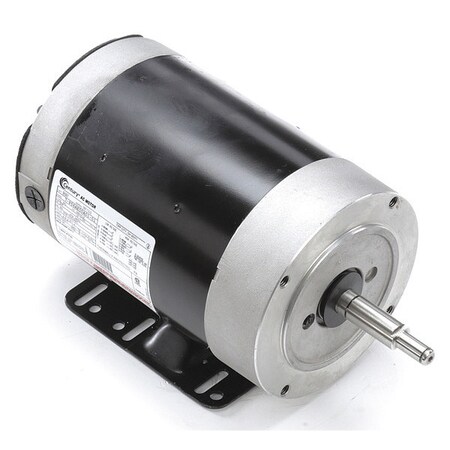

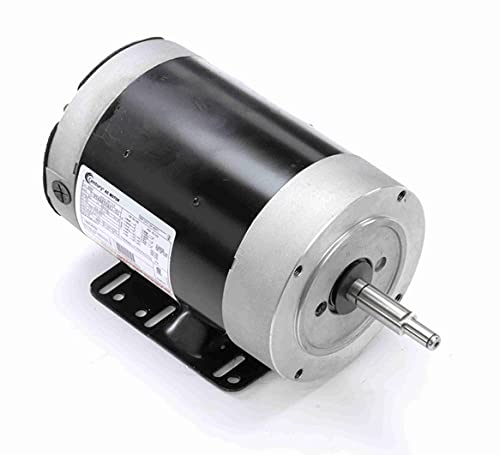

LEESON B597 Farm Duty Motor,200-230/440V AC

LEESON B597 Farm Duty Motor,200-230/440V AC

zoom

Brand: Leeson
PartNumber: B597
PackageQuantity: 1
Binding: Misc.
Manufacturer: Century Electric Motor
Label: Century Electric Motor

Attributes

Key	Value
Bolt Circle Dia.	5 7/8 in
Category	Electric Motor
Country of Origin (subj.	Mexico
Duty	Continuous
Duty Cycle	Continuous
Enclosure	TENV
Finish	Black
Frame	56HCZ
Frame Material	Rolled steel
Frame Remarks	FOOTED
Full Load Amps	2.5-2.4/1.20
HP	3/4, 0.75
Hz	60
Includes	Stainless Steel Shaft
Ins. Class	B
Item	Milk Pump Motor
Item - Farm Duty Motors	Milk Pump Motor
Item Condition	FACTORY NEW
Length Less Shaft	10 1/8 in
Manufacturer	Century
Max. Ambient Temp.	40 Degrees C
Max. Ambient Temperature	40 Degrees C
Motor Application	Farm Duty
Motor Bearings	Ball
Motor Design	3-Phase
Motor Efficiency Group	Standard Efficient
Motor Enclosure Design	Totally Enclosed Nonven.
Motor Frame Material	Steel
Motor Mounting Position	Horizontal, Vertical Sh.
Motor Mounting Type	Rigid Base
Motor Service Factor	1
Motor Shaft Design	Flat
Motor Shaft Rotation	CW/CCW
Motor Sub Application	Milk Pump
Motor Thermal Protection	Auto
mounting	C-face w/ rigid base
Nameplate RPM	3,450
No. of Speeds	1
Nominal Efficiency	77 %
Overall Length	13 3/8 in
Phase	3, Three
RPM	3450, 3600
RPM Range	3,001-3,600
Shaft Dia.	3/4 in
Shaft Length	3 1/4 in
Standards	CSA Certified, UL Recog.
Usable @ 200V	No
Usable @ 208V	Yes
Voltage	208-230/460V AC, 208-23.
Voltage Compatibility	200-230/440V AC, 200-23.
Volts	208/230/460
Weight	32 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G5799927	435.77	1	In Stock	25	Century	32.0	435.77 @ 1
	midwestapplianceparts.com	B597-AO-P	498.3	1	In Stock		AO Smith		498.3 @ 1
	sustainablesupply.com	C1529034	529.96	1	In Stock		Century	22.2	529.96 @ 1
	MRO Supply	5812212	611.32	1	In Stock		Century		611.32 @ 1
	Dealers Electric	B597	652.08	1	In Stock		Century	32.0	652.08 @ 1
