AO Smith B642

mpnB642
brandname: CENTURY
manufacturername: CENTURY

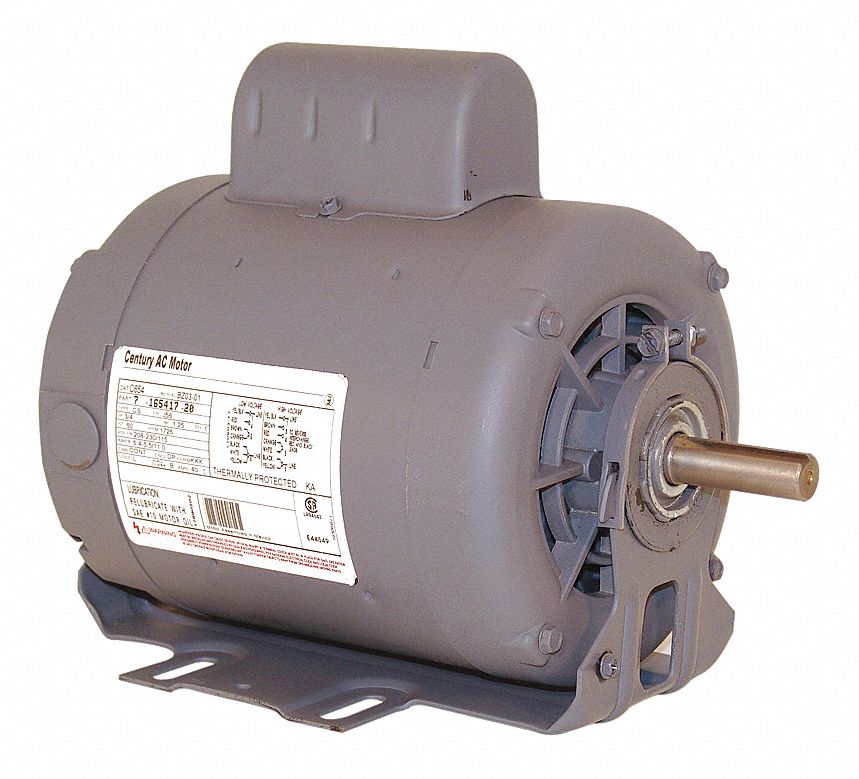

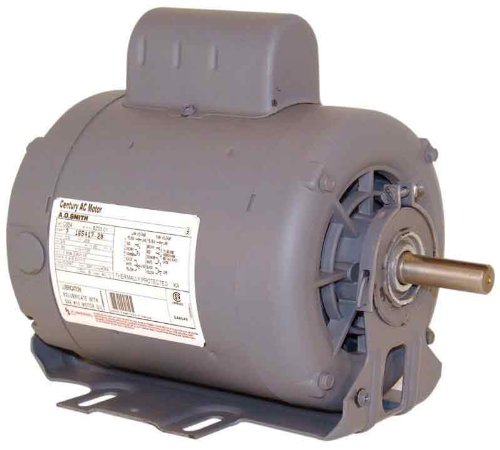

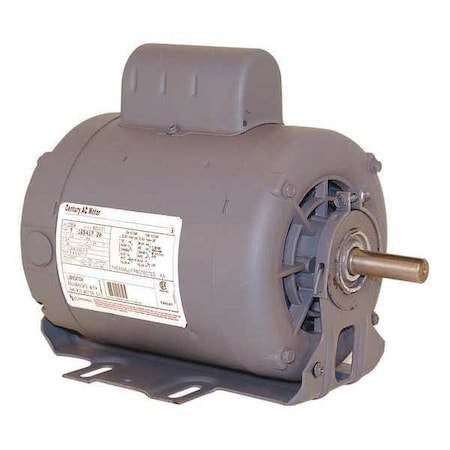

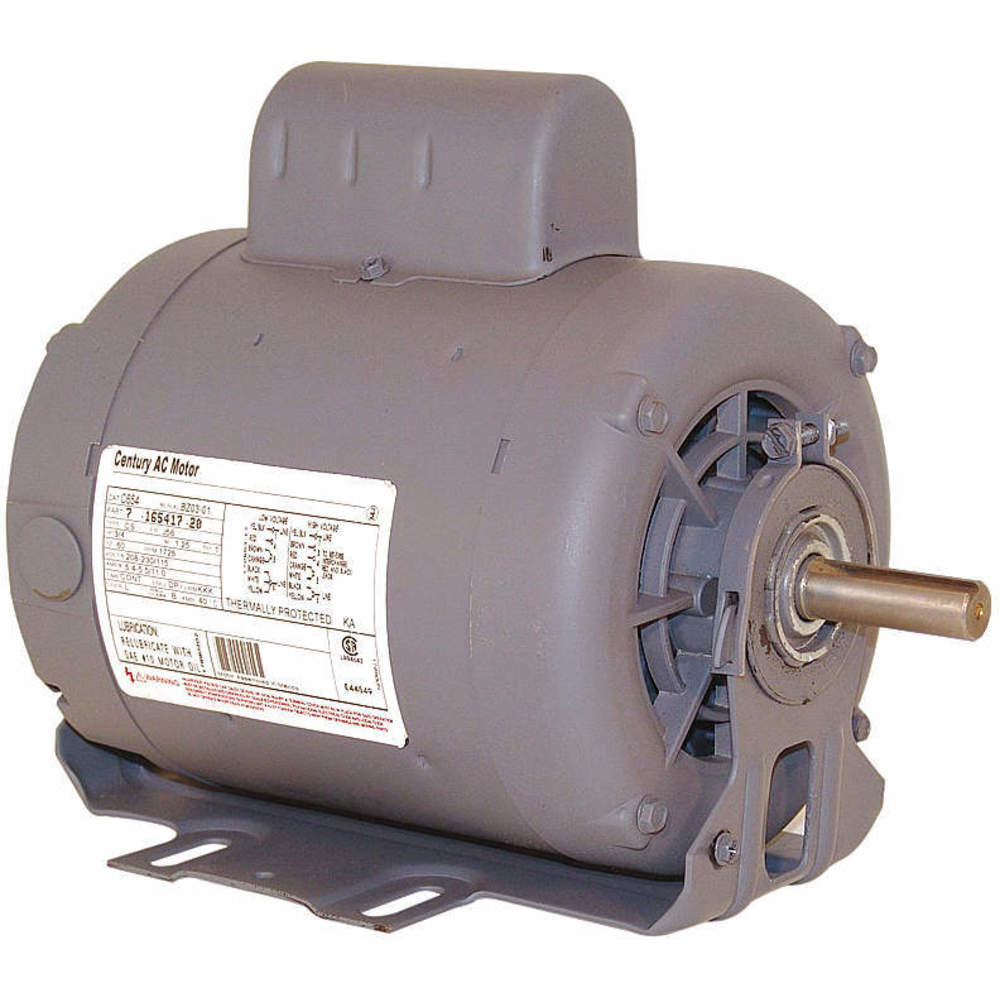

AO Smith B642 56 Frame 3/4 HP 3450 RPM 115 208-230-Volt 9.2-Amp Sleeve Bearing Cap Start Resilient

AO Smith B642 56 Frame 3/4 HP 3450 RPM 115 208-230-Volt 9.2-Amp Sleeve Bearing Cap Start Resilient

zoom

Brand: AO Smith
PartNumber: B642
Model: B642
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: Century Electric/AO Smith Motors Co
Label: Century Electric/AO Smith Motors Co

Attributes

Key	Value
Amps	4.7/4.6/9.2
B642 is listed in Centu.	Emerson 430, Marathon D.
Bearings	Sleeve
Body Dia.	6 1/2 in
Brand	Century
Capacitor	Included
Duty Cycle	Continuous
Enclosure	DP
Enclosure Type	ODP (Open Dripproof)
Frame	56
Full Load Amps	4.7-4.6/9.2
HP	3/4
Hz	60
Ins. Class	A
Insulation Class	A
International Shipping	No
Item	Belt Drive Motor
Length Less Shaft	9 3/16 in
Max. Ambient Temp.	40 Degrees C
Maximum Ambient Tempera.	40? C
Motor Application	HVAC/R
Motor Bearings	Sleeve
Motor Design	Capacitor-Start
Motor Diameter	6-1/2"
Motor Enclosure Design	Open Dripproof
Motor Frame Material	Steel
Motor Mounting Position	All Angle
Motor Mounting Type	Cradle Base
Motor Service Factor	1.25
Motor Shaft Rotation	CW/CCW
Motor Sub Application	Belt Drive Fan/Blower
Motor Thermal Protection	Auto
Mounting	Cradle
Mpn	B642
Nameplate RPM	3,450
No. of Speeds	1
Nominal Efficiency	72 %
Number of Speeds	1
Overall Length	11 1/8 in
Phase	1, Single
Product Type	Capacitor Start
Rotation	Reversible
RPM	3450
RPM Range	3,001-3,600
Service Factor (SF)	1.25
Shaft Dia.	5/8 in
Shaft Diameter	5/8" Keyed
Shaft Length	2 in, 1-7/8"
Ship Weight	27 lbs.
SKU	ZO-G2198664
Standards	UL Recognized, CSA Cert.
SubCategory	Motors/Ac Motors
Thermal Protection	Automatic
Usable @ 200V	No
Usable @ 208V	Yes
Voltage	115/208-230V AC, 115/20.
Voltage Compatibility	115/200-230V AC, 115/20.
Volts	115/208-230
Weight	27 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Global Industrial	B186115	217.95	1	In Stock		Century		217.95 @ 1
	Zoro	G2198664	314.99	1	In Stock		Century	27.2	314.99 @ 1
	MRO Supply	5918136	333.71	1	In Stock		Century		333.71 @ 1
	sustainablesupply.com	C1561069	360.74	1	In Stock		Century	27.2	360.74 @ 1
	grainger.ca	AOSB642	362.40945192	1	In Stock		CENTURY	27.2	362.40945192 @ 1
	emotorpro.com	B642	365.84	1	In Stock		Century	27.0	365.84 @ 1
	midwestapplianceparts.com	B642-AO-P	376.69	1	In Stock		AO Smith		376.69 @ 1
	simsupply.com	ZO-G2198664	384.78	1	In Stock		Century		384.78 @ 1
	industrialstores.com	B642	416.0	1	1		Century Motors by Regal Beloit		416.0 @ 1
	Raptor Supplies	AD8RQZ	525.3667965	1	In Stock		CENTURY		525.3667965 @ 1
