Description:

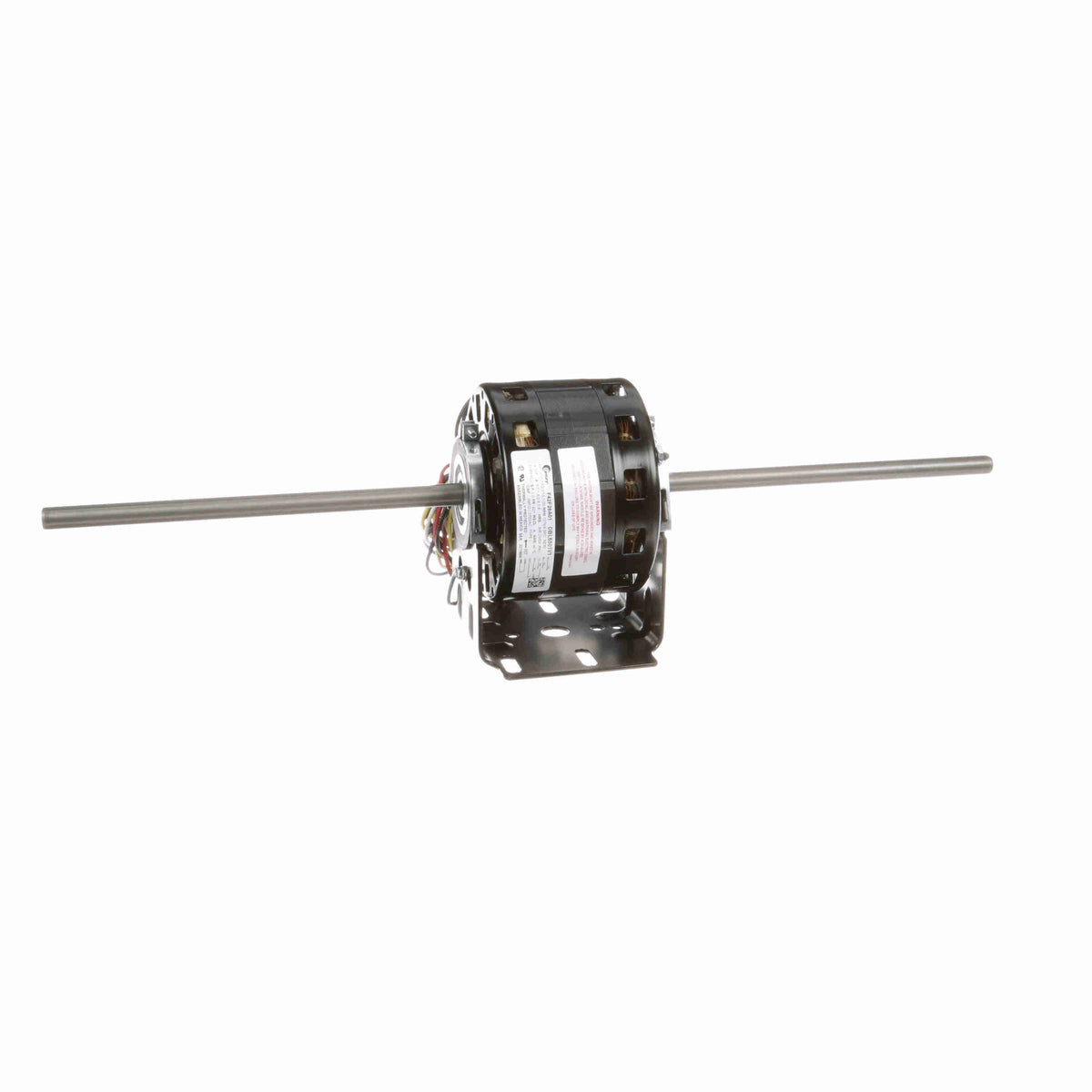

Product Type: PSC (Permanent Split Capacitor)HP: 1/20, 1/15, 1/12, 1/10RPM: 1075Volts: 115Amps: 1.7/1.6/0.9/0.8Hz: 60Phase: 1Frame: 42YEnclosure Type: OAO (Open Air Over)Mounting: CradleMotor Diameter: 5"Shaft Diameter: 1/2"Shaft Length: 9-5/16" x 9-5/16"Rotation: Double ShaftedNumber of Speeds: 4Service Factor (SF): 1
Attributes
| Key | Value |
|---|---|
| Amps | 1.7/1.6/0.9/0.8 |
| Bearings | Sleeve |
| Capacitor | 5MFD @ 370VAC (Included) |
| DBL6501V1 is listed in Century's cross reference as a substitute for the following | A.O. Smith F42F26A01, Dayton 4UU17, Dayton 5M040 |
| Duty Cycle | Continuous |
| Enclosure Type | OAO (Open Air Over) |
| Frame | 42Y |
| HP | 1/20, 1/15, 1/12, 1/10 |
| Hz | 60 |
| Insulation Class | A |
| Maximum Ambient Temperature | 40? C |
| Motor Diameter | 5" |
| Mounting | Cradle |
| Number of Speeds | 4 |
| Phase | 1 |
| Product Type | PSC (Permanent Split Capacitor) |
| Rotation | Double Shafted |
| RPM | 1075 |
| Service Factor (SF) | 1.00 |
| Shaft Diameter | 1/2" |
| Shaft Length | 9-5/16" x 9-5/16" |
| Ship Weight | 12 lbs. |
| Thermal Protection | Automatic |
| Volts | 115 |
