Description:
Amps: 1.8/2.0Bearings: BallDuty Cycle: Air OverEnclosure Material: Rolled SteelEnclosure Type: TEAO (Totally Enclosed Air Over)Frame: 48YHP: 1/3HP: 1/8Hz: 60Insulation Class: BManufacturer Model #: EM3459Maximum Ambient Temperature: 60? CMotor Diameter: 5.6"Motor Shell Length: 4-1/4"Mounting Orientation: All AngleMount
Attributes
| Key ^ | Value |
|---|---|
| Amps | 1.8/2.0 |
| Bearings | Ball |
| Duty Cycle | Air Over |
| Enclosure Material | Rolled Steel |
| Enclosure Type | TEAO (Totally Enclosed Air Over) |
| Frame | 48Y |
| HP | 1/3, 1/8 |
| Hz | 60 |
| Insulation Class | B |

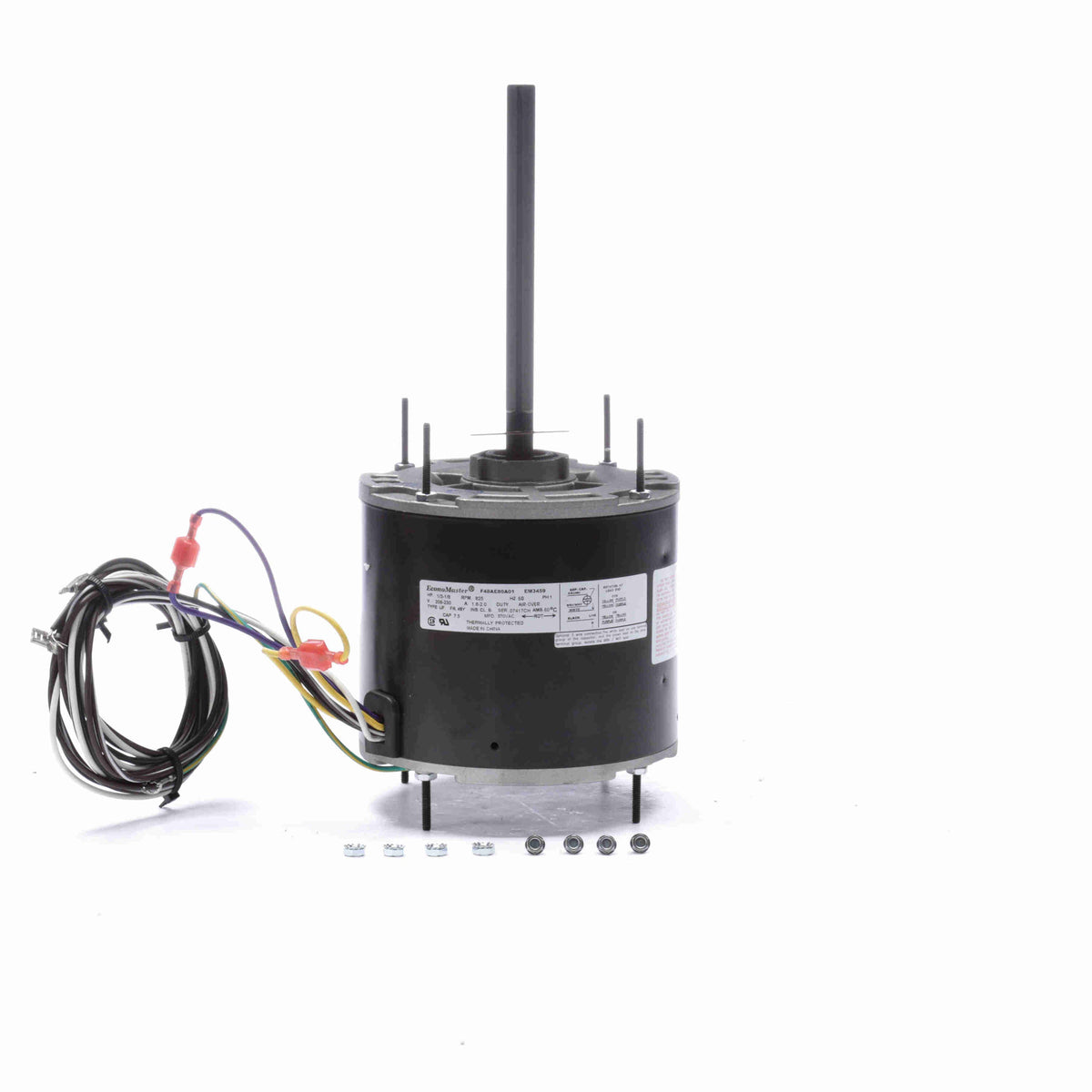

| Manufacturer Model # | EM3459 |
| Maximum Ambient Temperature | 60? C |
| Motor Diameter | 5.6" |
| Motor Shell Length | 4-1/4" |
| Mounting | Stud |
| Mounting Orientation | All Angle |
| Overall Length | 12.45" |
| Phase | 1 |
| Product Type | PSC (Permanent Split Capacitor) |
| Rotation | Reversible |
| RPM | 825 |
| Service Factor | 1.0 |
| Shaft Diameter | 1/2" |
| Shaft Length | 6.7" |
| Ship Weight | 15 lbs. |
| Thermal Protection | Automatic |
| Volts | 208, 230 |
