Description:

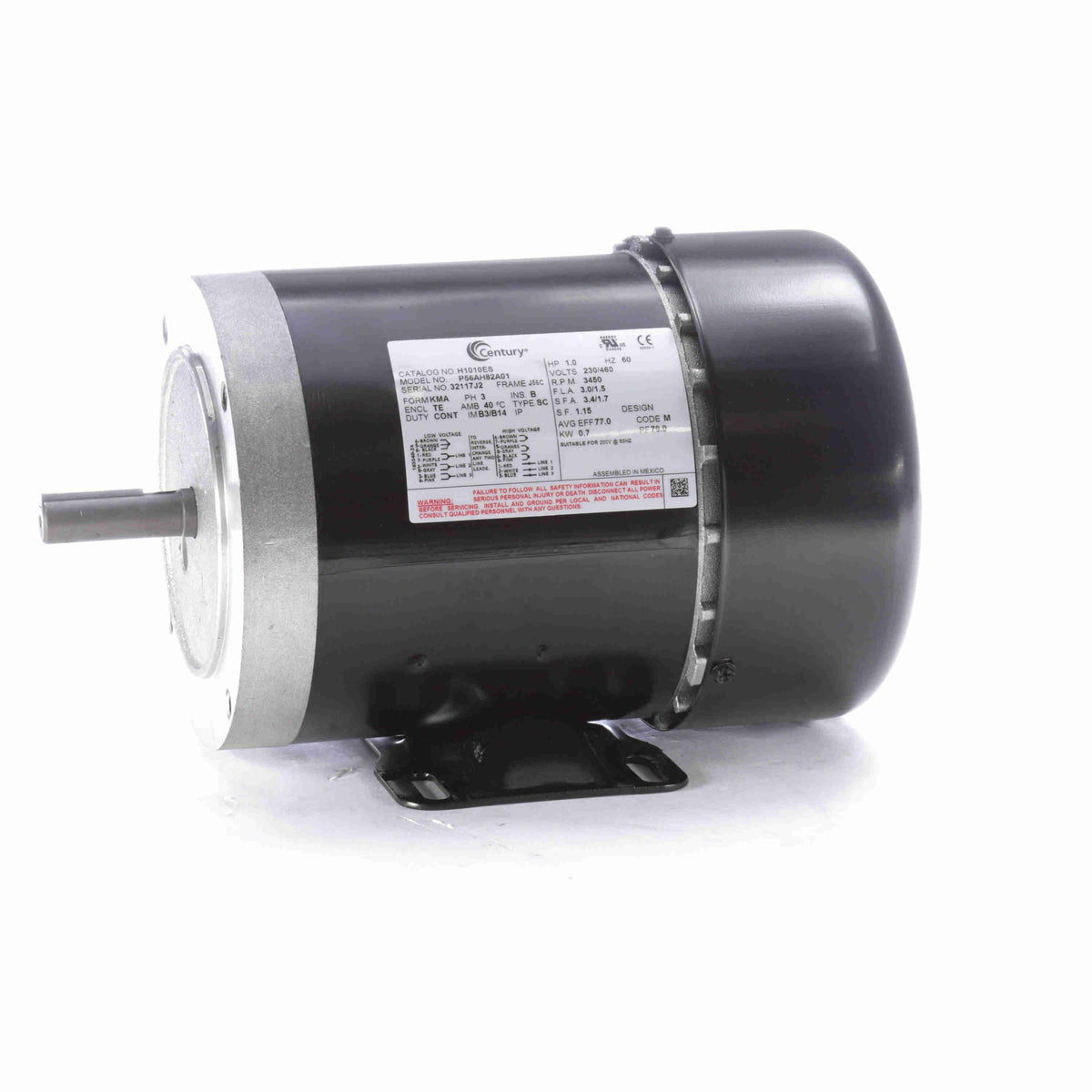

Amps: 3.0/1.5Bearings: BallDuty Cycle: ContinuousEnclosure Material: Rolled SteelEnclosure Type: TEFC (Totally Enclosed Fan Cooled)Frame: 56CHP: 1Hz: 60Insulation Class: BManufacturer Model #: H1010ESMaximum Ambient Temperature: 40? CMotor Shell Length: 5-1/8"Mounting: FaceOverall Length: 11.4"Phase: 3Product Type: Thr
Attributes
| Key | Value |
|---|---|
| Amps | 3.0/1.5 |
| Bearings | Ball |
| Duty Cycle | Continuous |
| Enclosure Material | Rolled Steel |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Frame | 56C |
| HP | 1 |
| Hz | 60 |
| Insulation Class | B |
| Manufacturer Model # | H1010ES |
| Maximum Ambient Temperature | 40? C |
| Motor Shell Length | 5-1/8" |
| Mounting | Face |
| Overall Length | 11.4" |
| Phase | 3 |
| Product Type | Three Phase |
| Rotation | Reversible |
| RPM | 3450 |
| Service Factor | 1.15 |
| Shaft Diameter | 5/8" |
| Shaft Length | 2.07 |
| Ship Weight | 25 lbs. |
| Volts | 230, 460 |
