Century Electric Motor H1022V1

B01CYTIQMI

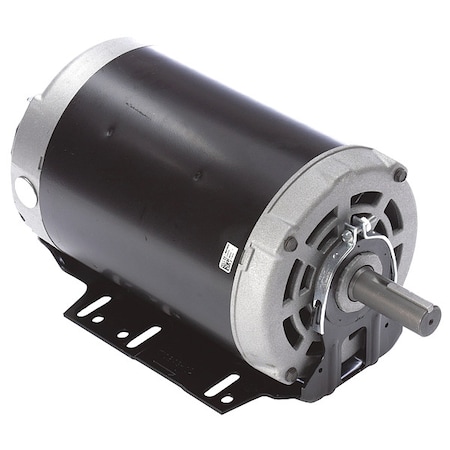

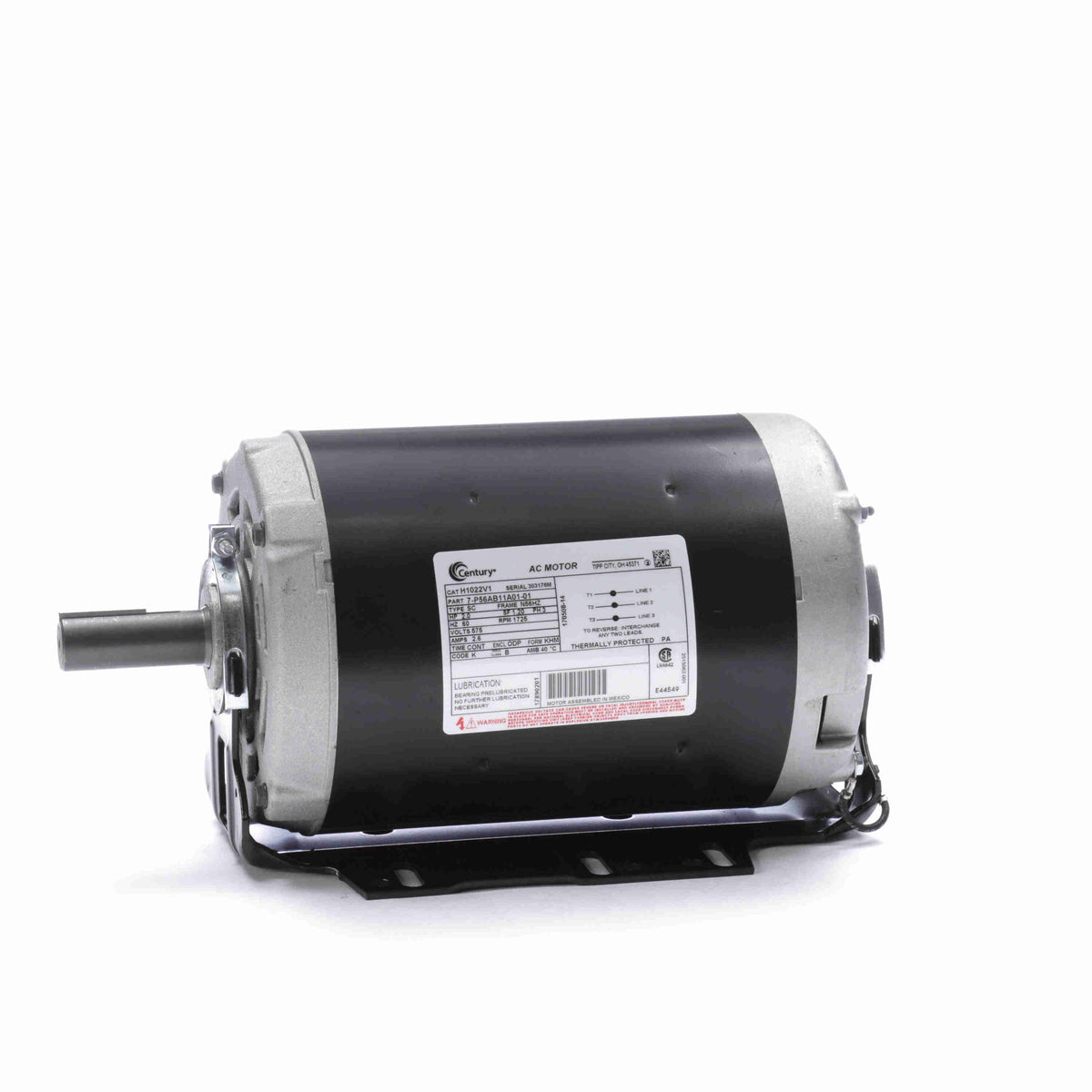

Century AO Smith H1022V1 3-Phase Resilient Motor, 2 HP, 1725 RPM, 575V, 56HZ Frame

Century AO Smith H1022V1 3-Phase Resilient Motor, 2 HP, 1725 RPM, 575V, 56HZ Framezoom

Attributes

Key Value
Amps2.6
BearingsBall
Body Dia.6.49"
CategoryElectric Motor
DutyContinuous
Duty CycleContinuous
EnclosureODP
Enclosure TypeODP (Open Dripproof)
FrameN56HZ, 56HZ
Frame Remarks575 VOLT
Full Load Amps2.6A
H1022V1 is listed in Ce.A.O. Smith 193339, A.O..
HP2, 2.0, 2.0 HP
Hz60
Ins. ClassB
Insulation ClassB
ItemMotor
Item ConditionFACTORY NEW
ManufacturerCentury
Manufacturers Warranty .1 yr.
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationOEM Replacement
Motor BearingsBall
Motor DesignPolyphase, Induction Ty.
Motor Diameter6-1/2"
Motor Enclosure DesignOpen Drip Proof
Motor Mounting TypeRigid Base
Motor Shaft RotationReversible Counterclock.
Motor Sub ApplicationGeneral Purpose Motor
MountingCradle
mountingRigid Base
Nameplate RPM1725 rpm
Number of Shafts1
Number of Speeds1
Overall Length13.06"
Phase3
Product Type3 Phase
RotationReversible
RPM1725, 1800, 1700 - 1800
Service Factor (SF)1.20
Shaft Dia.7/8"
Shaft Diameter7/8" Keyed
Shaft Length2-5/16", 2.31"
Ship Weight35 lbs.
StandardsUL Recognized, CSA Cert.
Thermal ProtectionAutomatic
Voltage575V, 575
Volts575

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomemotorpro.comH1022V1451.191In StockCentury35.0451.19 @ 1
thumbzoommidwestapplianceparts.comH1022V1-AO-P498.31In StockAO Smith498.3 @ 1
thumbzoomMRO Supply5918496588.641In StockCentury588.64 @ 1
thumbzoomZoroG0793138588.991In StockCentury35.0588.99 @ 1
thumbzoomDealers ElectricH1022V1627.881In StockCentury35.0627.88 @ 1
thumbzoomsustainablesupply.comC3017125806.561In StockCentury35.0806.56 @ 1
