mpn:
brand:
manufacturer:
MPN:
Description:

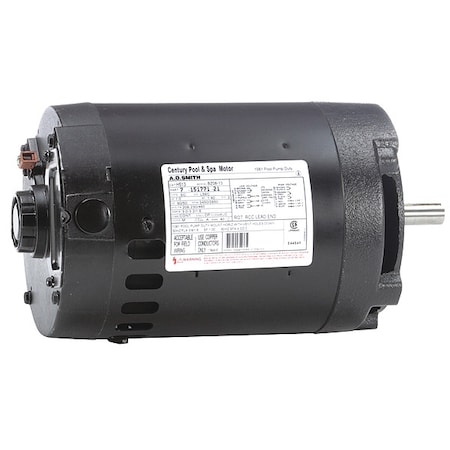

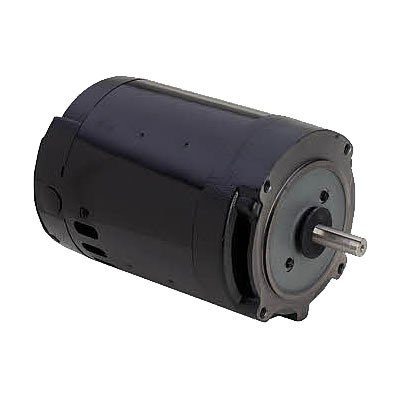

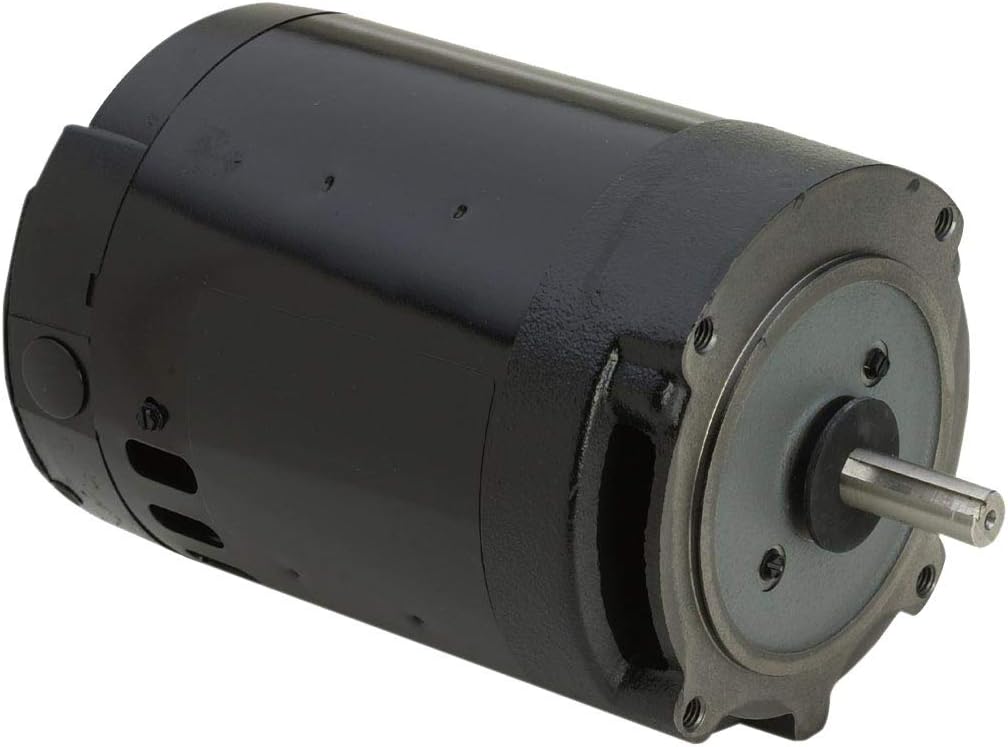

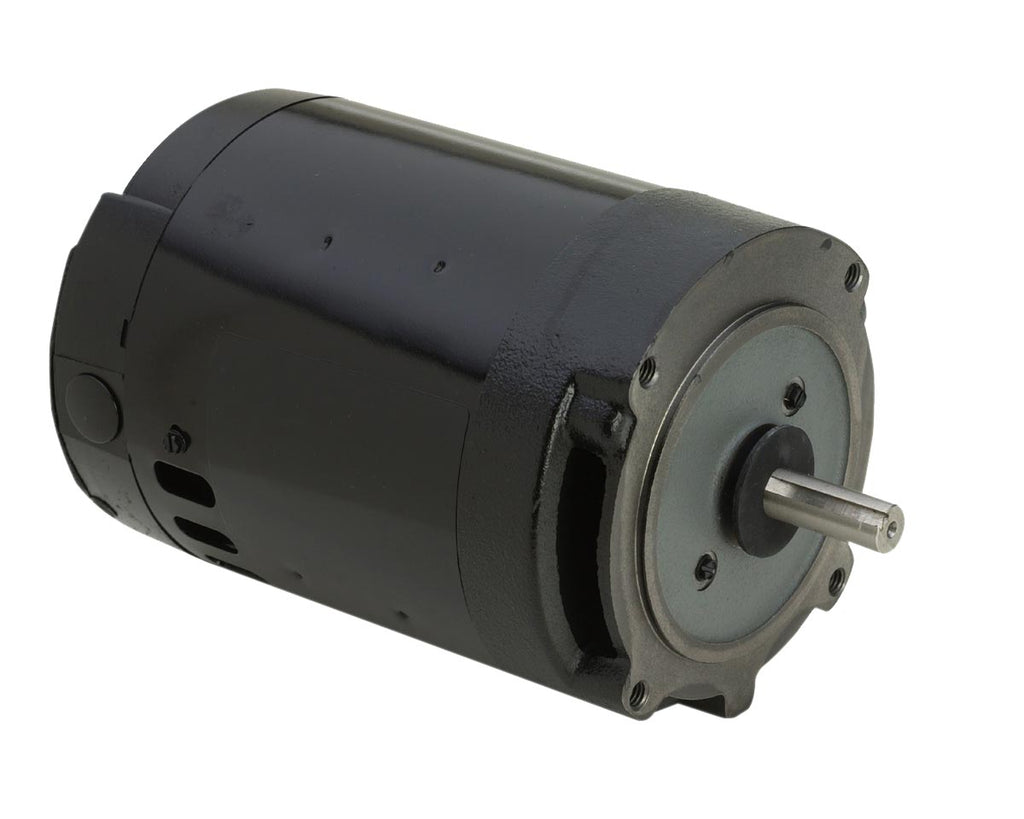

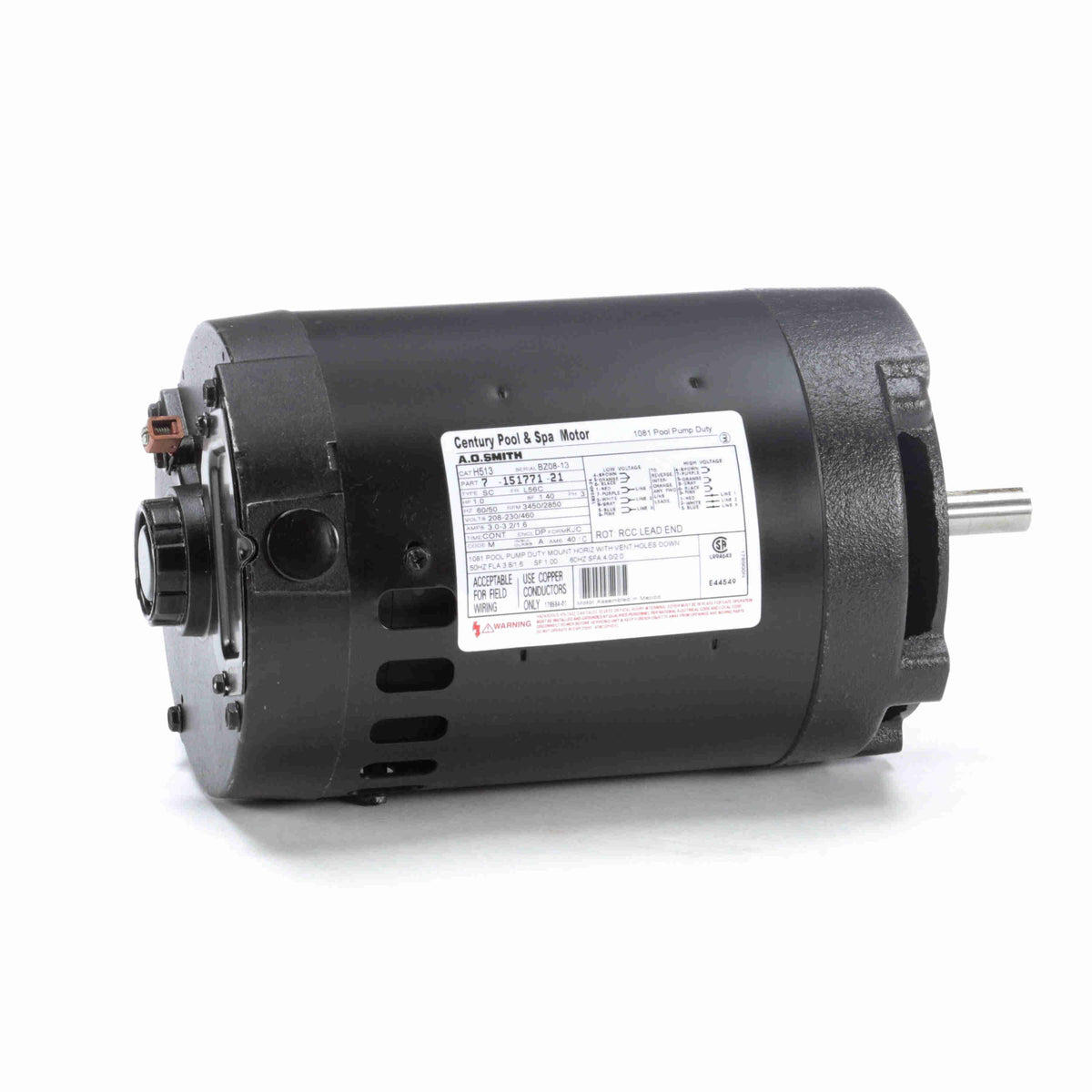

Century 1hp 230/460v 3-Phase 1.4SF 6.5in Barrel Diameter Keyed Motor
Weight:
1.6875
Weight:
1.6875 LB
Preferred Price:
435.72
Price:
435.72
Min Simple Price:
246.17
Absolute Min Price:
349.56
Min Price:
349.56
Dimensions:
[1.0, 1.0, 1.0]
qty:
21
simpleSku:
NjIzOQ:::H513
sku:
NjIzOQ::EO:H513@y0
condition:
11
seller:
emotorpro.com
amzMan:
century electric/ao smith motors co
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amps | 3/3.2/1.6 |
| ASIN | B002NJMFXQ |
| Bearings, Motor Bearings | Ball |
| Body Dia. | 26.3 in |
| Country of Origin (subject to change) | Mexico |
| Duty Cycle | Continuous |
| Enclosure Type | ODP (Open Dripproof) |
| Frame | 56C |
| Full Load Amps, Full Load Amps @ 50Hz | 3.2-3.0/1.60 |
| H513 is listed in Century's cross reference as a substitute for the following | A.O. Smith 151771, Century 151771 |
| Height | 24 3/16 in |
| HP, HP @ 50Hz, No. of Speeds | 1 |
| Hz | 50/60, 60/50 |
| Ins. Class, Insulation Class | A |
| Item | Pool Pump Motor |
| Length Less Shaft | 10 9/16 in |
| Manufacturer | Century |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Temperature | 40? C |
| Motor Application | Pump |
| Motor Design | 3-Phase |
| Motor Diameter | 6-1/2" |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.6 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Pool and Spa Pump |
| Motor Thermal Protection, Thermal Protection | None |
| Mounting | C-Face |
| Nameplate RPM | 3450 rpm |
| Number of Speeds | 2 |
| Overall Length | 12 5/8 in |
| Part Number | H513 |
| Phase | 3, Three |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 2850/3450 |
| RPM @ 50Hz | 2,850 |
| Service Factor (SF) | 1.40 |
| Service Factor @ 50Hz | 1.4 |
| Shaft Dia. | 5/8 in |
| Shaft Diameter | 5/8" Keyed |
| Shaft Length | 2 1/16 in |
| Shaft Material | Stainless Steel |
| Ship Weight | 27 lbs. |
| Standards | CSA, UL |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208-230/460V AC |
| Voltage @ 50Hz, Volts | 208-230/460 |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC |
| Weight | 27 lb |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | emotorpro.com | H513 | 246.17 | 246.17 | 1 | In Stock | Century | 27.0 | 246.17 @ Qty: 1+ | |
 | sustainablesupply.com | C2091022 | 257.59 | 257.59 | 1 | In Stock | Century | 15.0 | 257.59 @ Qty: 1+ | |
 | midwestapplianceparts.com | H513-AO-P | 265.73 | 265.73 | 1 | In Stock | AO Smith | 265.73 @ Qty: 1+ | ||
 | industrialstores.com | H513 | 290.93 | 290.93 | 1 | In Stock | 19 | Century Motors by Regal Beloit | 290.93 @ Qty: 1+ | |
 | Zoro | G3306926 | 339.23 | 339.23 | 1 | In Stock | 26 | Century | 27.0 | 339.23 @ Qty: 1+ |
