mpn:
brand:
manufacturer:
MPN:
Weight:
1.875
Weight:
1.6875 LB
Preferred Price:
528.23
Price:
528.23
Min Simple Price:
298.44
Absolute Min Price:
423.78
Min Price:
423.78
Dimensions:
[1.0, 1.0, 1.0]
qty:
21
simpleSku:
NjIzOQ:::H514
sku:
NjIzOQ::HK:H514@y0
condition:
11
seller:
Wild West Pool Supplies
amzMan:
century electric/ao smith motors co
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amps | 3/3.2/1.6 |
| Bearings, Motor Bearings | Ball |
| Body Dia. | 6.4 in |
| Bolt Circle Dia. | 5 15/16 in |
| Country of Origin (subject to change) | Mexico |
| Duty Cycle | Continuous |
| Enclosure Type | ODP (Open Dripproof) |
| Frame | 56J |
| Full Load Amps, Full Load Amps @ 50Hz | 3.2-3.0/1.60 |
| H514 is listed in Century's cross reference as a substitute for the following | A.O. Smith 151772, A.O. Smith 187927, Century 151772 |
| Height | 6 1/2 in |
| HP, HP @ 50Hz, No. of Speeds | 1 |
| Hz | 50/60, 60/50 |
| Ins. Class, Insulation Class | A |

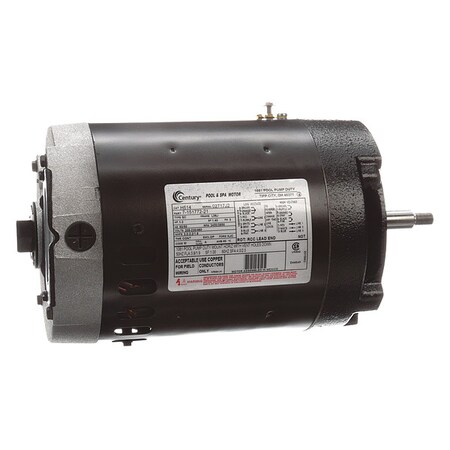

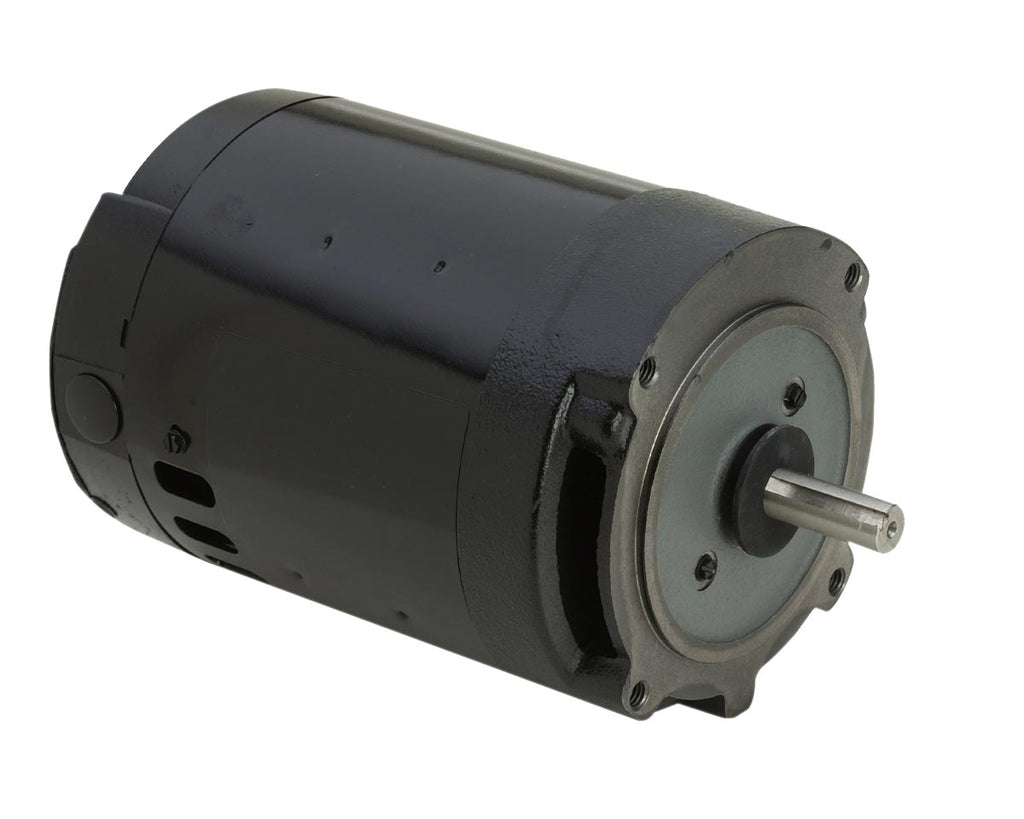

| Item | Pool Pump Motor |
| Length Less Shaft | 9 9/16 in |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Temperature | 40? C |
| Motor Application | Pump |
| Motor Design | 3-Phase |
| Motor Diameter | 6-1/2" |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor, Service Factor @ 50Hz | 1.4 |
| Motor Shaft Design, Shaft Diameter | Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Pool and Spa Pump |
| Motor Thermal Protection, Thermal Protection | None |
| Mounting | C-Face |
| Nameplate RPM | 3450 rpm |
| Number of Speeds | 2 |
| Overall Length | 12 1/8 in |
| Phase | 3, Three |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 2850/3450 |
| RPM @ 50Hz | 2,850 |
| Service Factor (SF) | 1.40 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 9/16 in |
| Shaft Material | Stainless Steel |
| Ship Weight | 27 lbs. |
| Standards | CSA, UL |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208-230/460V AC |
| Voltage @ 50Hz, Volts | 208-230/460 |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC |
| Weight | 27 lb |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Wild West Pool Supplies | H514 | 298.44 | 298.44 | 1 | In Stock | A.O. Smith | 1.0 | 298.44 @ Qty: 1+ | ||
 | cshincorporated.com | UH514 | 326.28 | 326.28 | 1 | In Stock | AO Smith / Century | 30.0 | 326.28 @ Qty: 1+ | |
 | emotorpro.com | H514 | 368.8 | 368.8 | 1 | In Stock | Century | 27.0 | 368.8 @ Qty: 1+ | |
 | sustainablesupply.com | C2091023 | 376.96 | 376.96 | 1 | In Stock | Century | 15.0 | 376.96 @ Qty: 1+ | |
 | midwestapplianceparts.com | H514-AO-P | 394.16 | 394.16 | 1 | In Stock | AO Smith | 394.16 @ Qty: 1+ | ||
 | Zoro | G0787915 | 18103.0 | 372921.8 | 50 | In Stock | 25 | Century | 27.0 | 18103.0 @ Qty: 50+ |
