mpn:
brand:
manufacturer:
MPN:
Description:

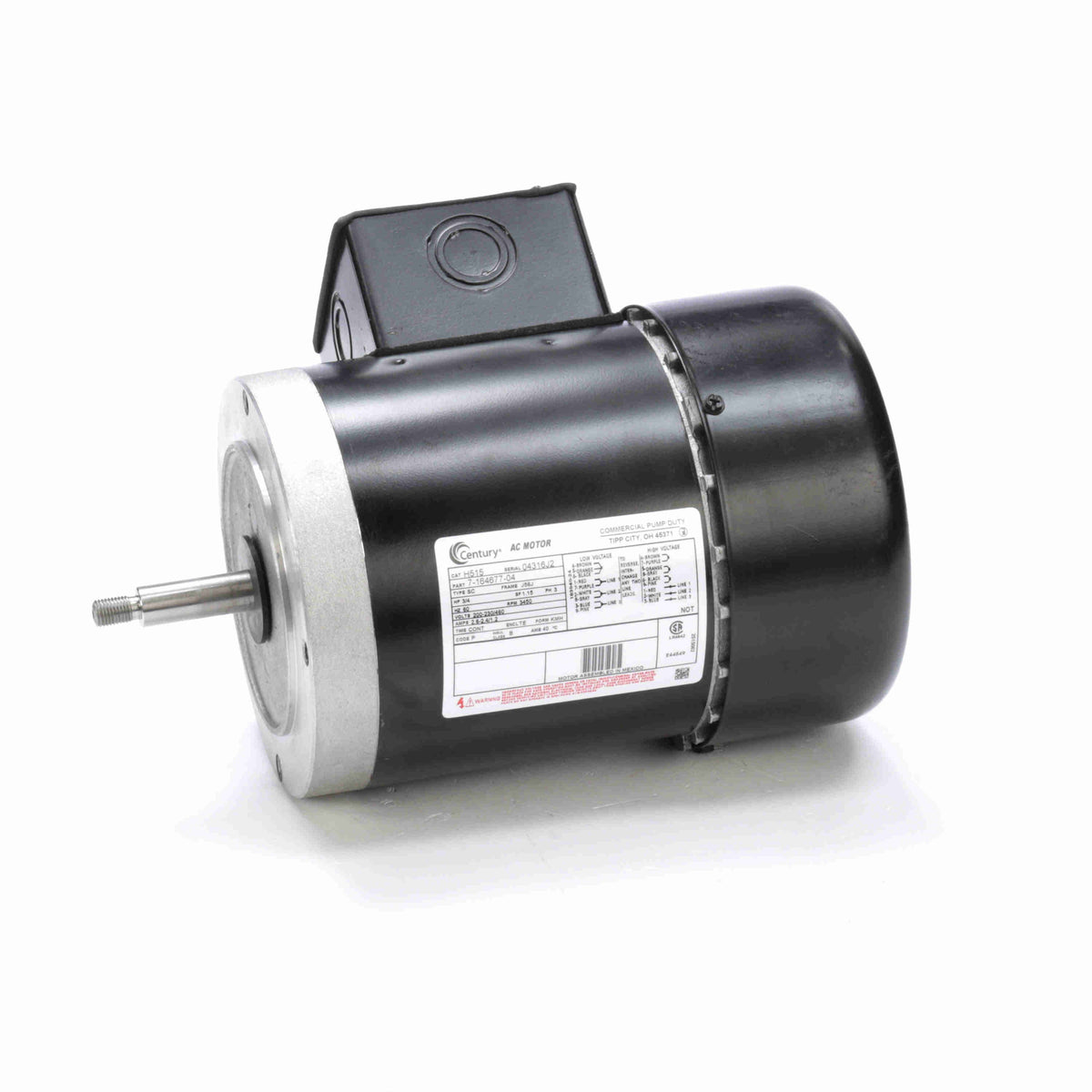

Product Type: 3 PhaseHP: 3/4RPM: 3450Volts: 200-230/460Amps: 2.6/2.4/1.2Hz: 60Phase: 3Frame: 56JEnclosure Type: TEFC (Totally Enclosed Fan Cooled)Mounting: C-FaceMotor Diameter: 6-1/2"Shaft Diameter: ThreadedRotation: ReversibleNumber of Speeds: 1Service Factor (SF): 1.15Bearings: BallThermal Protection: NoneMaximum Am
Attributes
| Key ^ | Value |
|---|---|
| Amps | 2.6/2.4/1.2 |
| Bearings | Ball |
| Duty Cycle | Continuous |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Frame | 56J |
| H515 is listed in Century's cross reference as a substitute for the following | A.O. Smith 164677, A.O. Smith 327P879, A.O. Smith ECT3072, A.O. Smith P56K2UE102, A.O. Smith P56K2UE103, Baldor JM3463, Century 164677, Century H515, Franklin 12351, GE K232, Dayton 3N724, Dayton 4N072, Leeson 114208, Packard 93203, Universal Electric H515, Baldor JM3460 |
| HP | 3/4 |
| Hz | 60 |
| Insulation Class | B |
| Maximum Ambient Temperature | 40? C |
| Motor Diameter | 6-1/2" |
| Mounting | C-Face |
| Number of Speeds | 1 |
| Phase | 3 |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 3450 |
| Service Factor (SF) | 1.15 |
| Shaft Diameter | Threaded |
| Ship Weight | 26 lbs. |
| Thermal Protection | None |
| Volts | 200-230/460 |
