Description:

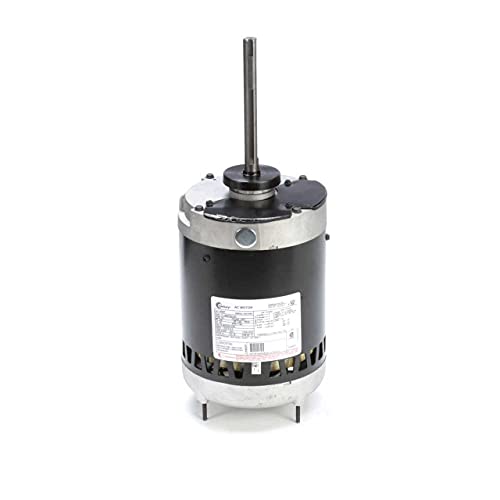

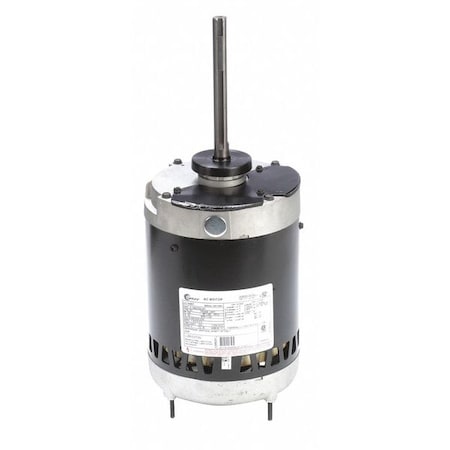

Condenser Fan Motor, Three Phase, Motor Design 3-Phase, 3/4 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 200-230/460V AC, 1.50/3.0-2.8 Full Load Amps, 56Y Frame, Output Watts 560 W, 60 Hz, Usable @ 208V Yes, Usable @ 200V Yes, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band/Stud, Motor Frame Material Steel
Weight:
1.73125
Weight:
28.0 LB
Preferred Price:
268.7
Price:
268.7
Min Simple Price:
151.81
Absolute Min Price:
215.57
Min Price:
215.57
Dimensions:
[20.0, 11.0, 9.0]
qty:
21
simpleSku:
DM2MTQ:::H567
sku:
DM2MTQ::EC:H567@y0
condition:
11
seller:
MRO Supply
amzMan:
century
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amps | 1.5/2.8/3 |
| ASIN | B000LDNTLS |
| Batteries Required?, International Shipping | No |
| Bearings | Ball |
| Body Dia. | 6 1/2 in |
| Bolt Circle Dia. | 5 13/16 in |
| Brand, Manufacturer | Century |
| Category | Electric Motor |
| Current Stock | 9 |
| Date First Available | September 25, 2005 |
| Duty, Duty Cycle | Continuous |
| Enclosure | OPEN |
| Enclosure Type | OAO (Open Air Over) |
| Features | , Quick Connect Design, Reversible |
| Frame | 56Y |
| Full Load Amps | 1.50/3.0-2.8 |
| GTIN | 663001044338 |
| H567 is listed in Century's cross reference as a substitute for the following | A.O. Smith 182753, A.O. Smith P48K6A1, A.O. Smith P48K6A2, A.O. Smith P48K6A8, A.O. Smith P48SS6V1, Baldor CFM3146A, Carrier/BDP P257-E378, Century 165835, Century 182753, Century H565, Century H567, Emerson 1817, Emerson K1817, Fasco K1817, GE 5K46LN6033AS, GE 5K46LN6033S, GE 5K49QG2724, Dayton 3N646, Dayton 4MB85, Johnstone Supply S88-154, Leeson 116773, Packard 77602, Packard 93109, Trane MOT 6075, A.O. Smith P48K6A5, A.O. Smith P48K6A7, A.O. Smith P48ST6V1, GE K378, Dayton 3N496, Marathon W56T1105301, Marathon X501, Universal Electric 718 |
| HP | 3/4, 0.75 |
| Hz | 60 |
| Insulation Class | B |
| Item | Condenser Fan Motor |
| Item Condition | FACTORY NEW |
| Item Dimensions LxWxH | 19.8 x 8.2 x 10.6 inches |
| Item model number, Mpn, Part Number | H567 |
| Lead Time | Expected to ship in 1-2 business days |
| Length Less Shaft | 10 5/16 in |
| Material | HAWA |
| Maximum Ambient Temperature | 60? C |
| Motor Application | HVAC/R |
| Motor Diameter | 6-1/2" |
| Motor Mounting Position | Vertical Shaft Up |
| Motor Mounting Type | Round Belly Band |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| mounting | **Round Belly Band |
| Mounting | Band/Ring/Stud |
| Mounting Stud Length | 1 1/16 in |
| Nameplate RPM | 1,140 |
| No. of Speeds, Number of Speeds | 1 |
| Nominal Efficiency | 78 % |
| Overall Length | 16 3/8 in |
| Phase | 3, Three |
| Product Dimensions | 19.8 x 8.2 x 10.6 inches; 28 Pounds |
| Product Type | 3 Phase |
| Product with faster shipping | true |
| Rotation | Reversible |
| RPM | 1140, 1200 |
| Service Factor (SF) | 1.00 |
| Shaft Dia. | 5/8 in |
| Shaft Diameter | 5/8" Keyed |
| Shaft Length | 6 1/16 in, 6" |
| Ship Weight | 26 lbs. |
| Shipping | undefined (Fixed Shipping Cost), Calculated at Checkout |
| SKU | ZO-G3149921 |
| Stud Size | #10-32 |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | Automatic |
| UNSPSC Code | 39120000 |
| Voltage | 200/230/460, 200-230/460V AC |
| Volts | 460/200/230, 200-230/460 |
