Attributes
| Key ^ | Value |
|---|---|
| Body Dia. | 6-1/2" |
| Country of Origin (subject to change) | Mexico |
| Duty | Continuous |
| Features | Auto Protector, Quick Connect Design, Reversible |
| Frame | 56Y |
| Full Load Amps | 5.3-5.2/2.6 |
| HP, No. of Speeds | 1 |
| Hz | 60 |
| Ins. Class | B |

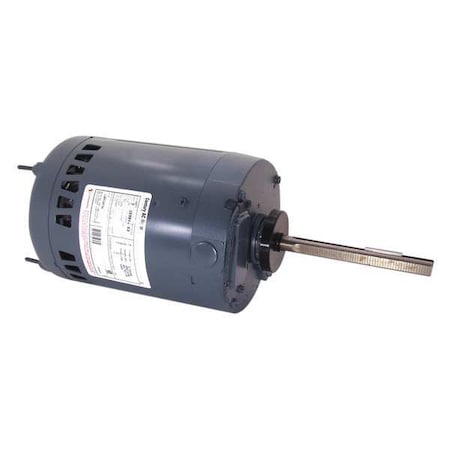

| Item | Condenser Fan Motor |
| Length Less Shaft | 10-7/8" |
| Max. Ambient Temp. | 60 Degrees C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Position | Vertical Shaft Up |
| Motor Mounting Type | Stud |
| Motor Service Factor | 1.00 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1140 |
| Nominal Efficiency | 75.0% |
| Overall Length | 16-7/8" |
| Phase | 3 |
| RPM Range | 1101-1200 |
| Shaft Dia. | 5/8" |
| Shaft Length | 6" |
| Standards | UL Recognized (E46412/E44549), CSA Certified (LR43341/LR4642) |
| Voltage | 200-230/460 |
| Voltage Compatibility | 200, 208, 230, 240, 460, 200-230, 200-230/440, 208-230/460, 220/460, 200-230/460, 230/460 |
