mpn:
brand:
manufacturer:
MPN:
Description:

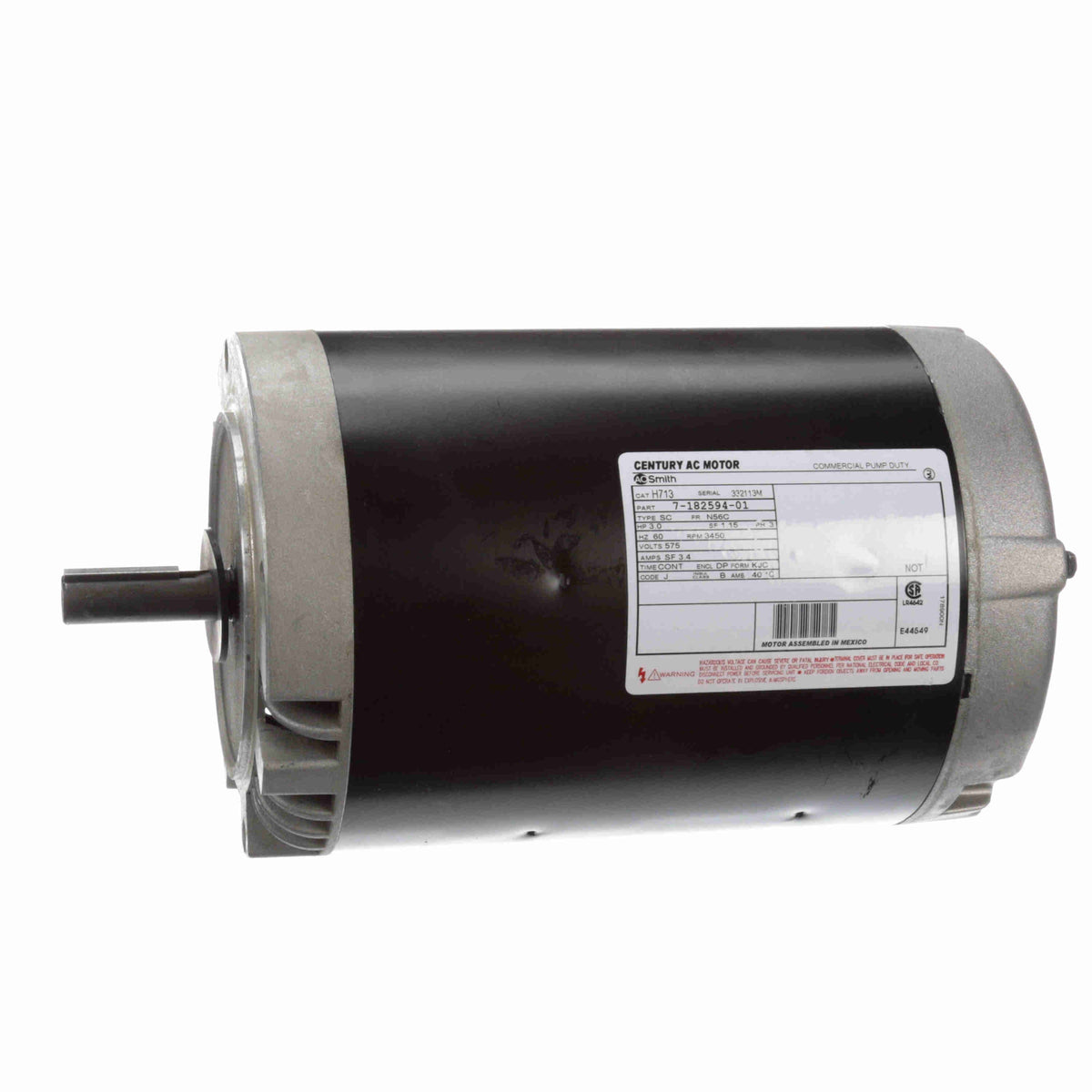

Product Type: 3 PhaseHP: 3RPM: 3450Volts: 575Amps: 3.4Hz: 60Phase: 3Frame: 56CEnclosure Type: ODP (Open Dripproof)Mounting: C-FaceMotor Diameter: 6-1/2"Shaft Diameter: 5/8" KeyedRotation: ReversibleNumber of Speeds: 1Service Factor (SF): 1.15Bearings: BallThermal Protection: NoneMaximum Ambient Temperature: 40? CInsula
Attributes
| Key ^ | Value |
|---|---|
| Amps | 3.4 |
| Bearings | Ball |
| Duty Cycle | Continuous |
| Enclosure Type | ODP (Open Dripproof) |
| Frame | 56C |
| H713 is listed in Century's cross reference as a substitute for the following | A.O. Smith 182594, Century 182594 |
| HP, Phase | 3 |
| Hz | 60 |
| Insulation Class | B |
| Maximum Ambient Temperature | 40? C |
| Motor Diameter | 6-1/2" |
| Mounting | C-Face |
| Number of Speeds | 1 |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 3450 |
| Service Factor (SF) | 1.15 |
| Shaft Diameter | 5/8" Keyed |
| Ship Weight | 33 lbs. |
| Thermal Protection | None |
| Volts | 575 |
