Description:

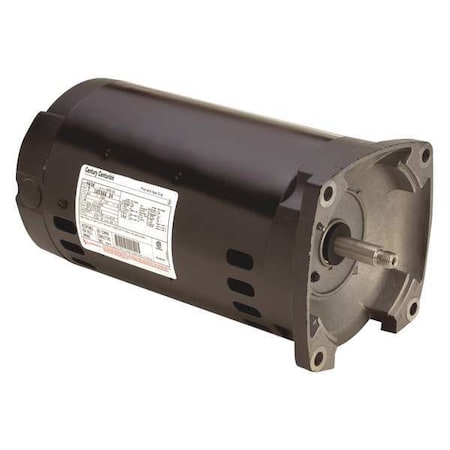

Pool Pump Motor, Bolt Circle Dia. 7 1/8 in, Duty Cycle Continuous, Frame 56Y, Hz 60, Full Load Amps 9.8-9.6/4.8, Height 6 1/2 in, HP 3, Ins. Class B, Length Less Shaft 13 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
Attributes
| Key ^ | Value |
|---|---|
| Bolt Circle Dia. | 7 1/8 in |
| Frame | 56Y |
| Full Load Amps | 9.8-9.6/4.8 |
| Height | 6 1/2 in |
| HP | 3 |
| Hz | 60 |
| Ins. Class | B |
| Item | Pool Pump Motor |
| Length Less Shaft | 13 in |
| Motor Design | 3-Phase |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | CW/CCW |
| Nameplate RPM | 3,450 |
| Overall Length | 13 7/8 in |
| Phase | Three |
| RPM Range | 3,001-3,600 |
| Shaft Dia. | 5/8 in |
| Shaft Dia. (In.) | 5/8 |
| Shaft Length | 15/16 in |
| Voltage | 208-230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC |
