Century H767

Century H767

mpn:
H767
brand:
CENTURY
manufacturer:
CENTURY
MPN:
H767
Weight:
32.7
Weight:
2.1875 LB
Preferred Price:
468.87
Price:
468.87
Min Simple Price:
264.9
Absolute Min Price:
376.15
Min Price:
376.15
Dimensions:
[17.0, 7.0, 7.0]
qty:
21
simpleSku:
DM2MTQ:::H767
sku:
DM2MTQ::UE:H767@y0
condition:
11
seller:
Square One
amzMan:
century
HazMat:
False
DropShip:
True

Attributes

Key ^Value
Amps3.0/5.8-6.0
ASINB07FMRT43B
Batteries Required?, International ShippingNo
Bearings, Motor BearingsBall
Body Dia., Motor Diameter6-1/2"
Brand, ManufacturerCentury
CategoryElectric Motor
Current Stock47
DutyContinuous Air-Over
Duty CycleContinuous
EnclosureODP, OPAO
Enclosure TypeODP (Open Dripproof)
FeaturesAuto Protector, Quick Connect Design, Reversible
Frame56Y
Full Load Amps5.8 to 6.0/3.0
H767V1 is listed in Century's cross reference as a substitute for the following182759, 165833, 182759, 193927, H765, H766, K1819, 4MB83, S88-156, MFK-12276, 713012C-01, 879-292251-00, 879-292252-00, 879-417614-00, 77604, MOT 1272, MOT 1273, MOT 1274, MOT 2464, MOT 6077, FC3156, P48SX6V3, P48SX6V3A1, P48SX6V4A1, Carrier/BDP HD54SX680, Carrier/BDP P257-E380, Carrier/BDP P257-X503, H767, F5030, 10542, 3N470, 3N648, S88-408, M2-1134, W56T1105303, 720, CFM3166A, 1819, D6610, 111148, X503, K380
HP1.5, 1-1/2
Hz60
Ins. Class, Insulation ClassB
ItemCondenser Fan Motor
Item ConditionFACTORY NEW
Item Package Quantity, No. of Speeds, Number of Speeds, Package Quantity1
Lead TimeExpected to ship in 1-2 business days
Length Less Shaft10 7/8 in
Max. Ambient Temp.60 Degrees C
Maximum Ambient Temperature60? C
Motor ApplicationHVAC/R
Motor Design3-Phase
Motor Enclosure DesignOpen Air-Over
Motor Mounting PositionVertical Shaft Up
Motor Mounting TypeStud
Motor Service Factor, Service Factor (SF)1.00
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Sub ApplicationCondenser Fan
Motor Thermal ProtectionAuto
MountingBand/Ring/Stud
mountingSpecial
Mpn, Part NumberH767V1
Nameplate RPM1,140
Nominal Efficiency0.78
Overall Length16-7/8"
Phase3
Product Type3 Phase
RotationReversible
RPM1140, 1100 - 1200, 1200
Shaft Dia.5/8"
Shaft Diameter5/8" Keyed
Shaft Length6", 6 in
Ship Weight34 lbs.
SKUZO-G3701518
StandardsUL Recognized (E46412/E44549), CSA Certified (LR43341/LR4642)
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
Voltage200-230/460
Voltage, Volts200/230/460
Volts460/200-230 Volt

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomSquare OneH767264.9264.91In StockCentury264.9 @ Qty: 1+
thumbzoomAmazonSCB07FMRT43B308.95308.951In StockCentury Electric Motor308.95 @ Qty: 1+
thumbzoomktool.netH767V1379.3379.31In StockCentury379.3 @ Qty: 1+
thumbzoomcshincorporated.comUH767383.46383.461In StockAO Smith / Century33.0383.46 @ Qty: 1+
AmazonTPB07GNBLBTP404.44404.441In Stock2CENTURY MOTORS404.44 @ Qty: 1+
grainger.caAOSH767416.83764386416.837643861In StockCENTURY34.1416.83764386 @ Qty: 1+
thumbzoomemotorpro.comH767V1426.75426.751In StockCentury34.0426.75 @ Qty: 1+
thumbzoommidwestapplianceparts.comH767V1-AO-P478.87478.871In StockAO Smith478.87 @ Qty: 1+
thumbzoomNational Supply NetworkB244637518.61518.611In StockAO SMITH518.61 @ Qty: 1+
thumbzoomGlobal IndustrialWBB244637519.0519.01In StockCentury519.0 @ Qty: 1+
hvacdiscountstore.comCEN--H767V1532.11532.111In StockCENTURY MOTORS532.11 @ Qty: 1+
thumbzoomMRO Supply5812559568.01568.011In StockCentury568.01 @ Qty: 1+
thumbzoomsimsupply.comZO-G3701518574.02574.02147Century574.02 @ Qty: 1+
thumbzoomVoomi SupplyH767576.11576.111In StockCentury Motors576.11 @ Qty: 1+
thumbzoomDealers ElectricH767V1605.88605.881In StockCentury35.0605.88 @ Qty: 1+
thumbzoomRaptor SuppliesCD3WFG623.7606375623.76063751In StockCENTURY623.7606375 @ Qty: 1+
thumbzoomptacsolutions.comH767647.64647.641In StockAO SMITH MAGNETEK647.64 @ Qty: 1+
thumbzoomZoroG004936913713.99713.991In StockA.O. Smith713.99 @ Qty: 1+
uri.comH767979.74979.741In StockCentury34.0979.74 @ Qty: 1+
B000LDF2UE
Century H767

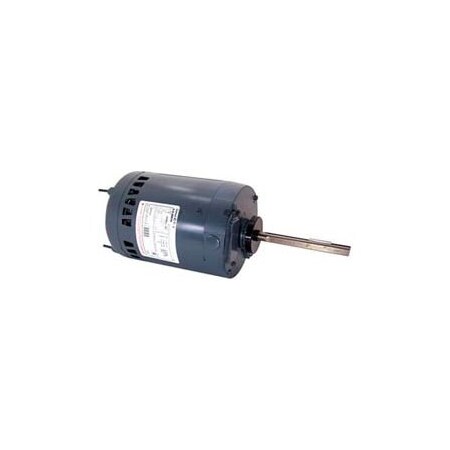

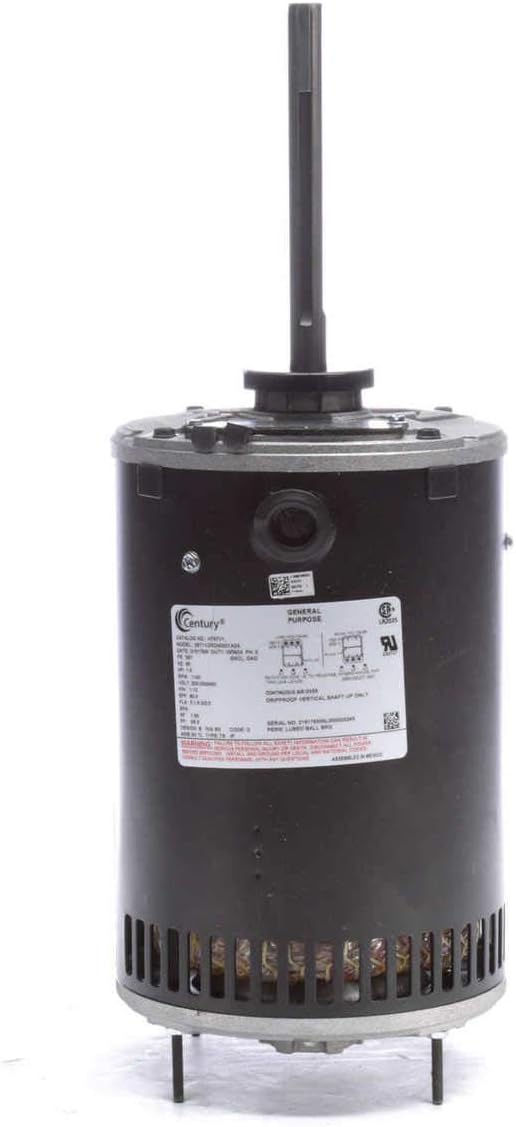

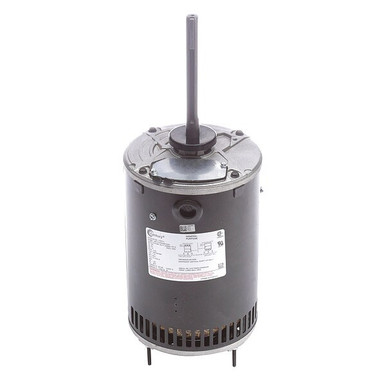

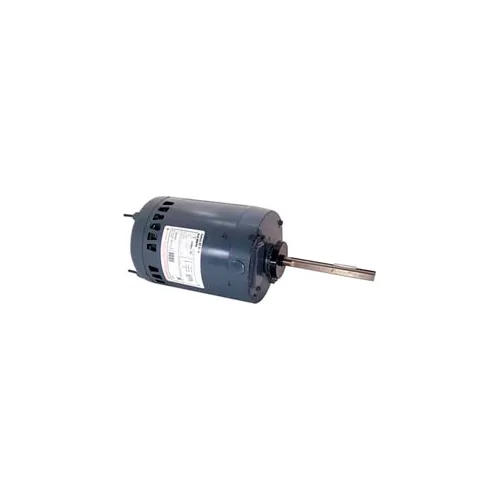

Fan Motor, 1-1/2 HP, 1140 rpm, 60Hz

Fan Motor, 1-1/2 HP, 1140 rpm, 60Hzzoom
