name: Century
manufacturer:
MPN:
Description:

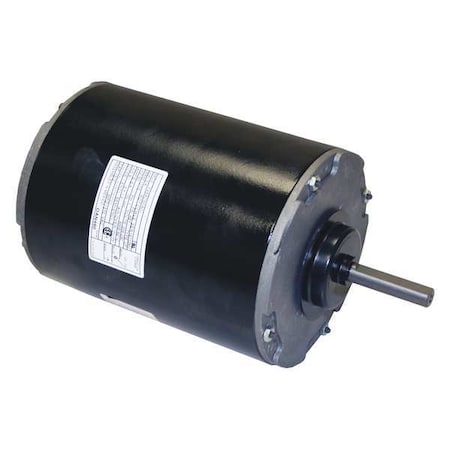

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 5.4, 48Y Frame, OEM Replacement Brand Aaon, Replacement For F48K44A27C, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Band
Attributes
| Key ^ | Value |
|---|---|
| Body Dia. | 5.7" |
| Frame | 48Y |
| HP | 3/4 HP |
| Item | Motor |
| Length Less Shaft | 8 3/8 in |
| Manufacturers Warranty Length | 1 yr. |
| Motor Application | OEM Replacement |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Semi Enclosed |
| Motor Mounting Type | Round Belly Band |
| Motor Shaft Rotation | Counterclockwise Lead End |
| Motor Sub Application | Condenser Fan Motor |
| Motor Thermal Protection | Automatic |
| Nameplate RPM | 1075 rpm |
| No. of Speeds, Number of Shafts, Phase | 1 |
| OEM Replacement Brand | Aaon |
| Overall Length | 10.24" |
| RPM Range | 1001-1100 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1-7/8" |
| Voltage | 208-230V |
