Description:

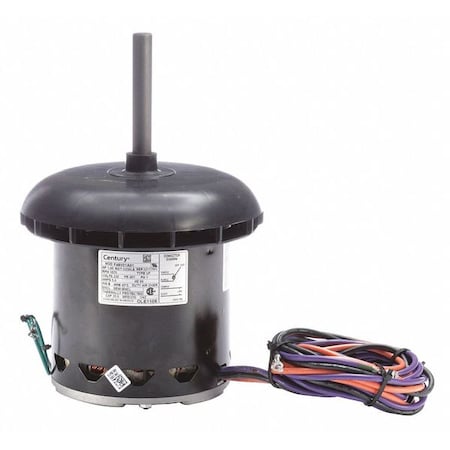

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 230V AC, Full Load Amps 5.0, 48Y Frame, OEM Replacement Brand Lennox, Replacement For 88C7401, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band, Motor Mounting Position Vertical Shaft Up
Attributes
| Key ^ | Value |
|---|---|
| Body Dia. | 5.70" |
| Frame | 48Y |
| HP | 1 HP |
| Item | Motor |
| Length Less Shaft | 6 7/8 in |
| Manufacturers Warranty Length | 1 yr. |
| Motor Application | OEM Replacement |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Semi Enclosed |
| Motor Mounting Type | Round Belly Band |
| Motor Shaft Rotation | Counterclockwise Lead End |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Automatic |
| Nameplate RPM | 1075 rpm |
| No. of Speeds, Number of Shafts, Phase | 1 |
| OEM Replacement Brand | Lennox |
| Overall Length | 10.86" |
| RPM Range | 1001-1100 |
| Shaft Dia. | 1/2" |
| Shaft Length | 3-5/8" |
| Voltage | 230V |
