A. O. Smith XEL2014

B0042G70R4

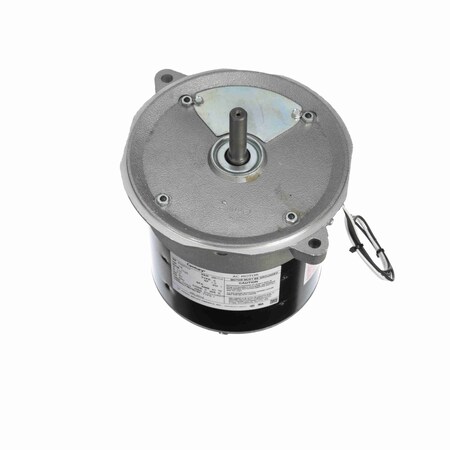

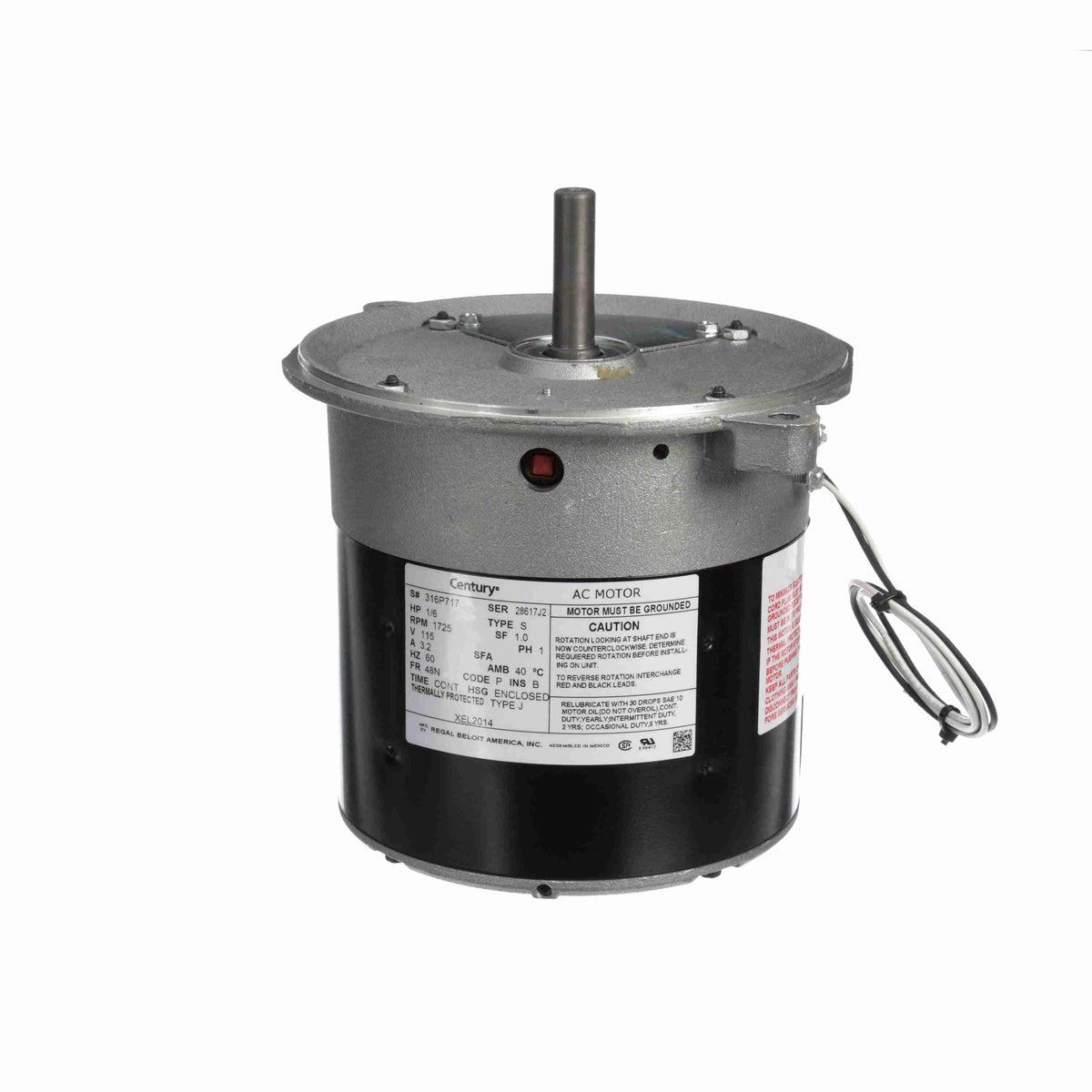

A.O. Smith XEL2014 1/6 HP 115 Volt 1725 RPM Oil Burner Motor XEL2014

A.O. Smith XEL2014 1/6 HP 115 Volt 1725 RPM Oil Burner Motor XEL2014zoom

Attributes

Key Value
Amps3.2
Batteries Included?No
Batteries Required?No
BearingsSleeve
Best Sellers Rank#505,383 in Tools & Hom.
BrandCentury
C-Dimemsion7.66 (in.)
Catalog NumberXEL2014
CategoryElectric Motor
CEN
CertificationNEMA
Country of Origin (subj.Mexico
CSAN
Customer Reviews4.5 out of 5 stars7 rat.
Date First AvailableAugust 22, 2011
DE Bearing TypeSleeve
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Electrical TypeSplit Phase
EnclosureTE, TEAO
Enclosure TypeTEAO (Totally Enclosed .
Frame48N
Frame MaterialRolled Steel
Frame Type48N
Frequency60
HP1/6, 0.167
Hz60
Insulation ClassB
IP Code-
Is Discontinued By Manu.No
ItemOil Burner Motor
Item ConditionFACTORY NEW
Item model numberXEL2014
Item Package Quantity1
Item Weight12.7 pounds
KVA Code-
ManufacturerCentury Electric/AO Smi.
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Orientation-
MountingFlange
mounting**N
Mounting TypeN
Number of Speeds1
ODE Bearing TypeSleeve
Part NumberXEL2014
Phase1
Product CategoryHVAC/R Motors > Defini.
Product Dimensions10.5 x 7 x 7 inches
Product TypeSplit Phase
Product with faster shi.true
RotationReversible
RPM1725, 1800
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1
Service Factor (SF)1.00
Shaft Diameter1/2 (in.), 1/2"
Shaft Extension1.82 (in.)
Shaft TypeFlat
Ship Weight14 lbs.
Shippingundefined (Fixed Shippi.
Speeds1
Thermal ProtectionManual
Type of Overload Protec.Manual
ULNo
Voltage115
Volts115
XEL2014 is listed in Ce.A.O. Smith 325P526, A.O.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Global IndustrialB18609093.951In StockCentury93.95 @ 1
thumbzoomVoomi SupplyXEL2014162.651In StockCentury Motors162.65 @ 1
thumbzoomcshincorporated.comXEL2014166.061In StockAO Smith / Century14.0166.06 @ 1
thumbzoomemotorpro.comXEL2014166.551In StockCentury14.0166.55 @ 1
thumbzoommidwestapplianceparts.comXEL2014-AO-P179.7911AO Smith179.79 @ 1
thumbzoomhomeessentialsdirect.comXEL2014192.191In StockCentury Electric/AO Smith Motors Co12.7192.19 @ 1
thumbzoomDealers ElectricXEL2014201.521In StockCentury13.0201.52 @ 1
thumbzoomDreisilkerCE-RBC-XEL2014213.511In StockCentury213.51 @ 1
thumbzoomMRO Supply5811532215.911In StockCentury215.91 @ 1
thumbzoomnorthstock.comXEL2014224.591In StockCentury Motors224.59 @ 1
hvacdiscountstore.comCEN--XEL2014229.371In StockCENTURY MOTORS229.37 @ 1
thumbzoomNational Supply NetworkB186090234.771In StockAO SMITH234.77 @ 1
thumbzoomsustainablesupply.comC3016906255.681In StockCentury12.0255.68 @ 1
thumbzoomZoroG109244586300.991In StockCentury Motors300.99 @ 1
