Century A.O. Smith B795

B003XNV0MI

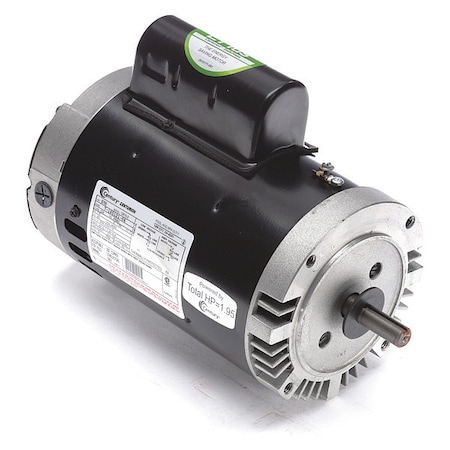

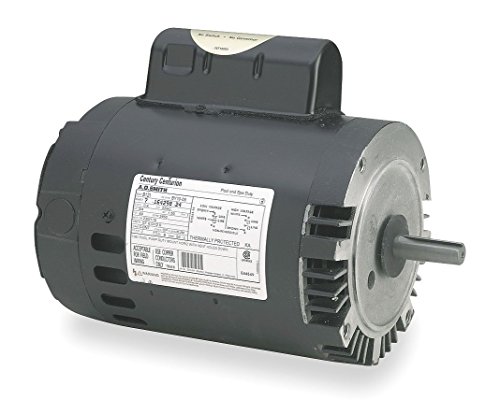

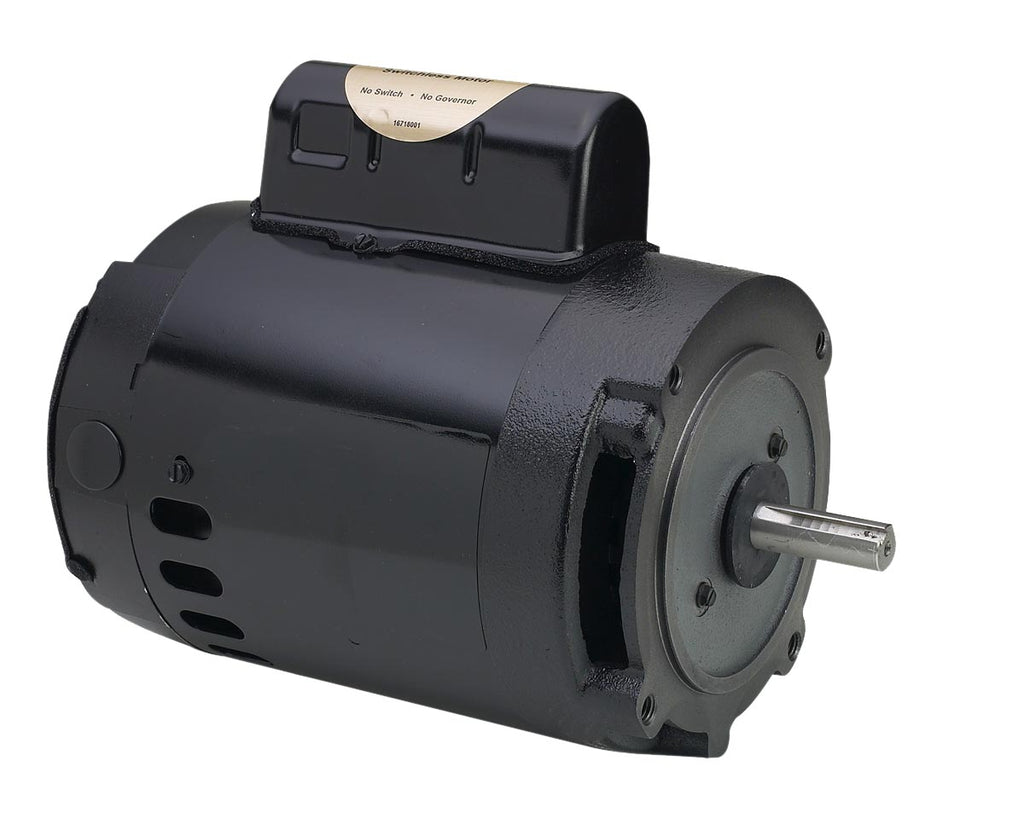

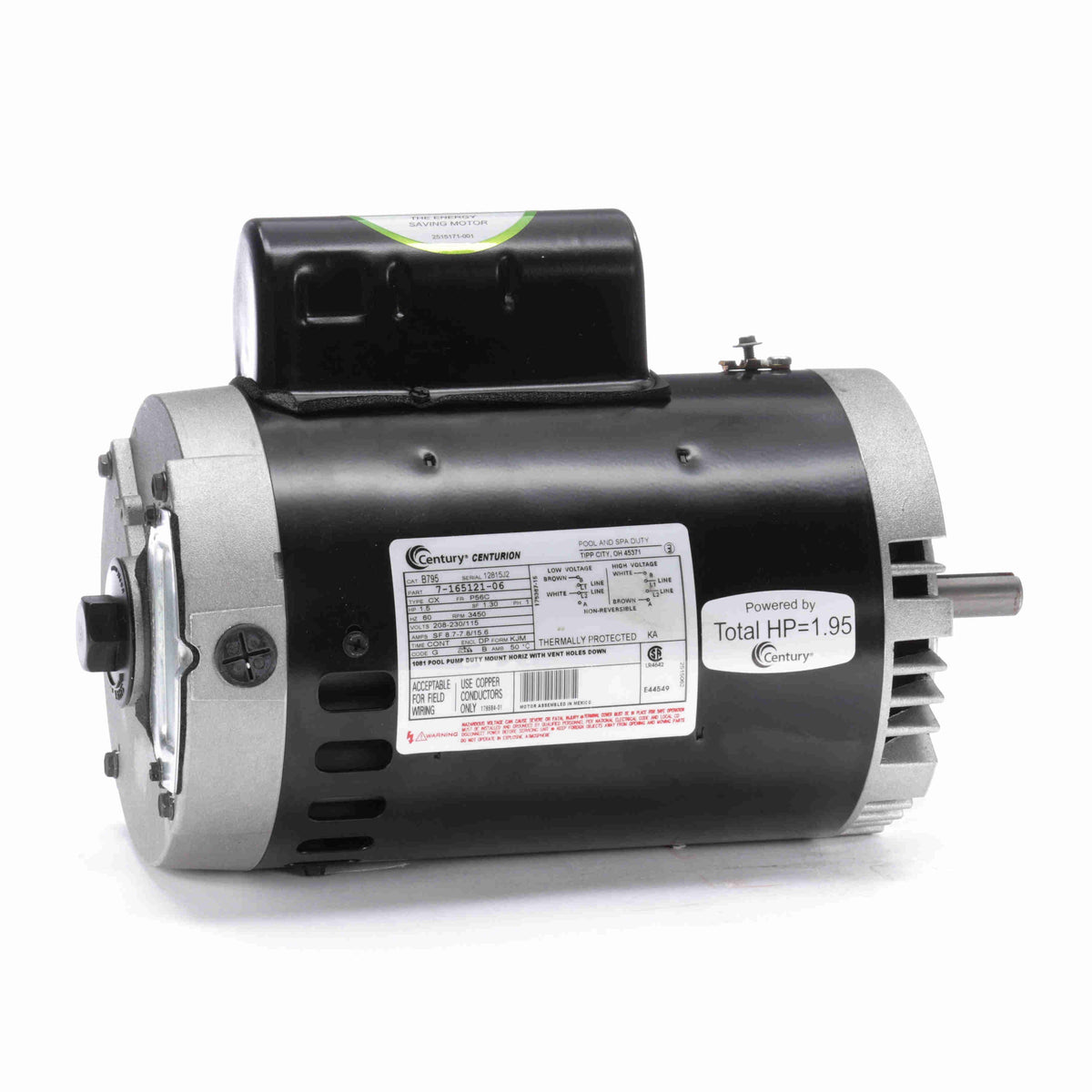

Century A.O. Smith E-Plus 56C C-Face 1-1/2 HP Full Rated Pool and Spa Pump Motor B795

Century A.O. Smith E-Plus 56C C-Face 1-1/2 HP Full Rated Pool and Spa Pump Motor B795zoom

Attributes

Key Value
<span style="color#ff0000;">We cannot shi.
Amps8.7/7.8/15.6
B795 is listed in Centu.A.O. Smith K48M2N107A3,.
BearingsBall
Body Dia.6.5 in
CapacitorIncluded
Duty CycleContinuous
Enclosure TypeODP (Open Dripproof)
Frame56C
Full Load Amps8.7-7.8/15.6
Height11 in
HP1 1/2, 1-1/2
Hz60
Ins. ClassB
Insulation ClassB
ItemPool Pump Motor
Length Less Shaft11 1/8 in
Maximum Ambient Tempera.50? C
Motor DesignPermanent Split Capacit.
Motor Diameter6-1/2"
Motor Enclosure DesignOpen Dripproof
Motor Flange MaterialAluminum
Motor Mounting TypeFace
Motor Service Factor1.3
Motor Shaft RotationCCWSE
MountingC-Face
Nameplate RPM3,450
Number of Speeds1
Overall Length13 3/16 in
Phase1, Single
Product TypePSC (Permanent Split Ca.
RotationCCW Pump End
RPM3450
RPM Range3,001-3,600
Service Factor (SF)1.30
Shaft Dia.5/8 in
Shaft Dia. (In.)5/8
Shaft Diameter5/8" Keyed
Shaft Length2 1/16 in
Shaft MaterialAISI 1215 Steel
Ship Weight32 lbs.
Thermal ProtectionAutomatic
Voltage115/208-230V AC
Voltage Compatibility115/200-230V AC, 115/20.
Volts115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG1370056384.991In StockCentury384.99 @ 1
thumbzoomemotorpro.comB795413.951In StockCentury32.0413.95 @ 1
thumbzoomsustainablesupply.comC2091016436.641In StockCentury15.0436.64 @ 1
thumbzoomRaptor SuppliesAE6ACB712.3553191In StockCENTURY712.355319 @ 1
