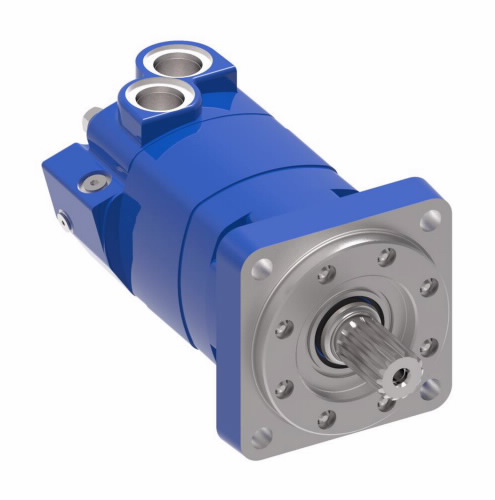

109-1553-006 EATON | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key | Value |
|---|---|
| Application | Other: Mowing, Snow Removal, Sprayer, Trencher, Wood Products |
| Brake type | Hydraulic |
| Case flow options | .4375-20 UNF-2B SAE O-Ring Port With Check Valve |
| Design code11 | 6 |
| Displacement | 109.8 cubic centimetre per revolution |
| Eccn | EAR99 |
| Flow rate12 | 75 litre per minute |
| Front seal kit if available | 9900759-000 |
| Geroler options | Standard |
| Icc2 | Low-Speed Gerotor/Geroler |
| Identification | None |
| Intermittent pressure | 310 bar |
| Low pressure relief | None |
| Maximum speed | 697 revolutions per minute |
| Model Code | M04067AF03AB02000010000000000F |
| Mounting Type | Standard, 4 Bolt; 127.00 [5.000] Pilot Dia 14.27 [.562] Dia.Holes On 161.92 [6.375] Dia. Bolt Circle.(SAE C) |
| Output shaft type | Spline |
| Paint | None |
| Port type | 1.0625-12 UN-2B SAE O-Ring Ports - Staggered Ports |
| Pressure flow option | None |
| Product height | 5.84 |
| Product height uom | inch |
| Product length | 10.95 |
| Product length uom | inch |
| Product material | Cast Iron |
| Product trade name | 4000 Series |
| Product weight | 39.50 |
| Product weight uom | pound |
| Product width | 5.84 |
| Product width uom | inch |
| Recommended system working temperature | -34?C to 82?C |
| Seal options | Viton |
| Shaft options | None |
| Special assembly instructions | None |
| Special features hardware | None |
| Speed sensor | No |
| Sub brand | Char-Lynn |
| Torque | 320 newton metre |
| Two speed ratio | None |
| Valve options | None |
| Viscosity recommendation | 70 Saybold universal second |
