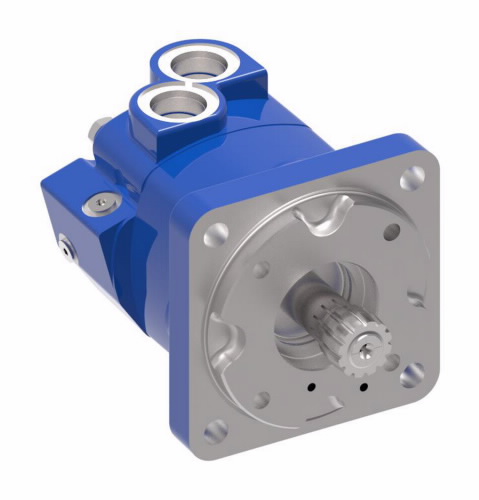

109-1700-006 EATON | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Application | Other: Mowing, Snow Removal, Sprayer, Trencher, Wood Products |
| Brake type, Identification, Low pressure relief, Pressure flow option, Shaft options, Special assembly instructions, Special features hardware, Valve options | None |
| Case flow options | .4375-20 UNF-2B SAE O-Ring Port With Check Valve |
| Complete seal kit if available | 9901230-000 |
| Design code11 | 6 |
| Displacement | 393.9 cubic centimetre per revolution |
| Eccn | EAR99 |
| Flow rate12 | 95 litre per minute |
| Geroler options | Standard |
| Icc2 | Low-Speed Gerotor/Geroler |
| Intermittent pressure | 240 bar |
| Maximum speed | 239 revolutions per minute |
| Model Code | M04240AB03AB0200007000000AA00F |
| Mounting Type | Standard, 4 Bolt; 101.60 [4.000] Pilot Dia. 14.7 [.58] Slots On 127.00 [5.000] Dia. Bolt Circle. (SAE B) |
| Output shaft type | Spline |
| Paint | Primer Low Gloss Black |
| Port type | 1.0625-12 UN-2B SAE O-Ring Ports - Staggered Ports |
| Product height uom, Product length uom, Product width uom | inch |
| Product height, Product width | 4.72 |
| Product length | 12.11 |
| Product material | Cast Iron |
| Product trade name | 4000 Series |
| Product weight | 45.00 |
| Product weight uom | pound |
| Recommended system working temperature | -34?C to 82?C |
| Seal options | Extreme Duty Seal Guard |
| Speed sensor | No |
| Sub brand | Char-Lynn |
| Torque | 930 newton metre |
| Viscosity recommendation | 70 Saybold universal second |
