Description:

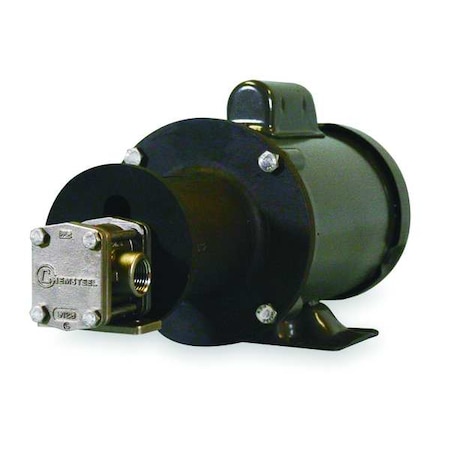

Rotary Gear Pump, Close Coupled, 1/3 hp HP, 1 Phase, Voltage 115/230, 6/3 Amps, Motor Frame 56C, Motor Enclosure TEFC, Port Size (In.) 1/4 in, Suction Lift (Ft.) 1.5 ft, GPM Max. 0.58 gpm, Max. Pressure (PSI) 110 psi, Relief Valve -, Seal PTFE, Type 9T Mechanical with Stainless Steel, Body Material 316 Stainless Steel, Shaft Material 316 Stainless Steel, Temp. Range -, Min. Temp. (F) -50 Degrees F, Max. Temp. (F) 450 Degrees F, Gear Material 316 SS/Alloy 20 Helical, Max. RPM 1,725 RPM
Attributes
| Key ^ | Value |
|---|---|
| Amps | 6/3 |
| Gears | Helical |
| GPM @ 100 PSI | 0.37 gpm |
| GPM @ 40 PSI | 0.48 gpm |
| GPM @ 60 PSI | 0.45 gpm |
| GPM @ 80 PSI | 0.4 gpm |
| GPM @ Freeflow | 0.6 gpm |
| Height (In.) | 6.88 in |
| HP | 1/3 hp |
| Item | Rotary Gear Pump |
| Length (In.) | 16.31 in |
| Manufacturers Warranty Length | 1 yr |
| Max. Pressure (PSI) | 110 psi |
| Max. RPM | 1,725 RPM |
| Max. Temp. (F) | 450 Degrees F |
| Min. Temp. (F) | -50 Degrees F |
| Motor Enclosure | TEFC |
| Phase | 1 |
| Port Size (In.) | 1/4 in |
| Shaft Material | 316 Stainless steel |
| Suction Lift (Ft.) | 1.5 ft |
| Type | Close Coupled |
| Voltage | 115/230 |
| Width (In.) | 6.63 in |
