Chicago Latrobe 41620

B0086A6G90

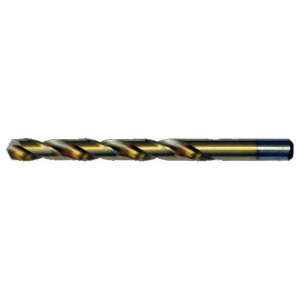

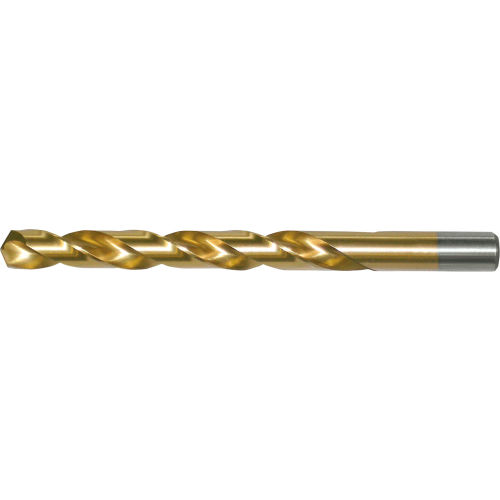

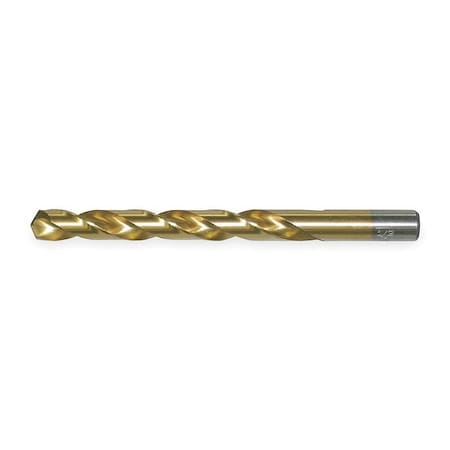

Jobber Bit, 5/16 in, High Speed Steel

Jobber Bit, 5/16 in, High Speed Steelzoom

Attributes

Key Value
Applicable MaterialsAlloy Steel, Cast Iron,.
Brand NameChicago-Latrobe
Coolant FedNon-Coolant Through
Cutting Depth5XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Decimal Equivalent0.3125
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter0.3125"
Diameter (Fraction)5/16"
Drill Bit Dimension TypeFractional Inch
Drill Bit FinishTiN
Drill Bit GroupingDrill Bit
Drill Bit MaterialHigh Speed Steel
Drill Bit Point Angle135 Degrees
Drill Bit Size5/16 in
Drill ConstructionHeavy-Duty
Drill Diameter Measurem.Imperial
Drill Diameter Tolerance+0.0000 in/-0.0010 in
Drill Length ClassJobber Length
Drill Point Length0.0647"
Drill Size - Decimal In.0.3125 in
Drill Size - Fraction5/16 in
Drill Size SystemFractional
Drill StyleJobber Drill
FinishTiN Coated
Flute Length3.1875", 3 3/16 in, 3-3.
Flute Length (Metric)80.96mm
Flute TypeRight Spiral, Spiral
Hand of CutRight
Hand of SpiralRight
ItemJobber Length Drill Bit
Item #41620
MaterialHSS, High Speed Steel
Maximum Drilling Depth2 3/8 in
Number of Flutes2
Number of Pieces1
Overall Lehgth (Metric)114.30mm
Overall Lenght4.5000"
Overall Length4-1/2 in, 4 1/2 in
Point Angle135 deg, 135?
Point StyleSplit
Point TypeSplit
Series150ASP-TN
SetNo
Shank ConfigurationStraight
Shank Dia.5/16 in
Shank Length1 5/16 in, 1.3125"
Shank Length (Metric)33.34mm
Shank Size5/16 in Dia x 1-5/16 in.
Shank Size (Metric)7.94mm
Shank TypeStraight
Style150ASP-TN
Style #150ASP-TN
Surface ConditionTiN
Through Coolant (Yes/No)No
Tool Size5/16"
TypeHeavy Duty

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply61275856.866Chicago-Latrobe6.8 @ 6
thumbzoomMegadepot416206.9116Chicago-Latrobe6.91 @ 6
thumbzoomheavydutydepot.com416206.91156Chicago-Latrobe6.91 @ 15
thumbzoomusmegastore.com416208.0416Chicago-Latrobe8.04 @ 6
thumbzoomZoroG34349259.51334Chicago-Latrobe0.059.5 @ 6
thumbzoombscsource.com4162011.1916Chicago-Latrobe11.19 @ 6
thumbzoomRaptor SuppliesCD2HFE11.3969716CHICAGO-LATROBE11.39697 @ 6
thumbzoomNational Supply Network306078713.89516Chicago-Latrobe13.895 @ 6
thumbzoomGuardian0306078716.5516Chicago-Latrobe16.55 @ 6
thumbzoomGlobal IndustrialWBB254704148.016Chicago-Latrobe48.0 @ 6
