- mpn45778
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

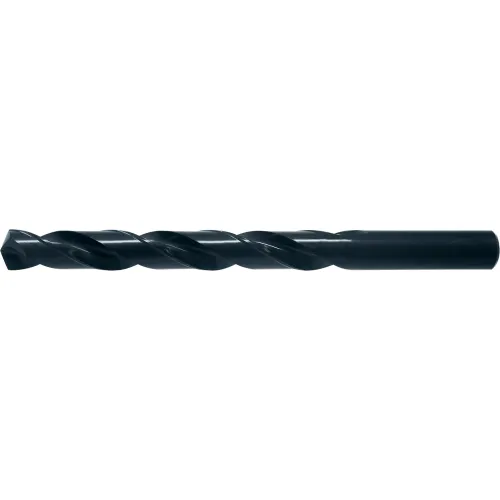

Greenfield 45778 150 A-SP LET-H (45778) (12/Each)
- Brand: Chicago Latrobe
- PartNumber: 45778
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Cast Iron,. |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.2660 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.266, 0.2660" |
| Diameter (Wire/Let) | H |
| Drill Bit Dimension Type | Letter |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | H |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0000 in |
| Drill Size - Decimal In. | 0.266 in |
| Drill Size - Letter | H |
| Drill Size System | Letter |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Flute Length | 2-7/8 in, 2 7/8 in, 2.8. |
| Flute Length (Metric) | 73.02mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 2 5/32 in |
| Measurement System | Imperial |
| Number of Flutes | 2 |
| Overall Length | 4-1/8 in, 4 1/8 in, 4.1. |
| Overall Length (Metric) | 104.77mm |
| Point Angle | 135 deg, 135?, 135 |
| Point Style | Split |
| Point Type | Split |
| Series | 150ASP |
| Shank Configuration | Straight |
| Shank Dia. | 17/64 in |
| Shank Length | 1.2500", 1 1/4 in |
| Shank Length (Metric) | 31.75mm |
| Shank Size | 0.266, 0.266 in Dia x 1. |
| Shank Size (Metric) | 6.76mm |
| Shank Type | Straight |
| Style | 150ASP |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | H |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G3339165 | 3.19 | 1 | 118 | | Chicago-Latrobe | 0.6 | 3.19 @ 12 |
 | MRO Supply | 6128894 | 3.27 | 11 | 12 | | Chicago-Latrobe | | 3.27 @ 12 |
 | Global Industrial | WBB2547615 | 3.56 | 12 | 12 | | Chicago-Latrobe | | 3.56 @ 12 |
 | Megadepot | 45778 | 3.97 | 1 | 12 | | Chicago-Latrobe | | 3.97 @ 12 |
 | usmegastore.com | 45778 | 3.97 | 1 | 12 | | Chicago-Latrobe | | 3.97 @ 12 |
 | heavydutydepot.com | 45778 | 4.0 | 25 | 12 | | Chicago-Latrobe | | 4.0 @ 25 |
 | Raptor Supplies | AA9VKM | 5.318586 | 1 | 12 | | CHICAGO-LATROBE | | 5.318586 @ 12 |
 | bscsource.com | 45778 | 5.39 | 1 | 12 | | Chicago-Latrobe | | 5.39 @ 12 |
 | National Supply Network | 81132086 | 7.8425 | 1 | 12 | | Chicago-Latrobe | | 7.8425 @ 12 |
