- mpn49748
- brandname: CHICAGO-LATROBE
- manufacturername: CHICAGO-LATROBE

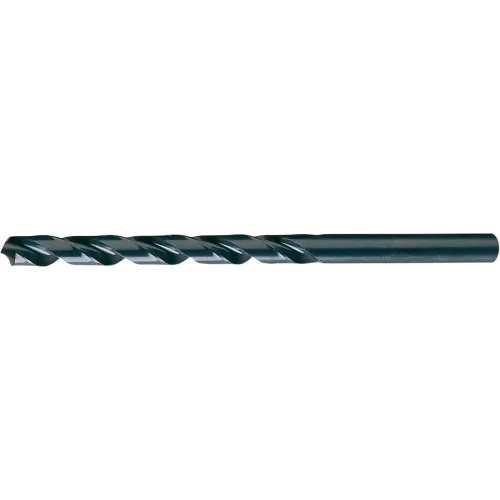

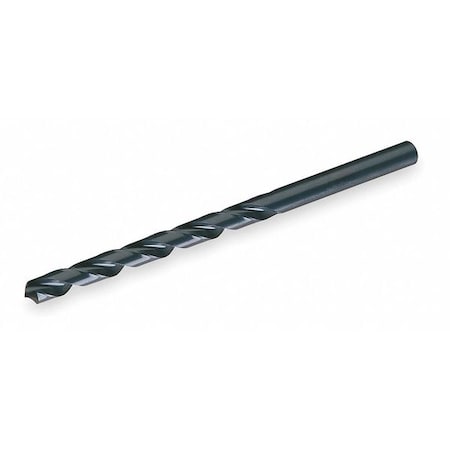

Chicago Latrobe 120 High-Speed Steel Long Length Drill Bit, Black Oxide Finish, Round Shank, 118 Degree Conventional Point, 3/4" Size (Pack of 1)
- Brand: Chicago Latrobe
- PartNumber: 49748
- Model: 49748
- Size: 3/4"
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Applicable Materials | Carbon Steel, Alloy Ste. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 5-7/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.7500 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.7500", 0.75 |
| Diameter (Fraction) | 3/4" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 3/4 in |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Length Class | Taper Length |
| Drill Point Length | 0.2253" |
| Drill Size - Decimal In. | 0.75 in |
| Drill Size - Fraction | 3/4 in |
| Drill Size System | Fractional |
| Drill Style | Taper Length Drill |
| Finish | Black Oxide |
| Flute Length | 5 7/8 in, 5-7/8 in, 5.8. |
| Flute Length (Metric) | 149.22 mm. |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Taper Length Drill Bit |
| Material | HSS |
| Maximum Drilling Depth | 3 in |
| Measurement System | Imperial |
| Number of Flutes | 2 |
| Overall Length | 9.7500", 9 3/4 in, 9-3/. |
| Overall Length (Metric) | 247.65 mm. |
| Point Angle | 118 deg, 118, 118? |
| Point Style | Radial |
| Point Type | Conventional |
| Series | 120 |
| Shank Configuration | Straight |
| Shank Dia. | 3/4 in |
| Shank Length | 3.8750", 3 7/8 in |
| Shank Length (Metric) | 98.42 mm. |
| Shank Size | 0.7500", 3/4 in, 0.75 |
| Shank Size (Metric) | 19.05 mm. |
| Shank Type | Straight |
| SKU | 49748 |
| Style | 120 |
| Surface Condition | Steam Oxide |
| Tool Size | 3/4" |
| Type | General Purpose |
| UPC | 6.62355E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6130500 | 43.87 | 1 | In Stock | | Chicago-Latrobe | | 43.87 @ 1 |
 | Zoro | G2837615 | 47.85 | 1 | 30 | | Chicago-Latrobe | 0.89 | 47.85 @ 1 |
 | Global Industrial | WBB2546229 | 49.95 | 1 | In Stock | | Chicago-Latrobe | | 49.95 @ 1 |
 | Megadepot | 49748 | 54.05 | 1 | In Stock | | Chicago-Latrobe | | 54.05 @ 1 |
 | usmegastore.com | 49748 | 54.05 | 1 | In Stock | | Chicago-Latrobe | | 54.05 @ 1 |
 | heavydutydepot.com | 49748 | 54.51 | 2 | In Stock | | Chicago-Latrobe | | 54.51 @ 2 |
 | bscsource.com | 49748 | 64.99 | 1 | In Stock | | Chicago-Latrobe | | 64.99 @ 1 |
 | sustainablesupply.com | C1464465 | 67.67 | 1 | In Stock | | Chicago-Latrobe | 0.89 | 67.67 @ 1 |
 | National Supply Network | 81400483 | 81.33 | 1 | In Stock | | Chicago-Latrobe | | 81.33 @ 1 |
 | imsbolt.com | 49748 | 109.6 | 1 | In Stock | | CHICAGO-LATROBE | | 109.6 @ 1 |
