- mpn54024
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

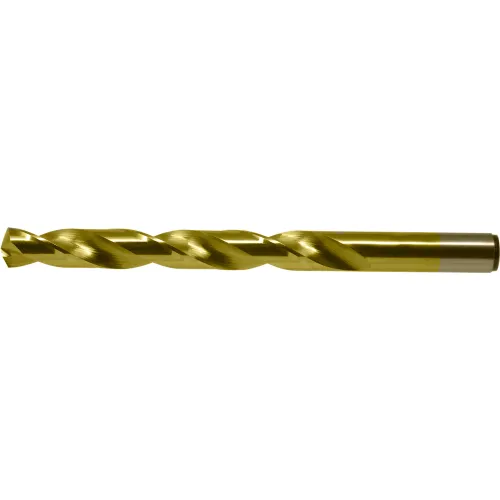

Chicago-Latrobe 54024 550-TN/2550 Heavy Duty Jobber Length Drill Bit, 14 Drill - Wire, 0.182 in Drill - Decimal Inch, 135 deg Point, M42 HSS-Co 8%, TiN Coated (12 Each)
- Brand: Chicago Latrobe
- PartNumber: 54024
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Aircraft Drill | Yes |
| Applicable Materials | Alloy Steel, Tool Steel. |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | Multiple |
| Cutting Depth | 2-3/16 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.1820 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | TiN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Point Type | Split point |
| Drill Bit Size | #14 |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0377 in |
| Drill Size - Decimal In. | 0.182 in |
| Drill Size - Wire | #14 |
| Drill Style | Jobber Drill |
| Finish | TiN Coated |
| Finish - Machining | TiN |
| Flute Length | 2-3/16 in, 2 3/16 in |
| Flute Type | Right Spiral, Spiral |
| Helix Angle | 28 Degrees |
| Item | Jobber Length Drill Bit |
| List Number | 2550 |
| Material | M42 HSS-Co 8%, HSS-CO 8. |
| Material - Machining | Cobalt |
| Material Grade - Machin. | M42 |
| Maximum Drilling Depth | 23/32 in |
| Measurement System | Wire |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 3 3/8 in, 3-3/8 in |
| Point Angle | 135 deg, 135 |
| Point Type | Split point, Split |
| Primary Material Applic. | Stainless Steel, Steel,. |
| Primary Material Applic. | M, P |
| Series | 55TN, 550-TN/2550 |
| Shank Dia. | 11/64 in |
| Shank Length | 1 3/16 in |
| Shank Size | 0.182 in Dia x 1.1875 i. |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | NAS 907 Type J |
| Style | 550-TN |
| Surface Condition | TiN |
| Through Coolant (Yes/No) | No |
| Tool Size | #14 |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6131311 | 5.25 | 7 | In Stock | | Chicago-Latrobe | | 5.25 @ 7 |
 | Global Industrial | WBB2546472 | 5.7 | 12 | In Stock | | Chicago-Latrobe | | 5.7 @ 12 |
 | heavydutydepot.com | 54024 | 5.96 | 17 | In Stock | | Chicago-Latrobe | | 5.96 @ 17 |
 | usmegastore.com | 54024 | 6.11 | 1 | In Stock | | Chicago-Latrobe | | 6.11 @ 1 |
 | Zoro | G3742076 | 6.98 | 1 | In Stock | | Chicago-Latrobe | 0.02 | 6.98 @ 1 |
 | sustainablesupply.com | C1464683 | 8.31 | 1 | In Stock | | Chicago-Latrobe | 0.02 | 8.31 @ 1 |
 | Guardian | 81132532 | 12.91 | 1 | In Stock | | Chicago-Latrobe | | 12.91 @ 1 |
 | National Supply Network | 81132532 | 19.61 | 1 | In Stock | | Chicago-Latrobe | | 19.61 @ 1 |
