| Aircraft Drill | No |
| Application | Non-Ferrous Material, Hardened Material, Stainless Steel And Normally Limited To 2 x Diameter Drilling Depths |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subject to change) | Multiple |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.055 |
| Depth x Dia. Ratio, Depth:Dia. Ratio | 4xD |
| Drill Bit Dimension Type, Measurement System | Wire |
| Drill Bit Finish, Finish - Machining | Bright (Uncoated) |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material, Material | Solid Carbide |
| Drill Bit Point Angle | 140 Degrees |
| Drill Bit Point Type | 4 Facet Point |
| Drill Bit Size, Wire Size | #54 |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
| Drill Length Class | Jobber Length |
| Drill Point (Deg.) | 140 |
| Drill Point Length | 0.01 in |
| Finish | Uncoated |
| Flute Length | 1/2 in |
| Flute Type, Shank Type - Machining | Straight |
| Helix Angle | 40 Degrees |

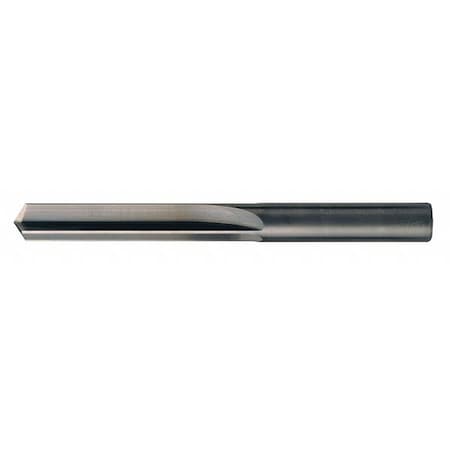

| Item | Straight Flute Drill Bit |
| List Number, Series | 769 |
| Material - Machining | Carbide |
| Maximum Drilling Depth | 3/16 in |
| Number of Flutes | 2 |
| Overall Length | 1 1/2 in |
| Point Type | General Purpose |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Hardened Steel, Stainless Steel |
| Primary Material Application ISO Code | H, M, N |
| Shank Dia. | 3/64 in |
| Shank Length | 1 in |
| Standards | Not Rated |
