Cinch DE9P-II

B00DDDJQAG

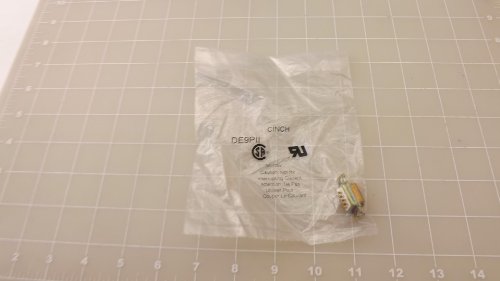

Cinch DE9PII Connector T23904

Cinch DE9PII Connector T23904zoom

Attributes

Key Value
Agency ApprovalsUL ; CSA
Amperage Rating5A
AngleStraight
ApplicationCommercial
Backset Spacing-
Base Product NumberDE9
CategoryConnectors, Interconnec.
ColorWhite
Connector StylePlug, D-Sub
Connector TypePlug, Male Pins, Rectan.
Contact Finish-
Contact Finish ThicknessFlash
Contact FormStamped
Contact MaterialCopper Alloy
Contact Mating Life500
Contact PlatingGold Flash, Gold Over N.
Contact Resistance2.7 mOhms
Contact Size#20
Contact StylePin
Contact TypeSignal
Contacts SuppliedYes
Contacts, # of9
Current Rating5 A
Current Rating (Amps)5A
Dielectric MaterialPolyester, Glass Filled.
Export ClassEAR / EAR99
Features-
Flange FeatureHousing/Shell (Unthread.
Grommet & Seals Mat.Silicone
Housing FinishZinc Chromate
Housing MaterialSteel
Ingress Protection-
Insert Arrangement9
Insert MaterialPolyester
Insulation Resistance5000 MegaOhms
Material Flammability R.UL94 V-0
MfrCinch Connectivity Solu.
Mounting TypeCable or Box - Front Mo.
Number of Contacts9
Number of Positions9
Number of Rows2
Operating Temperature-65 to +125 ?C, -65?C ~.
Operating Temperature &.-67 to +257 (-55 to +12.
Package-
Primary TypeD-Sub
Product StatusActive
RoHSNo
SeriesBasic D Series, BASIC? D
Shell ColorYellow
Shell MaterialSteel
Shell Material, FinishSteel, Yellow Chromate .
Shell PlatingYellow Chromate over Zi.
Shell Size, Connector L.1 (DE, E)
SpecificationMIL-DTL-24308
Strain ReliefStraight/Right Angle
TerminationSolder, Solder Cup
Termination MethodSolder
TypeCable Plug
Voltage Rating-
Weight (g)7.16000
Weight (lbs)0.01579
Wire Gauge-
Wire Size20 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
PEI-GenesisDE9PII0.3818073Cinch Connector Div.0.38 @ 1
us.rs-online.com700395916.211In StockCinch6.21 @ 1
Digi-Key562218014.561In StockCinch Connectivity Solutions14.56 @ 1
Newark84J361523.082101CINCH CONNECTIVITY SOLUTIONS23.08 @ 1
