Climax Metal C801M-030

mpnC801M-030
brandname: Climax Metal
manufacturername: Climax Metal

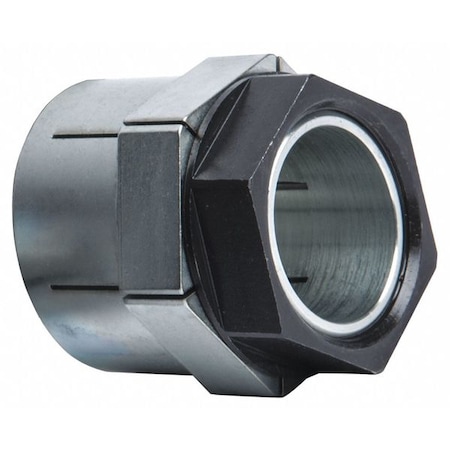

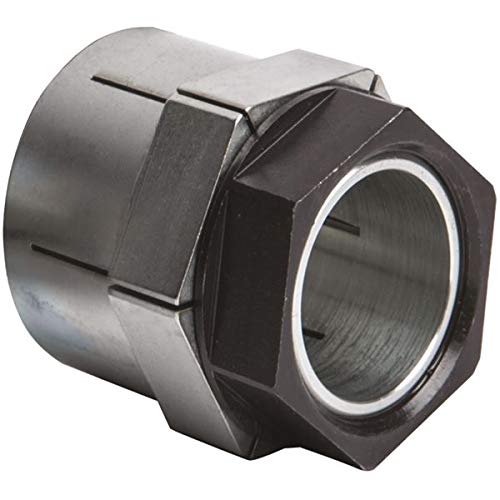

Lock Assy,C801M,30mm Dia,51mm OD

Lock Assy,C801M,30mm Dia,51mm OD

zoom

Brand: Climax Metal
PartNumber: C801M-030
Manufacturer: CLIMAX METAL PRODUCTS
Label: CLIMAX METAL PRODUCTS

Attributes

Key	Value
A	12.7 mm
A1	14.3 mm
Bolt Size	46mm
Brand	CLIMAX METAL PRODUCTS
Catalog Page	N/A
Country of Origin	Italy
Country of Origin (subj.	Italy
D	51 mm
d	1.181 in
Finish	zinc plated
Flange Type	None, Not Applicable
For Bore Diameter	30 mm
For Shaft Dia. - Bushin.	30 mm
For Shaft Diameter	30 mm
Hub Contact Pressure	17,404 psi
Hub Contact Pressure (P.	17,404
Item	Keyless Bushing
Item?	457L35
Keyless Bushing Series	C801M
Keyless Bushing Type	Single Nut Locking Asse.
L	25.4 mm
L1	57.2 mm
Locking Bolt Quantity	1
Manufacturer Part Number	C801M-030
Material	Steel
Material & Finish	Zinc Plated Steel
Material - Bushings	Steel
Maximum Transmitted Tor.	381 ft-lb
Mfr. Model?	C801M-030
Outside Dia.	51 mm
Outside Dia. (mm)	51
Outside Dia. Tolerance	+0.003 in
Outside Diameter	51 mm
Outside Diameter / For .	51 mm
Outside Diameter Tolera.	+0.003 in
Overall Length	57.2 mm
Overall Length (mm)	57.2
Overall Width	57.2 mm
Package Quantity	1
Screw Thread Size	46mm
Shaft Dia. (mm)	30
Shaft Dia. Tolerance	-0.003 in
Shaft Size	30 mm
SW	46 mm
SW1	50.8 mm
System of Measurement	Metric
Transmissible Thrust (L.	7,650
Transmissible Torque	381 ft-lb
Transmissible Torque (F.	381
Type	Nut Tightening
UNSPSC	31171605
Withstand Temp. (Deg. F)	Up to 400 Degrees F

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Misumi USA	C801M-030	85.27	1	2	17	Climax Metal Products		85.27 @ 2
	Zoro	G4865749	92.15	1	2		Climax Metal Products	1.1	92.15 @ 2
	MRO Supply	2929770	110.0	1	2		Climax Metal		110.0 @ 2
	heavydutydepot.com	C801M-030	115.2	1	2		Climax Metal		115.2 @ 2
	Megadepot	C801M-030	128.3	1	2		Climax Metal		128.3 @ 2
	usmegastore.com	C801M-030	134.3	1	2		Climax Metal		134.3 @ 2
	Grainger	457L35	172.97	1	2		CLIMAX METAL PRODUCTS		172.97 @ 2
	AmazonTP	B07VSP37MW	209.1	1	2	10	Climax Metal		209.1 @ 2
