Climax Metals C123M-55X85

B01I37P3JY

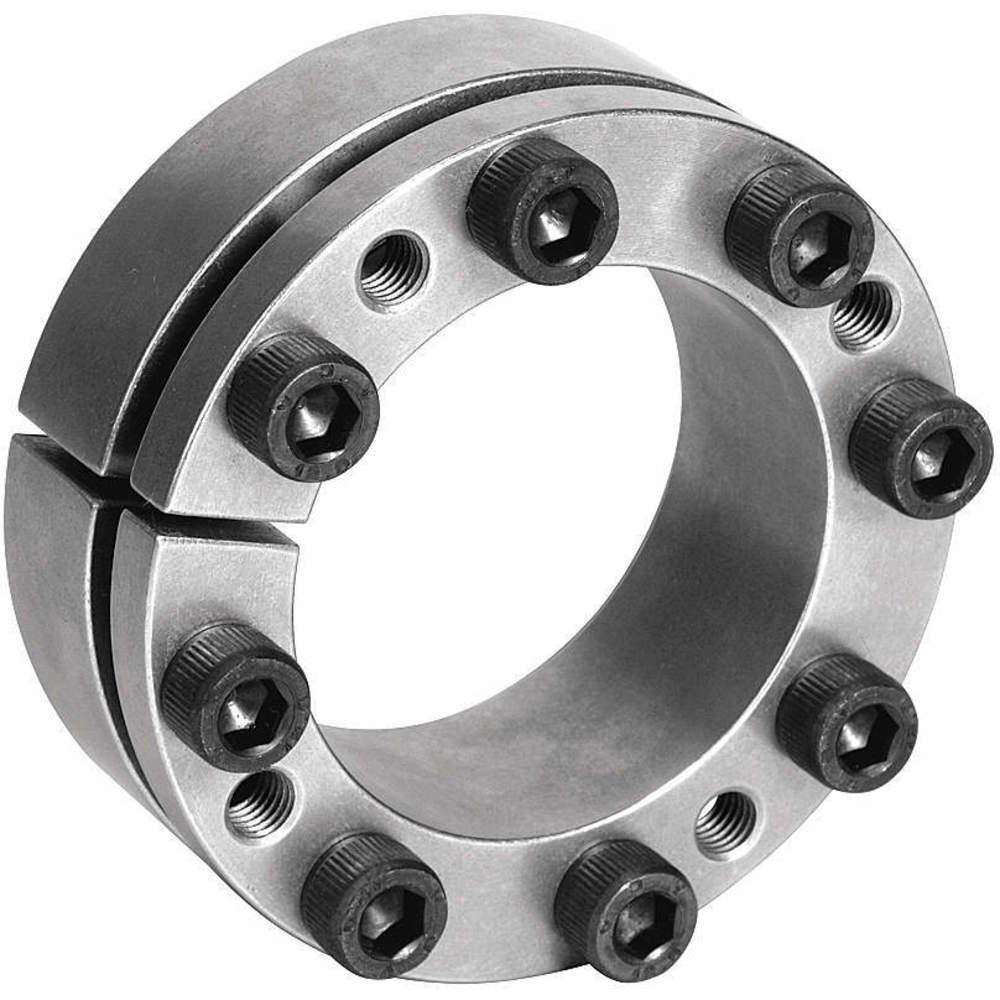

Climax Metals C123M-55X85 Series 123 Locking Assembly, Steel, 2.17" ID, 1.61" Width, 55 mm Shaft Diameter

Climax Metals C123M-55X85 Series 123 Locking Assembly, Steel, 2.17" ID, 1.61" Width, 55 mm Shaft Diameterzoom

Attributes

Key Value
Agency ComplianceROHS
Bolt SizeM8 x 25
BrandCLIMAX METAL PRODUCTS
Catalog PageN/A
Country of OriginItaly
Country of Origin (subj.Italy
D3.346 in
d2.165 in
FinishOil Dipped
Flange TypeNone, Not Applicable
For Bore Diameter55 mm
For Shaft Dia. - Bushin.55 mm
For Shaft Diameter55 mm
Hub Contact Pressure28,813.838 psi
Hub Contact Pressure (P.28,813.838
Hub Machining Tolerance+.002 in
ItemKeyless Bushing
Item Weight1.80 lb
Item?38AT05
Keyless Bushing SeriesC123M
Keyless Bushing TypeMulti-Screw Locking Ass.
L0.787 in
L11.043 in
L21.358 in
L31.673 in
Locking Bolt Quantity8
Locking Screws Quantity8
Locking Screws SizeM8 x 25
Manufacturer Part NumberC123M-55X85
MaterialSteel
Material & FinishOil Dipped Steel
Material - BushingsSteel
Maximum Transmitted Tor.139 ft-lb
Mfr. Model?C123M-55X85
Outside Dia.85 mm
Outside Dia. (In.)3.346
Outside Dia. (mm)85
Outside Dia. Tolerance+0/-.002 in
Outside Diameter85 mm
Outside Diameter / For .85 mm
Outside Diameter Tolera.+0/-.002 in
Overall Length42.5 mm
Overall Length (In.)1.673
Overall Length (mm)42.5
Overall Width42.5 mm
Package Quantity1
Screw Thread SizeM8 x 25
Shaft Dia. (In.)2.165
Shaft Dia. (mm)55
Shaft Dia. Tolerance+0/-.002 in
Shaft Machining Toleran.-.002 in
Shaft Size55 mm
StandardsROHS
System of MeasurementMetric
Transmissible Thrust (L.18,520.704
Transmissible Torque139 ft-lb
Transmissible Torque (F.139
TypeC123M Series
UNSPSC31171605
UPC Code044861074749
Withstand Temp. (Deg. F)Up to 400 Degrees F

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG021127049.01In StockClimax Metal Products1.849.0 @ 1
thumbzoomMRO Supply74630269.01In StockClimax Metal69.0 @ 1
thumbzoomMegadepotC123M-55X8572.121In StockClimax Metal1.872.12 @ 1
thumbzoomheavydutydepot.comC123M-55X8572.122In StockClimax Metal72.12 @ 2
thumbzoomusmegastore.comC123M-55X8575.521In StockClimax Metal1.875.52 @ 1
Grainger38AT0599.661In StockCLIMAX METAL PRODUCTS99.66 @ 1
thumbzoomRaptor SuppliesAH7RAQ108.21534751In StockCLIMAX METAL PRODUCTS108.2153475 @ 1
thumbzoombscsource.comC123M55X85122.491In StockClimax Metal Products122.49 @ 1
thumbzoomNational Supply Network51320612133.221In StockClimax Metal Products133.22 @ 1
thumbzoomGuardian51320612146.451In StockClimax Metal Products146.45 @ 1
motionindustries.com02771809162.691In StockClimax Metal Products162.69 @ 1
